ProFollow 330

Model: SI-181 ProFollow 330

The ProFollow 330 is a professional high output long throw follow spot featuring the included OSRAM SIRIUS 330W 7000K lamp, 1500 hours average lamp life, 15000 total lumens, 13000LUX@15m (4°) and high CRI(Ra≧86). The functions include 4°-8°manual zoom, 5 dichroic colors plus white, mechanical dimming, manual focus, IRIS and shutter. The fixture will come with a pro stand with 60° manually adjusting angle. The optimum throw range is 15m-50m.

The ProFollow 330 is applicable for large scale live concert, theatre, TV studio, high end wedding, etc.

1*OSRAM SIRIUS 330W 7000K lamp
1500 Hours average lamp life and low power consumption (Lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (On-Off cycling), control, and dimming)
15000 Total lumens, 13000LUX@15m/4°
Color Rendering Index(CRI): Ra≥86
Optimized high definition optical system for improved photometric performance and field uniformity
Projector-quality, high contrast aspheric lens
Manual zoom system from 4°-8°
Flat and even spot image
Smooth manual focus system with focus knob at the side
Beam edge continually adjustable hard-to-soft
Smooth and precise manual mechanical dimming
Friendly manual IRIS system
Manual shutter system

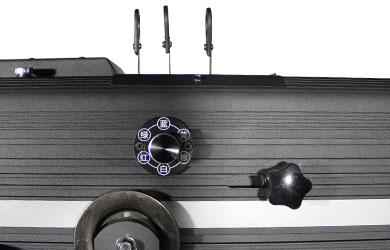

Color changer with 5 dichroic colors plus white (not including color filters)
3200K-6500K Color temperature adjustment

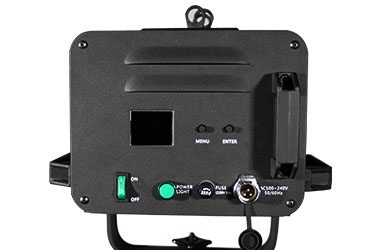

2” TFT LCD display to show usage time, lamp replacement warning, language selection, full power/half power usage information
Highly efficient low noise multi-zone cooling of lamp house and oversized lamp holder heat-sinks for maximum reliability and durability
Strong sheet metal construction for durability
Friendly wrap-around handle with comfort, safety and practicality from all operating positions
Moving parts on top for easy access to all parts for cleaning and maintenance
Fast locking parts for easy lamp assembly and replacement

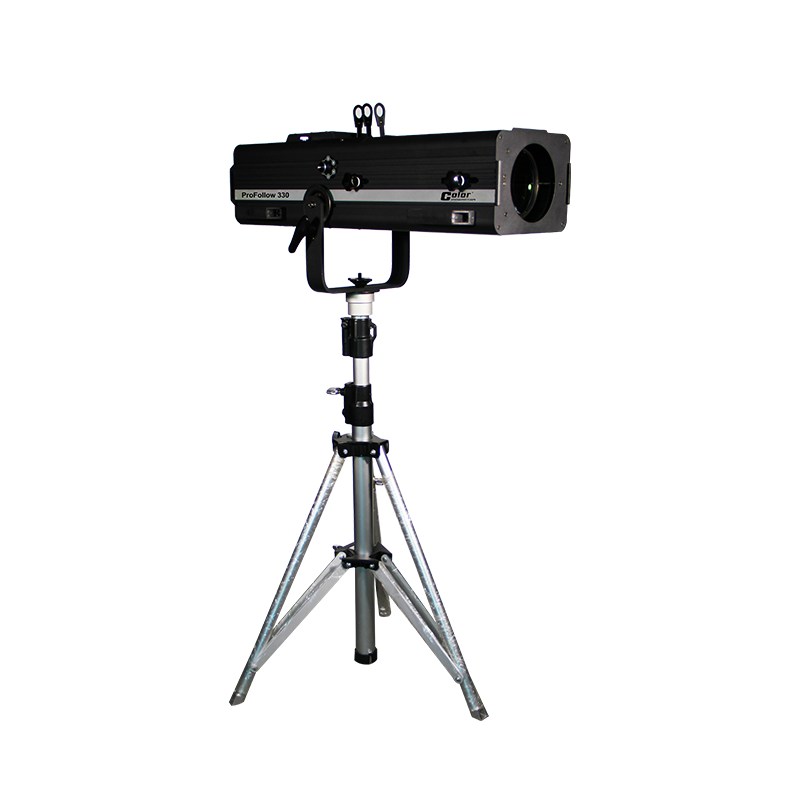

Pro stand included, with 60° manually adjusting angle and height adjustable
Power switch available with fuse
-20-45℃ Max ambient temperature
IP20 protection rating

ProFollow 330 Specs
Input Voltage: AC100-240V 50/60Hz
LED Quantities:1*OSRAM SIRIUS 330W 7000K lamp
Rated Power: 2500W
Dimensions:840(D)*336(W)*212(H)mm
Net Weight: 15kg

Packing Specs
Wooden Packing
Packing Dimensions: 1150(D)*580(W)*550(H)mm (Wooden packing)
Wooden Packing Weight:
Gross Weight:

Flight Case Packing
Packing Dimensions: 332(D)*832(W)*345(H)mm
Flight Case Weight:
Gross Weight: kg
