DOTZOOM 60F

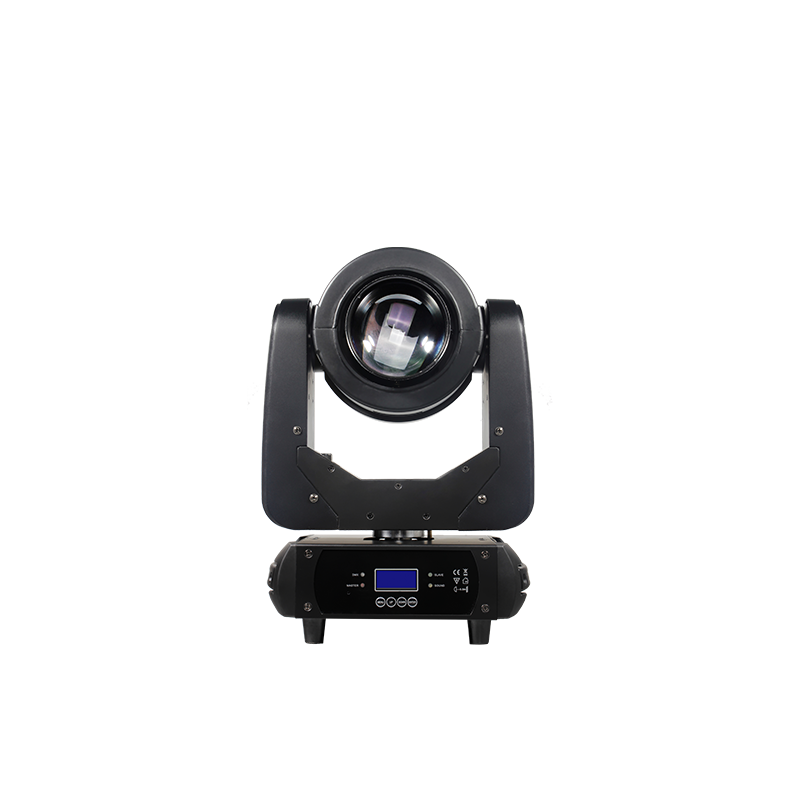

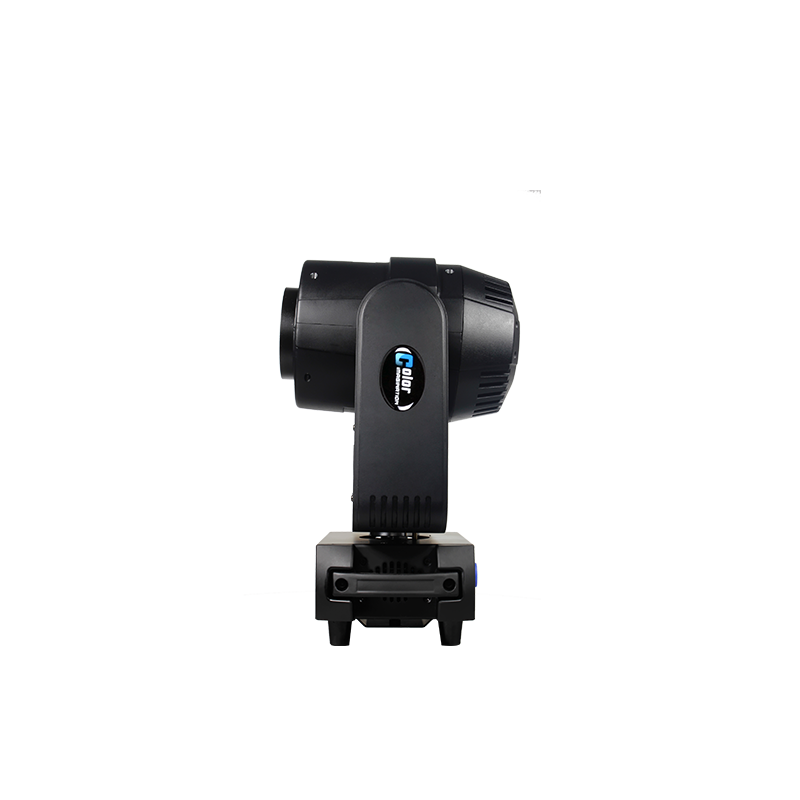

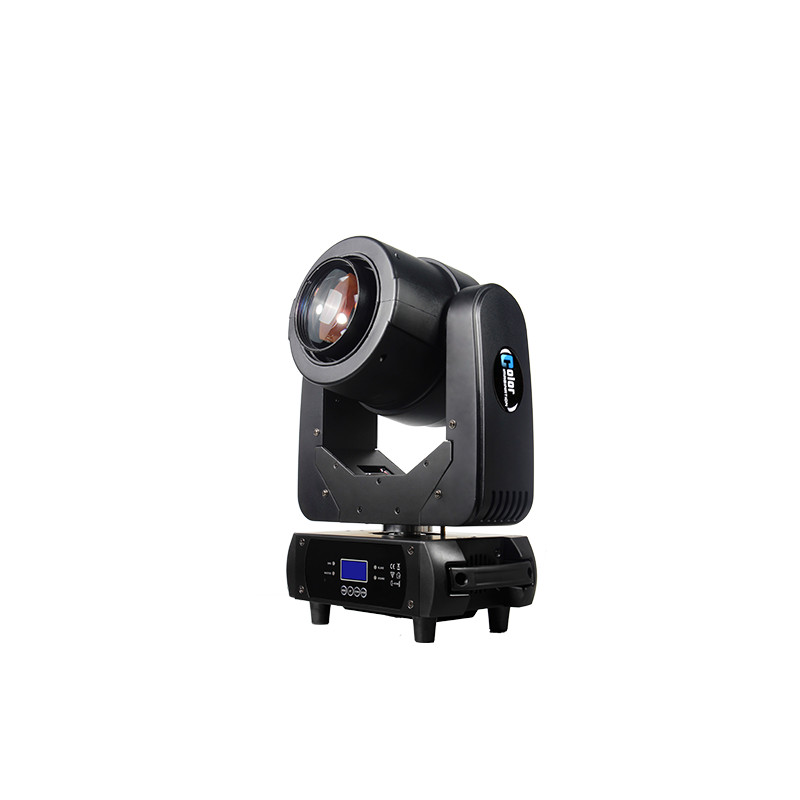

Model: SI-166 DOTZOOM 60F

The DOTZOOM 60F is an innovative LED BEAMWASH moving head with infinite (continuous) PAN/TILT movements that provides new dynamic function to the stage. It uses a single 60W OSRAM LE RTDUW S2WP 4-in-1 LED source (RGBW) with a specially designed high resolution 110mm wide front glass lens. The lightweight and compact fixture features a smooth but fast zoom from 2.5°-35°producing solid beam (both soft edge with a frost filter and sharp edge) and even wash effect. There is another unique feature, Flower Effect, that creates sharp multicoloured spikes of light, rotating in both directions at variable speed. Additionally, each SPOT in the flower is able to rotate in both directions which helps to bring much nicer effect to this fixture. It also features a wide angle 8-facet prism with bi-directional rotation capability producing the beam into a dynamic ray of eight narrow beams, creating another new visual effect to the show. The DOTZOOM 60F is with remarkable even and pure color mixing advantage. Also, it’s available for smooth linear dimmer, different kinds of strobe effect, etc.

The DOTZOOM 60F could be used in small scale live concerts, TV studios, video productions, road shows, mobile DJ, clubs, disco, etc.

Light Source
Source: LE RTDUW S2WP 60W RGBW LED
900lm(fixture)
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics

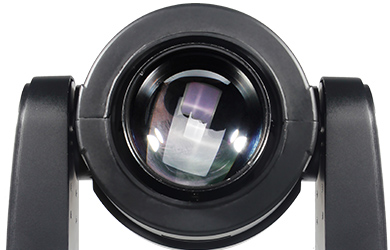

110 mm High efficiency glass lens for greater performance
Optimized light pipe for higher LED efficiency
2.5°-35°Smooth and quiet linear motorized zoom with fine control
2.5°-35°Flower effect mode
4°-35°Wash mode
Movement
PAN movement: 360°continuous rotation (8/16 bit)
PAN movement: 360°continuous rotation (8/16 bit)
Fast, quiet, smooth and precise 2-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible
Colors
Sophisticated 4 colors RGBW mixed
Strong beam effect
Even and soft light coverage with pure mixing
Effect
Flower effect creating spectacular stunning effects in the air (clear image at 30°)
Each spot (square four color) in the FLOWER rotatable creating even nicer effect
8-Facet linear prism with variable speed and direction
Prism indexable
Frost filter

Strobe Effect
1-25T/sec high speed shutter/strobe effect with variable speed
Random strobe effect with variable speed
Preset pulse strobe effect
Dimming System
0-100% Smooth linear LED dimming with fine control
Control System
16/18 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
Sound control sensitivity adjustable
8 Preset internal programs
DMX recorder and edit function integrated
Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT
Display System

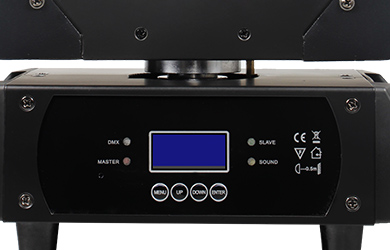

LCD display
English/Chinese menu
4 control buttons
Display OFF in 60 seconds
Cooling System
Advanced cooling system integrated aluminum and copper with liquid
Efficient low noise self adjusting fan cooling system
Over temperature protection management (output decreased when over heat)
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz

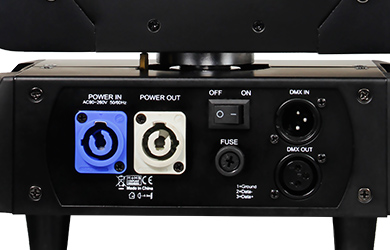

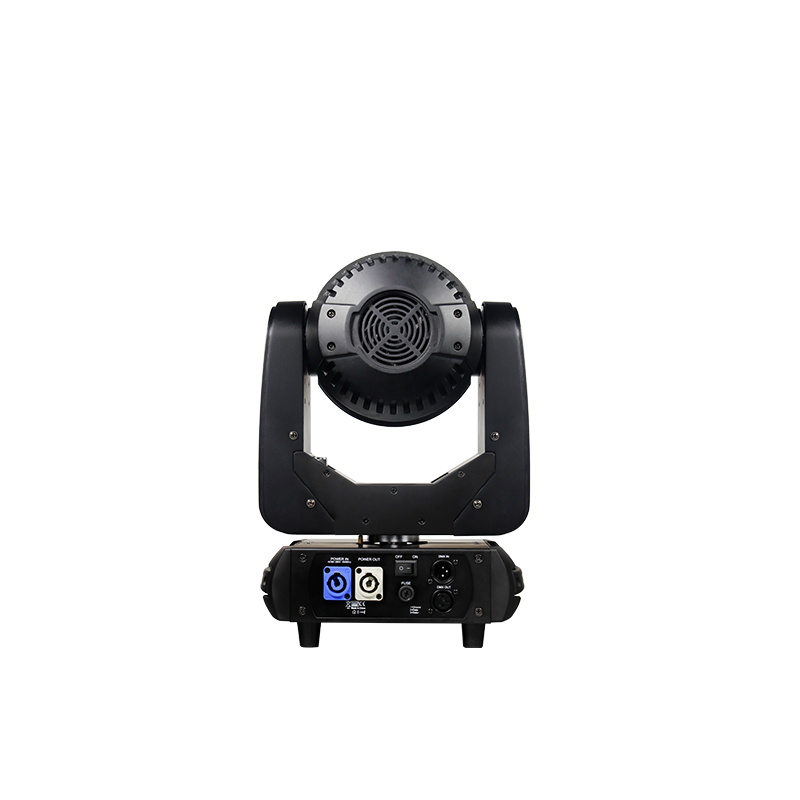

PowerCON IN/OUT with swtich and fuse
90W Power consumption

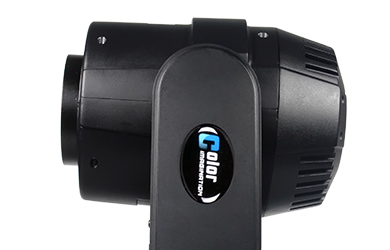

Housing
Moulded fire proof ABS PC
Skeleton made of aluminum and steel metal plates

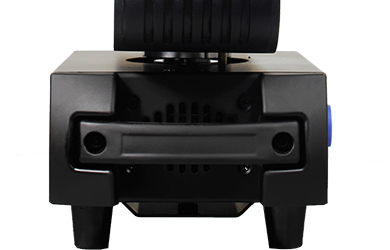

Two side handles on base
Exterior finish: Black (white optional)
Installation
1*Specific hanging system
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 8.4kg
G.W.: 10.5kg
Dimensions

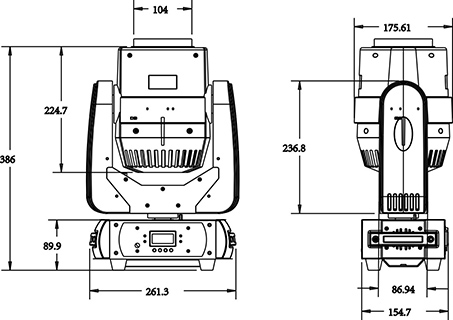

Product Dimensions: 176(D)*262(W)*386(H)mm
Packing Dimensions: 190(D)*260(W)*330(H)mm

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 1*60W OSRAM LE RTDUW S2WP 4-in-1 LED
Control Signal: DMX512,master-slave and sound activated or auto operation
Control Channel: 16/18 DMX Channels USITT DMX-512
Power Consumption: 165W
Dimensions: 176(D)*262(W)*386(H)mm
Packing Dimensions: 350(D)*465(W)*390(H)mm
Net Weight: 8.64kg
Gross Weight: 10.80kg
