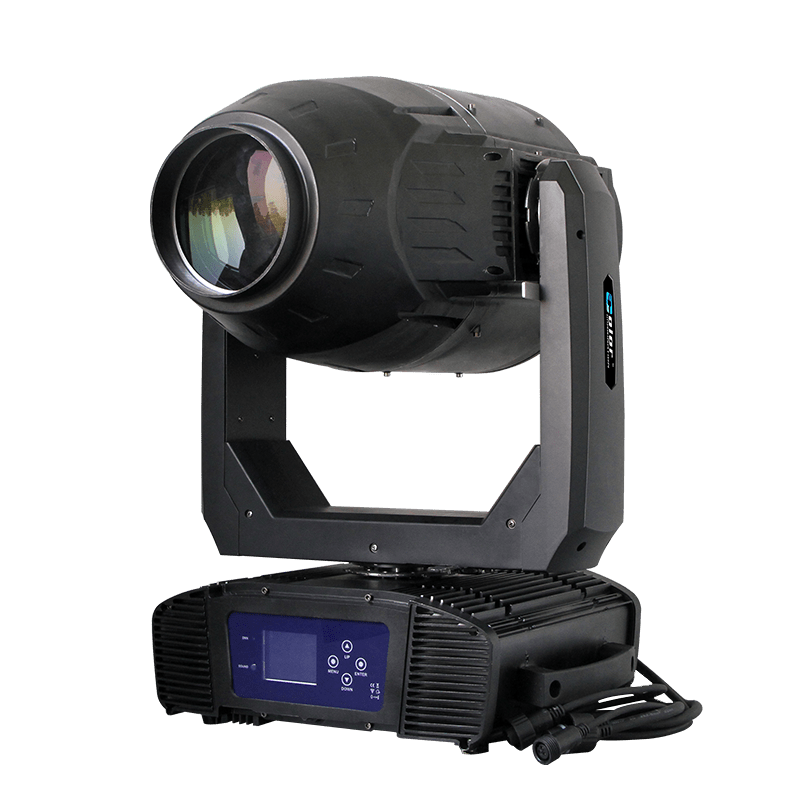

Model: SI-176B IP3500

Today more and more moving heads are being exposed to wet, humid and extreme conditions. With numerous multi-environmental application requirements, Color Imagination recently launched an IP65 rated hybrid moving head with CMY+CTO system which integrates BEAM, SPOT and WASH in one fixture, featuring linear zoom ranging from 2°to 50°. The OSRAM SIRIUS HRI 371W pro lamp delivers high lumen through a 175mm high definition optic lens that brings incredibly ultra brightness and sharp beam effect with even and clear spot image.

As structure is perfectly designed with ultimate heat sink system, the IP3710T will keep itself in excellent performance in all functions even though in raining, dirty, sandy or water environment. There will be no accumulation of dust or external impact on inside components like optics, gobos, color filters or the light source. And there will be no smoke fluid or humidity gathering inside.

The IP3710T offers a full complement of professional characteristics, including animation wheel, rotating gobo wheel, static gobo wheel, color wheel, 16-facet prism, 8+16-facet prism, frost filter, motorized linear focus, motorized ZOOM, variable speed shutter/strobe; and mechanical dimmer, etc. The fixture supports DMX, RDM (Remote Device Management).

The IP3710T’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.

IP_16

  • Light Source
  • Source: OSRAM SIRIUS HRI 371W lamp
  • Color Temperature: 7500K
  • 18300lm (source), 11000lm(fixture)
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 1500H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.

  • Optics
  • A set of high resolution and precise optics
  • 175mm front glass lenses
  • 2°-50°Smooth and quiet linear motorized zoom
  • Zoom reversible
  • 2.5M-15M electric focus

  • Movement
  • PAN movement: 540°/630°/ 360°optional (8/16 bit)
  • PAN movement: 270°/180°/90°optional (8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase motors
  • Magnet encoding wheel integrated with motor
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT time controllable
  • PAN/TILT reversible

  • Color System
  • Full CMY color mixing system with linear CTO color correction
  • 1 Color wheel with 13 dichroic colors plus open (half color mode available)
  • Variable direction rainbow effect with speed adjustable
  • Color time controllable

  • Gobo System
  • 1 Rotating gobo wheel with 8 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
  • Gobo indexing available
  • Gobo size 28mm (external)/22mm (inner)
  • 1 Static gobo wheel with 11 gobos plus open
  • Gobo overlay (gobo morphing)
  • Gobo time controllable

  • Animation System
  • Animation wheel (interchangeable with fixed gobo wheel)
  • Special dynamic flame or water effect, etc

  • Prism System
  • 16-Facet prism with variable speed and direction
  • 8+16-Facet linear prism with variable speed and direction
  • Prism morphing effect
  • Prism wheel fine control

  • Strobe Effect
  • 20T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe effect with variable speed
  • Dimming System
  • 0-100% Smooth linear mechanichal dimming
  • 4 Dimming curve modes, linear/square law/Inv square law/S-curve
  • 3 Dimming speed, smooth/fast/default

  • Control System
  • 18/24/27 DMX channels USITT DMX-512
  • DMX512, master-slave, or auto operation
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET (Optional)
  • Wireless Solution’s wireless receiver system built-in (Optional
  • Shielded input signal protection for stable signal without interference
  • RJ45 etherCON IN/OUT (Optional with Art-Net)
  • IP rated DMX cables with 3-Pin XLR connectors IN/OUT

  • Wash System
  • Linear frost filter (Hybrid effect for wash)
  • Even and soft coverage

  • Preset Program
  • CMY macros: static/dynamic
  • Prism/gobo macros
  • Animation macros
  • Auto programs

  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain

  • Display System
  • 2.4" Touch screen TFT LCD display
  • 4 control buttons
  • Battery back-up for menu preset
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic ballast: OSRAM PT SIRIUS 370W-Unishape
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • IP rated power cable IN/OUT
  • 560W Power consumption
  • Housing
  • Die-cast aluminum housing with moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)
  • Friendly PAN/TILT locks for better fixture protection

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point
  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 37kg
  • G.W.: 42kg

  • Dimensions
  • Product Dimensions:341.5(D)*446.2(W)*807.6(H)mm
  • Packing Dimensions:545(D)*650(W)*1010(H)mm


  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
