Model: SI-222 MAGICZOOM 740FP

The MAGICZOOM 740FP is an ultra high power LED based moving head wash with smart and compact stylish fireproof housing with a smooth, fast and quiet motorized zoom from 5°-62°range. It features 7*40W OSRAM 4-in-1 RGBW LED sources with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The MAGICZOOM is flicker-free fixture with even, soft edge and pure color mixing coverage. It provides 10 kinds of variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns, kinds of pre-programming linear color temperature adjustment options, and Tungsten lamp simulation to it’s users for easy operation. It also comes with incredibly fast and smooth PAN/TILT movement, simple and complex DMX channel profiles. The 2*1/4 turn  fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It provides friendly PAN/TILT locks for safety during transportation.

The MAGICZOOM 740FP supports DMX, RDM (Remote Device Management). Art-Net protocol and Wireless Solution wireless system built-in are optional.

The fixture is tuned with proper LED refresh rate and gamma brightness for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.


  • Light Source
  • Source: OSRAM LE RTDUW S2WN 40W LED
  • 4800lm output
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

  • Optics
  • 7PCS high efficiency acrylic lens
  • Optimized light pipe for higher LED efficiency
  • 5°-62°Smooth and quiet linear motorized zoom with fine control

  • Movement
  • PAN movement: 630°/540°/360°optional (8/16 bit)
  • PAN movement: 270°/180°/90°optional (8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible

  • Colors
  • Pixel mapping capability with each LEDs controllable individually
  • Sophisticated 4 colors RGBW mixed
  • Even and soft light coverage with pure mixing
  • Preset color macros
  • 2800K-3200K virtual tungsten lamp simulation
  • 3200K-8000K linear color temperature adjustment
  • Preset dynamic patterns with variable speed and bi-directional rotation

  • Preset static patterns
  • Preset foreground color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer
  • Preset background color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer

  • Strobe Effect
  • 1-25T/sec high speed shutter/strobe effect with variable speed
  • Random strobe effect with variable speed
  • Preset pulse strobe effect
  • Dimming System
  • 0-100% Smooth linear LED dimming with fine control
  • 2 Dimming speed modes, fast/smooth
  • 4 Dimming curves, linear/square law/Inv. Square law/S curve

  • Control System
  • 19/21/26/44 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound control sensitivity adjustable
  • Multi preset internal programs
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET (optional)
  • Wireless Solution’s wireless receiver system built-in (optional)
  • Shielded input signal protection for stable signal without interference
  • RJ45 etherCON IN/OUT (optional)
  • 3-Pin XLR connectors IN/OUT

  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain

  • Display System
  • 2.4" TFT LCD display
  • English/Chinese menu
  • 4 control buttons
  • Battery back-up for menu preset
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • PowerCON IN/OUT with swtich and fuse
  • 365W Power consumption
  • Housing
  • Moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)
  • Friendly PAN/TILT locks for better fixture protection

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point
  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 10kg
  • G.W.: 13kg

  • Dimensions
  • Product Dimensions: 264.8(D)*346.2(W)*481.3(H)mm
  • Packing Dimensions: 280(D)*490(W)*560(H)mm



SI-222 SIZE
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS



RELATED PRODUCTS

LEDZOOM 1915F

LEDZOOM 1915F

MAGICZOOM 240F

MAGICZOOM 240F

MAGICZOOM 1940FP

MAGICZOOM 1940FP

MAGICZOOM 740FP

MAGICZOOM 740FP

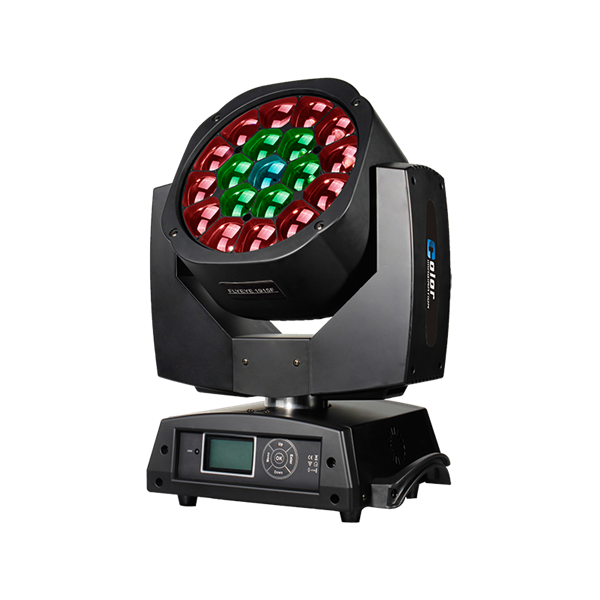

 FLYEYE 1915F
