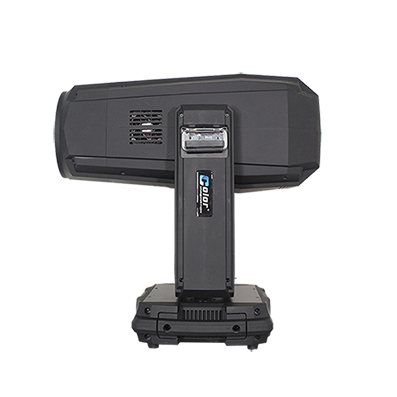

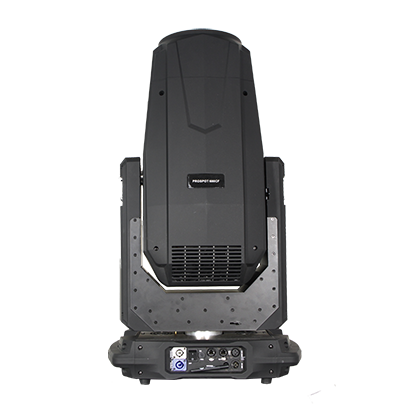

PROSPOT 800CF

Model: SI-245 PROSPOT 800CF

PROFILE+SPOT+BEAM+WASH, CMY+CTO, FRAMING(continuous rotation)+IRIS, ZOOM (5°-50°)

The PROSPOT 800CF is a new generation professional and intelligent LED moving head spot designed with a full CMY color mixing system plus CTO color correction, 8-motor dirven 4-blade framing shutter system with continuous bi-directional rotation, smooth and linear zoom from 5°-50°, fast and smooth linear IRIS system. The SPOT features a new high intensity and efficiency cool white 800W LED engine (8000K) delivering a total of 35000 lumens for ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, an animation wheel, a rotating gobo wheel with 6 rotating and interchangeable glass gobos, a static gobo wheel with 7 gobos, a color wheel with 7 dichroic colors, 3-facet rotating prism/linear rotating prism, frost filter, linear electronic focus, linear dimmer, variable speed shutter/strobe, full color 180° reversible TFT display with 4 control buttons, etc.

The PROSPOT 800CF supports DMX, RDM (Remote Device Management), Art-Net protocol, Wireless Solution wireless system built-in.

The fixture’s exterior housing is beautifully balanced basing on a jewel-like design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the PROSPOT 800CF achieves more than just a striking look. It provides friendly PAN/TILT locks for safety during transportation.

It’s fast and quiet operation LED moving head. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.

Light Source
Source: 800W White LED engine
Color Temperature: 8000K (customizable)
50000lm (source), 35000lm(fixture)
CRI: ≥70（customizable）
Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
Optics
A set of high resolution and precise optics
5°-50°Smooth and quiet linear motorized zoom
Zoom reversible
2.5M-15M electric focus
Movement
PAN movement: 540°/630°/ 360°optional (8/16 bit)
PAN movement: 270°/180°/90°optional (8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT time controllable
PAN/TILT reversible and swap
Framing System
8-Motor driven 4-blade framing shutter system
Continuous bi-directional framing rotation
Fast, smooth and quiet framing and rotation
Smooth, flexible blade movements at variable speed to create different shapes
Smooth and quiet linear motorized Iris
Iris reversible
Color System
Full CMY color mixing system with linear CTO color correction
1 Color wheel with 7 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable
Color time controllable
Gobo System
1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing available
Gobo size 32mm (external)/28mm (inner)
1 Static gobo wheel with 7 gobos plus open
Gobo overlay (gobo morphing)
Gobo time controllable
