BPAR 618SIP-WI

Model: SI-179A BPAR 618SIP-WI

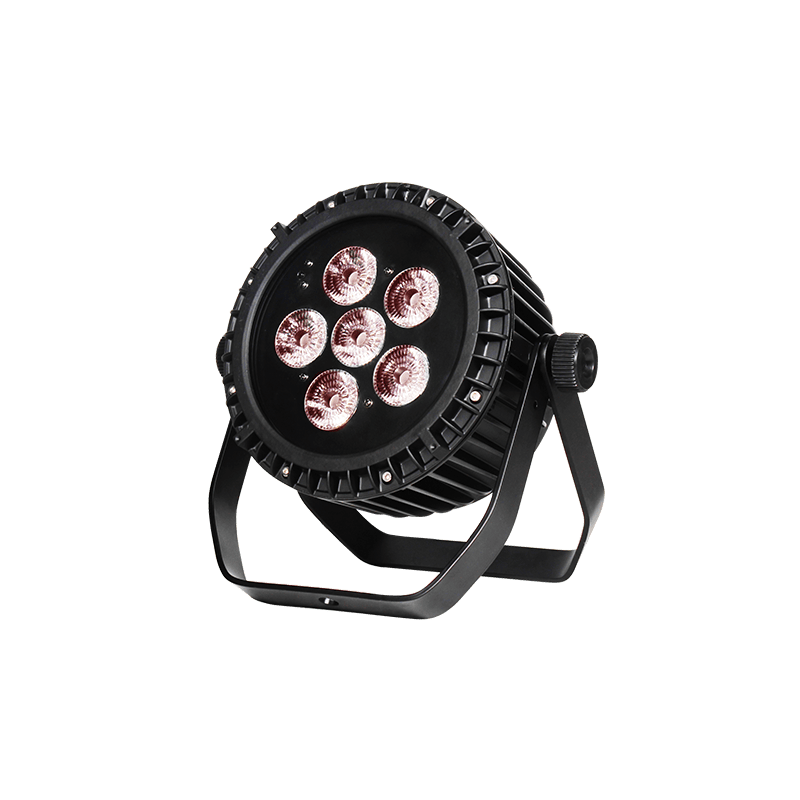

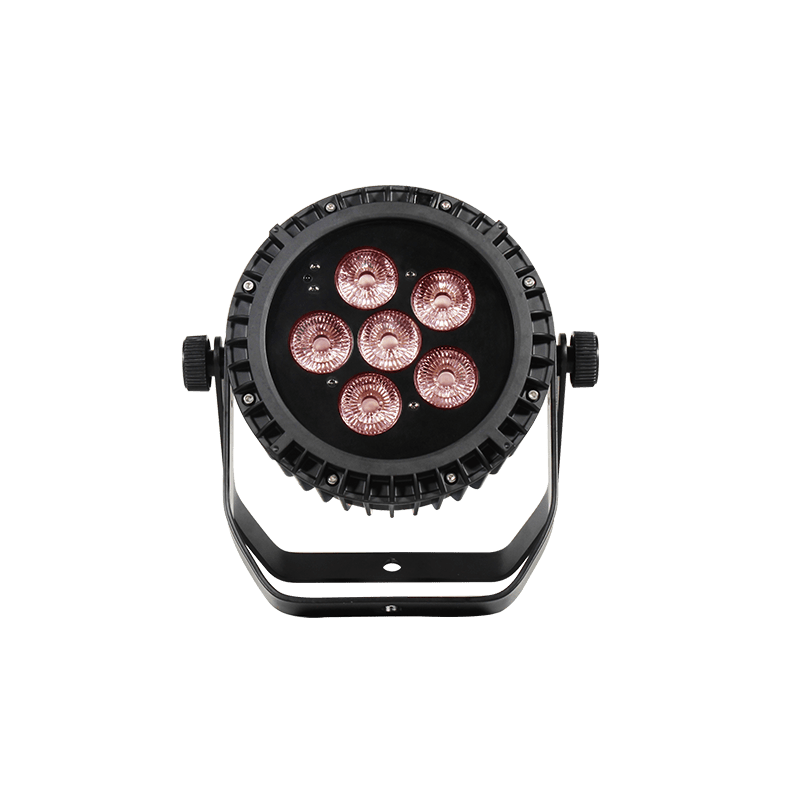

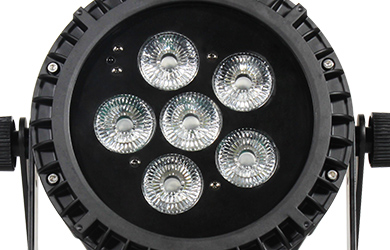

Color Imagination’s BPAR is an IP65 rated compact and low profile battery powered LED flat par light built with die-cast aluminum housing that is designed for uplighting and stage lighting. The fixture features 6*18W 6-in-1 LEDs (Red, Green, Blue, White, Amber, UV) which provides smooth and pure color mixing and integrated with 15° beam angle (25° and 45° optional) and it could be placed directly on the floor or inside the truss. BPAR offers 6 control options including DMX, Wireless Solution, IR remote, stand alone and sound activated, or APP control by phone/PC through WiFi. It has 2 DMX channels modes for a variety of programming options.

The BPAR is a perfect option for portable uplighting application (wedding, trussing illumination), small-medium live concerts, road shows, DJs, etc.

IP_16

6*18W 6-in-1 LEDs (RGBAW+UV)
50000 Hours life span and low power consumption
15° Beam angle (25° and 45° optional)
Smooth and pure color mixing capability
0-100% Linear dimming
6/10 DMX channels USITT DMX-512
DMX512, Master-Slave, Sound Activated and auto operation
4 Sound modes available
4 Auto operation modes available
2 Color modes available (customized color mode and static color mode)
Built-in programs that could be called up via a DMX controller
25T/sec high speed LED shutter/strobe effect with variable speed
2.4G Wireless Solution system built-in for wireless operation

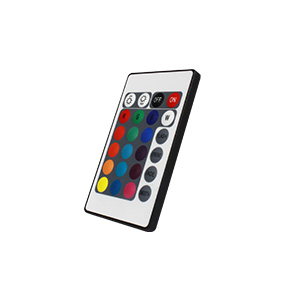

Compatible with UC IR wireless remote (6 colors with dimming, 9 mixing color options, auto color mode, strobe mode, auto fading mode, sound mode, master dimming and speed, IR ON/OFF)
Rechargeable secondary Li-ion battery built-in (auto charging once plugging in the power cable, 20 fixtures linkable in daisy chain)

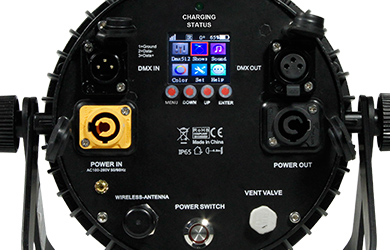

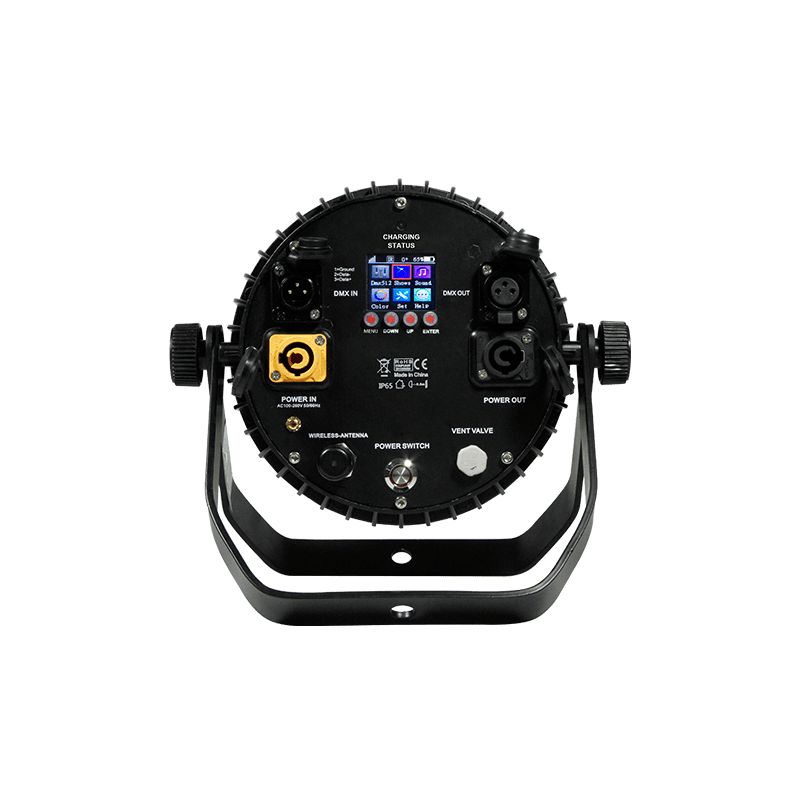

1.8" TFT LCD display with 4 control buttons
Display auto OFF time optional
Display backlight color adjustable
Display backlight brightness adjustable
Fixture running time display available
Fixture operation temperature display available

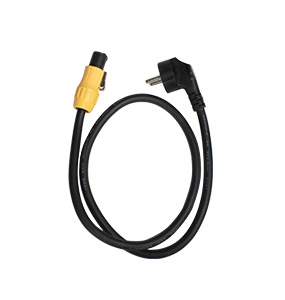

IP65 Seetronic POWERCON IN&OUT

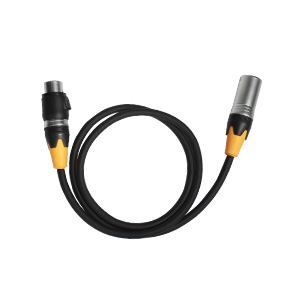

IP65 Seetronic 3-pin XLR connectors IN/OUT
IP65 Power switch available
Vent valve available for easy frost/steam cleaning
Battery charging status indicator available

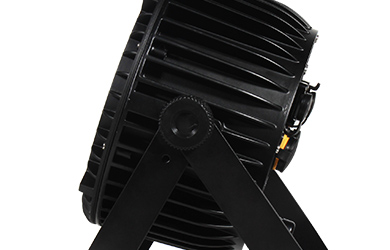

Aluminum die-casting structure design with optimum cooling system

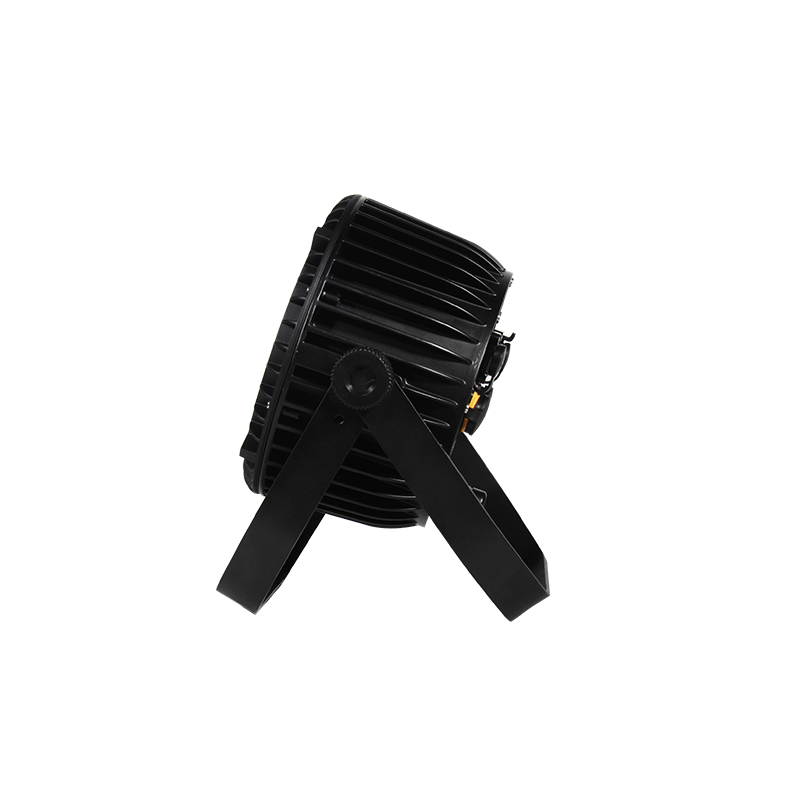

Dual mounting brackets for ground or hanging application
IP65 protection rating
-20℃ to 45℃ ambient temperature

Input Voltage:AC90-260V 50/60Hz
LED Quantities: 6*18W 6-IN-1 LEDs (RGBAW+UV)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel:6/10 DMX Channels
Power Consumption:110W
Dimensions: 295(D)*235(W)*300(H)mm
Packing Dimensions:270(D)*270(W)*300(H)mm
Net Weight:4.5kg
Gross Weight: 5.3kg

Battery Specs
CELL Type: Li-ion
Cell Model: LG 18650/3400mAh
Total Li-ion Cells: 12pcs
Battery Capacity: 28.8Ab
Nominal Voltage: 11.1V
Charge Voltage(Max): 12.6V
Charge Current(Normal): 2A
Charge Current(Max): 5A
Discharge Cut off Voltage: 8.1V
Discharge Current(Normal): 4A
Discharge Current(Max): 12A
Nominal Capacity at 0.2C/25℃: 13600mAh
Minimum Capacity at 0.2C/25℃: 12400mAh
Internal Resistance: ≤250mΩ
Operating Temperature Range: Charge (0℃～45℃); Discharge (-20℃～60℃)
Operating Humidity Range: ≤75% RH
Storage Temperature Range: -20℃～60℃ (1 month); -20℃～45℃ (1~3 month)s; -20℃～20℃ (3~12 months)
Storage Humidity Range: ≤75% RH
Over-charge detection voltage-cell: 4.250V±0.025V
Output delay time of over-charge: 1S±0.5S
Over-charge release voltage-cell: 4.15V±0.05V
Over-discharge detection voltage-cell: 2.70V±0.1V
Output delay time of over-discharge: 100mS±50mS
Over-discharge release voltage-cell: 3.0V±0.2V
Discharge over-current detection: 8A±2A
Output delay time of discharge over current: 10mS±5mS
Short-circuit detection: ≥12A
Output delay time of short-circuit detection: 400uS±200uS
Short circuit condition: auto activation
Charge over temperature protection (Fuse type): TBD
Supply current: ≤20uA
Cycle life(Charge or 0.2C/Discharge of 0.5C) at 25℃: ≥300 cycle fo 60%
Factory rated capacity: ≥60% of Normal Capacity
Battery Life With Full Charge: 22 Hours (Single Color); 22 Hours (Sound Active); 22 Hours (Fade Mode); 5 Hours (Full On)
Battery Charge Time: 4 Hours (3A)
Battery Lifetime: Average Lifetime is 800 Charges (This depends on charging frequency)
Battery Energy: 158.4WH (Watt Hours)
Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Battery Weight: ≤888g
