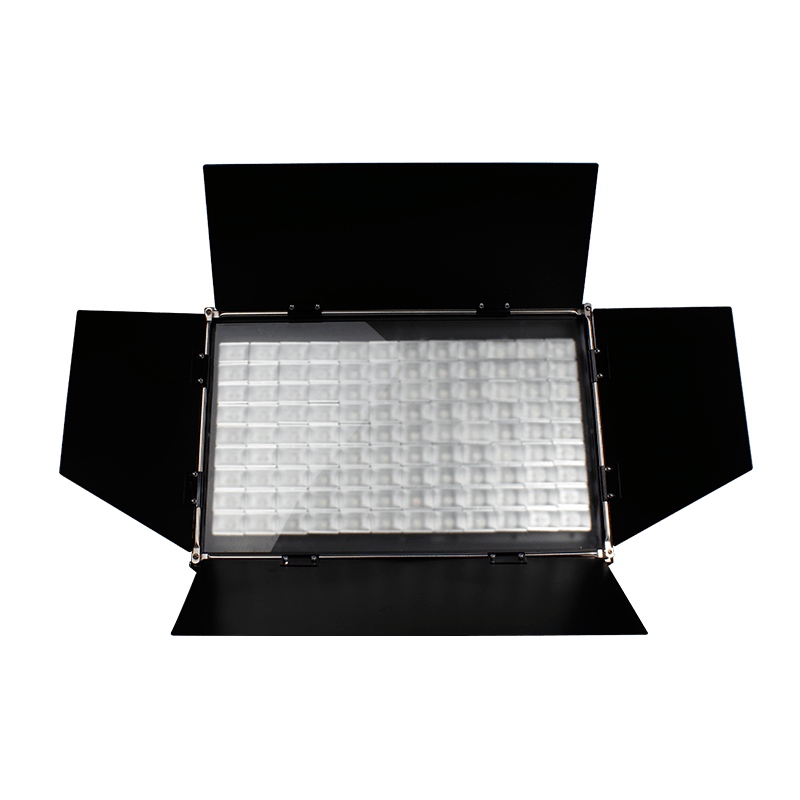

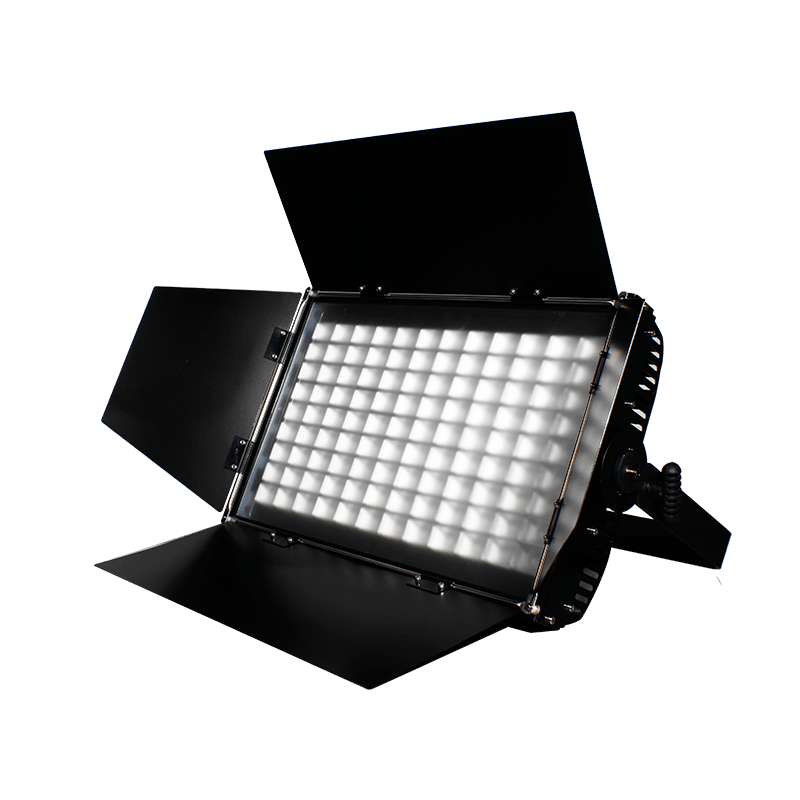

CYC 1083

Model: SI-150 CYC 1083

The flexible and modular concept IP65 rated CYC 1083 is a new generation CYCLORAMAS light for the industry featuring 108PCS 3W LEDs into high efficiency 60° optics, optional for RGB, warm white, cool white, WW/CW or UV version. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. These features provide the CYCLORAMAS with superior color reproduction and a high light output, offering greater flexibility than tradition ones.

The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.

The CYCLORAMAS is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.

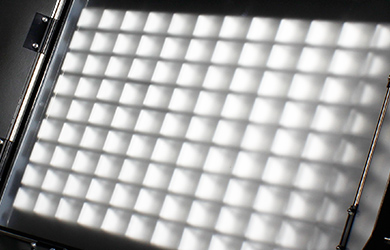

108PCS 3W RGB, warm white, cool white, WW/CW or UV LEDs
Accurate color temperatures tunable from 3200K to 5600K(WW/CW version)
50,000 hours life span and low power consumption
Color Rendering Index(CRI): Ra≥80

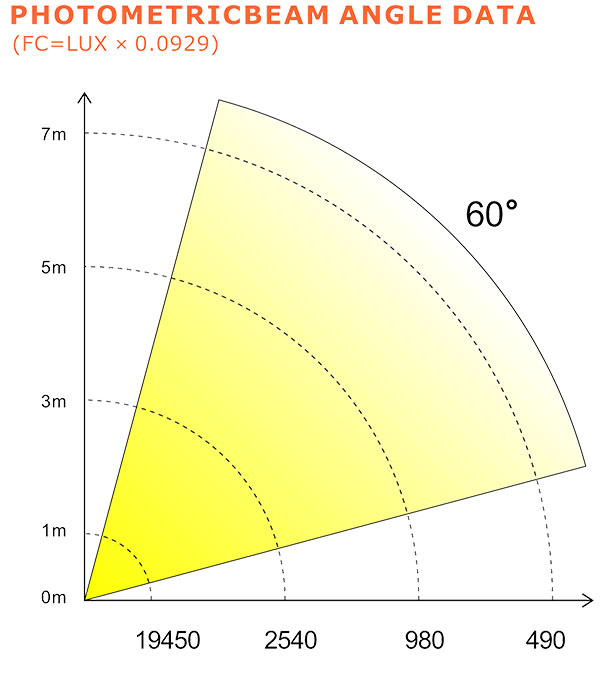

High efficiency 60° optic lens
Flat and even projection with soft edge
High intensity, long throw and 100° wide field angle
Housing made by rugged, die cast aluminum alloy

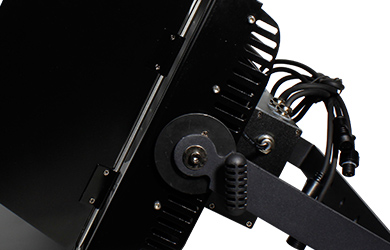

Thermally insulated knobs and dual aluminum handle for installing
Barn door included
Tripod stand as optional
Superior free noise thermal cooling system
0-100% Smooth and precise linear dimmer
No noticeable color shift throughout the entire range
Flicker-free at any frame rate or shutter angle
25T/sec high speed shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
5/8 DMX channels USITT DMX-512
DMX512, master-slave, and sound control or auto operation
LED display with 4 control buttons

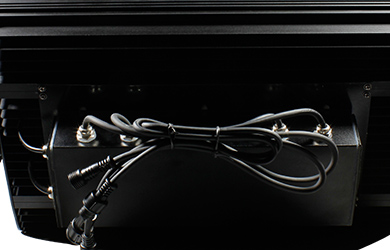

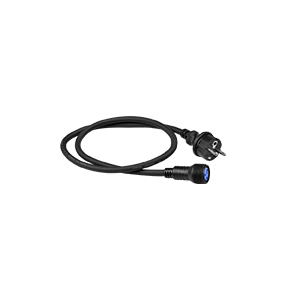

Waterproof power connectors IN/OUT

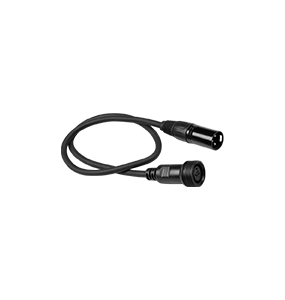

3-PIN DMX waterproof connectors IN/OUT
-20℃ to 40℃ operation temperature
Die-cast aluminum structure
IP65 protection rating

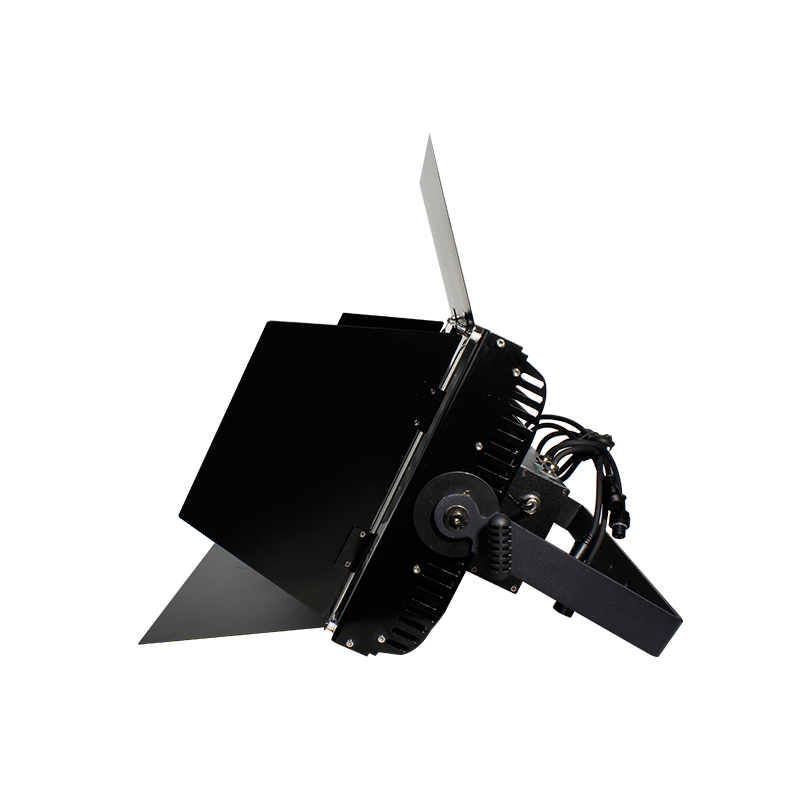

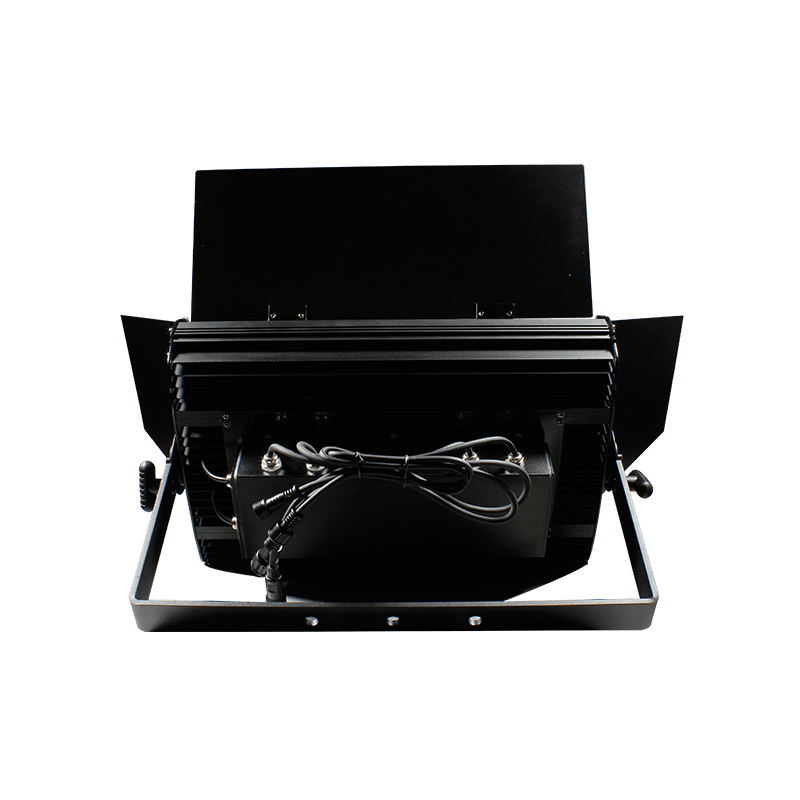

Dual floor standable and hanging brackets

Input Voltage:AC90-260V 50/60Hz
LED Quantities:108PCS 3W RGB, warm white, cool white, WW/CW or UV LEDs
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 5/8 DMX channels USITT DMX-512
Power Consumption: 400W

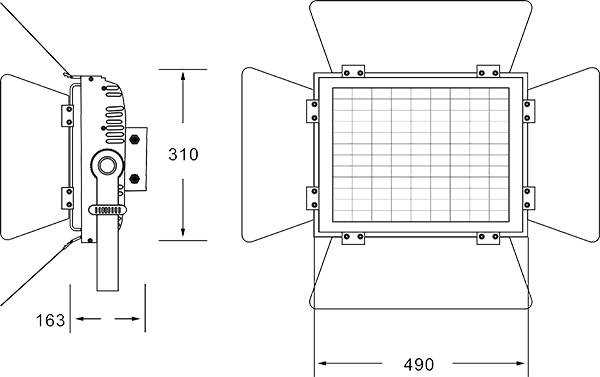

Dimensions:163(D)*490(W)*310(H)mm
Packing List: 235(D)*595(W)*385(H)mm
Net Weight: 9.58kg
Gross Weight: 12.00kg
