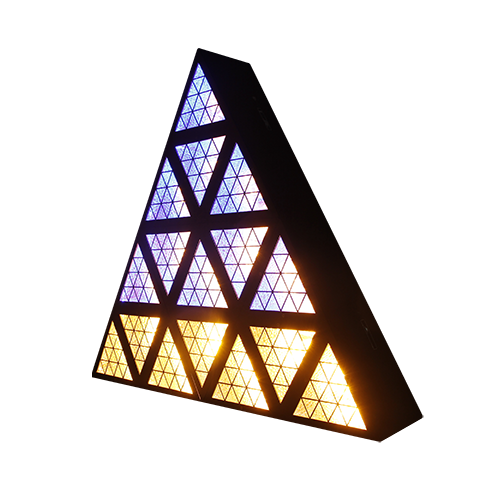

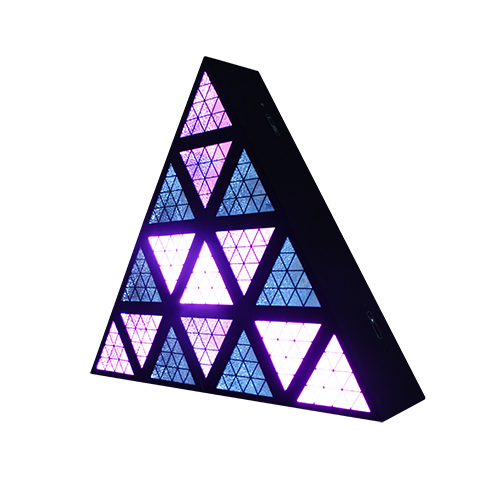

Model: SI-277A TRIANGLE PLUS-C
- Light Source
- Source:
- 16*30W LED modules, 1800K
- 576*0.3W 3-IN-1 SMD LEDs
- 16 LED modules controllable individually
- Flicker free operation for broadcast TV and FILM
- Life Span: 50000H
- The life span may vary depending on several following factors but not limited to：
-
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.
- Optics

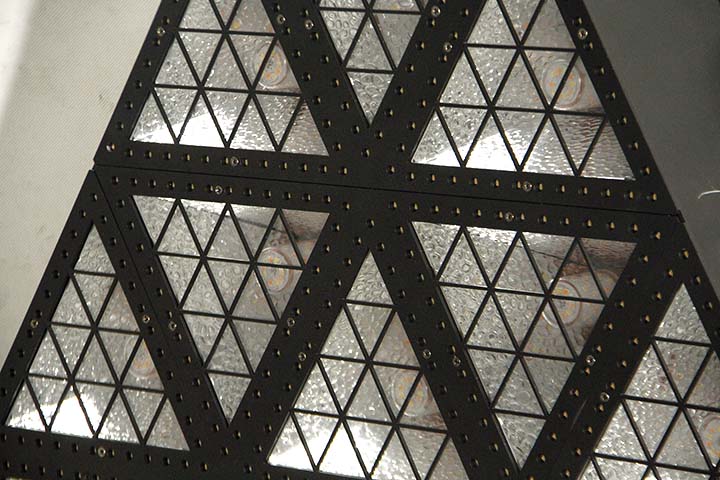

- A set of high temperature resistant squamous reflector optic system
-
60°Beam angle for each module
- Color System
- 1800K golden coverage
- RGB mixing capability
-
Different color temperature tunable by mixing
- Strobe Effect
-
25T/sec high speed shutter/strobe effect with variable speed
- Dimming System
- 0-100% Smooth linear LED dimming
-
4 Dimming cure modes, linear/square law/Inv square law/S-curve
- Control System
- 7/67/97 DMXchannels USITT DMX-512
- DMX512, master-slave, sound control or auto operation
- DMX recorder and edit function integrated
- RDM available (Remote Device Management)
- Art-NET available
- Shielded input signal protection for stable signal without interference

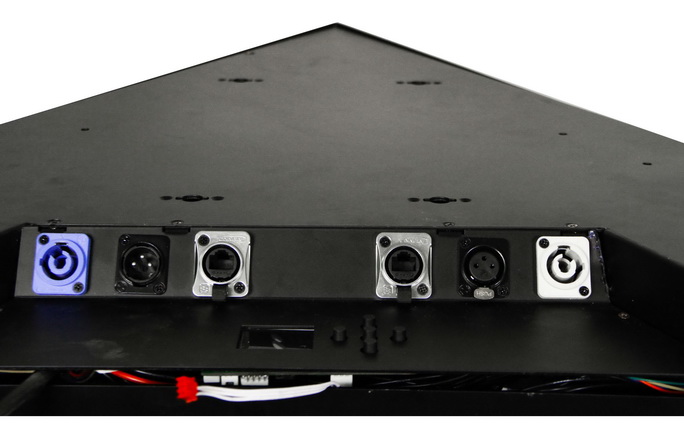

- RJ45 etherCON IN/OUT
-
3-Pin XLR connectors IN/OUT
- Software Update
- Software up-datable through DMX connectors
-
Muilt units up-datable in daisy chain
- Display System
- 1.8" TFT LCD display
- 4 Control buttons
- 180°Reversible for LCD display
-
Display auto OFF
- Cooling System
- Advanced noise free cooling system integrated aluminum and copper
- Constant temperature readout and management function
-
Over temperature protection management (output decreased when over heat)
- Power Supply
- Electronic supply with active PFC
- AC100-240V 50/60Hz

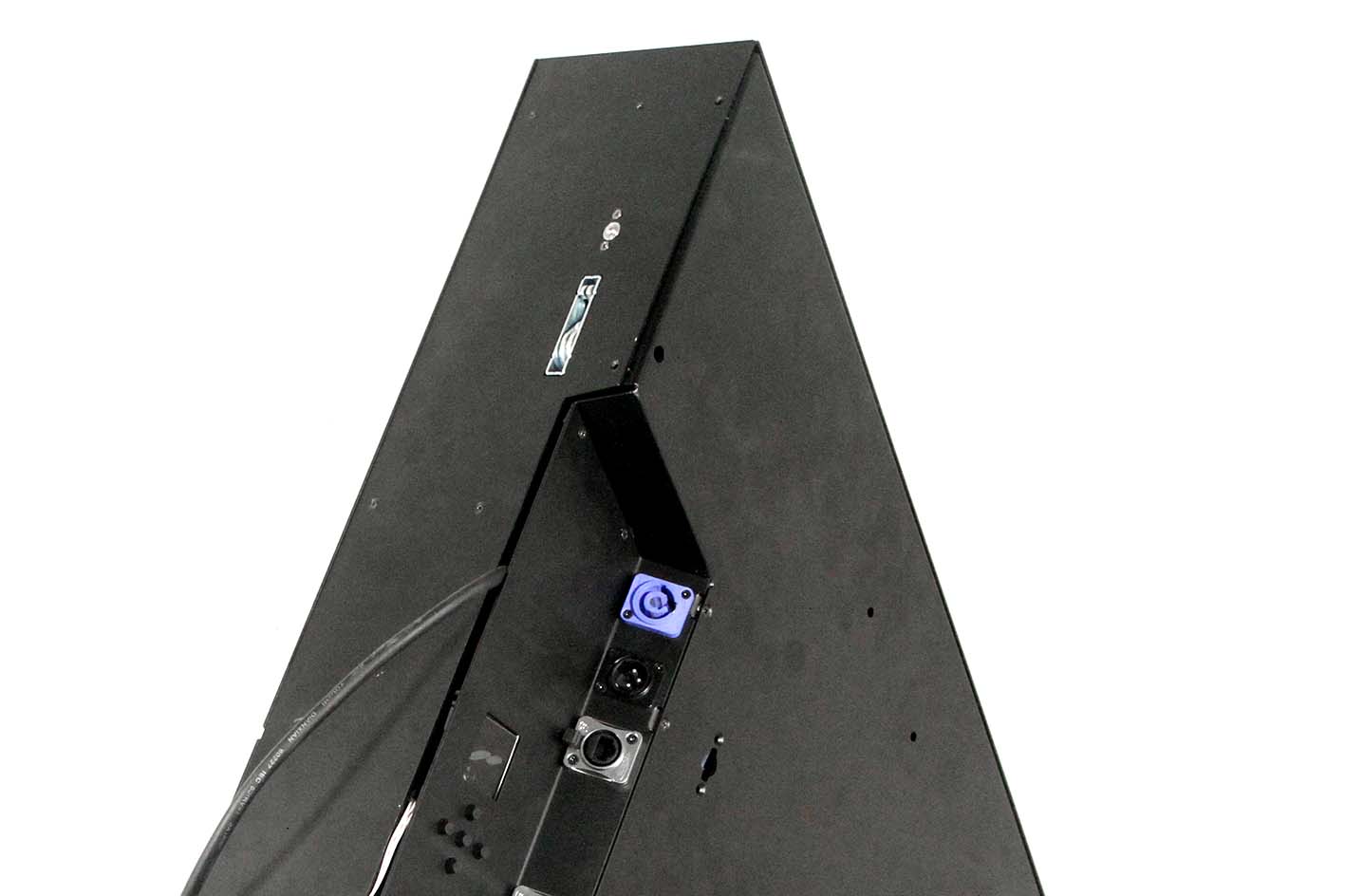

- PowerCON connectors IN/OUT
-
850W Power consumption
- Housing
- Skeleton made of high tension steel metal plates

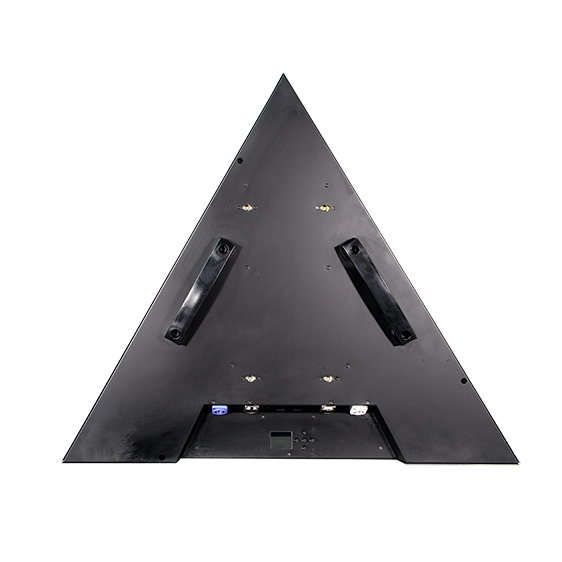

- Dual back handles
-
Exterior finish: Black (white optional)
- Installation
- 2*1/4 Turn fastening Omega Clamps
- 3 Sets seamless combined system (Female and Male)
- Truss-hanging kits, 2 options (Optional)
- Wall-mounting kit (Optional)
-

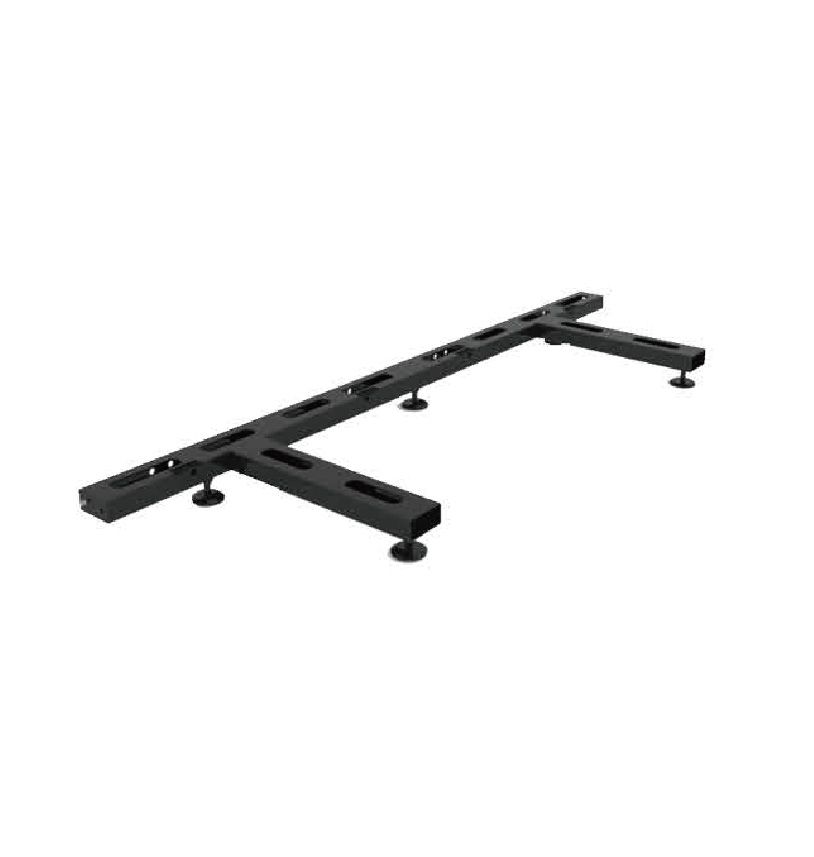

Floor-stacking kit (Optional)
- Operating Condition
- Operating positions: all
- -25℃ to 45℃ ambient temperature
-
IP20 protection rating
- Compliance
- CE
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
-
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- Weight
- N.W.: 14kg
-
G.W.: 16kg
- Dimensions

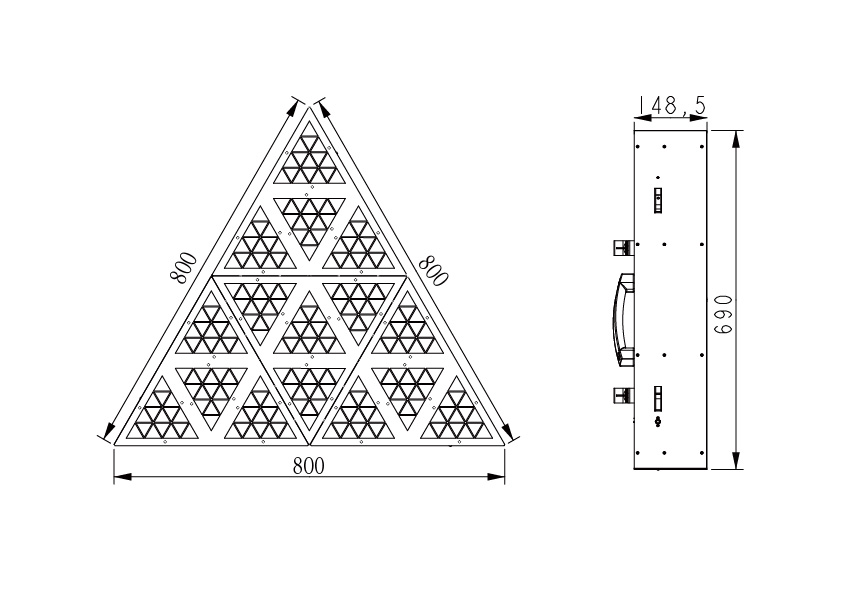

- Product Dimensions:148(D)*800(W)*690(H)mm
- Packing Dimensions: 240(D)*895(W)*775(H)mm
-
Promotional brochures
-
Manuals
-
DMX Channels
-
Photometrics
-
Poster
-
Certificates
-
Accessories
-
CAD Symbols
-
Libraries
Details

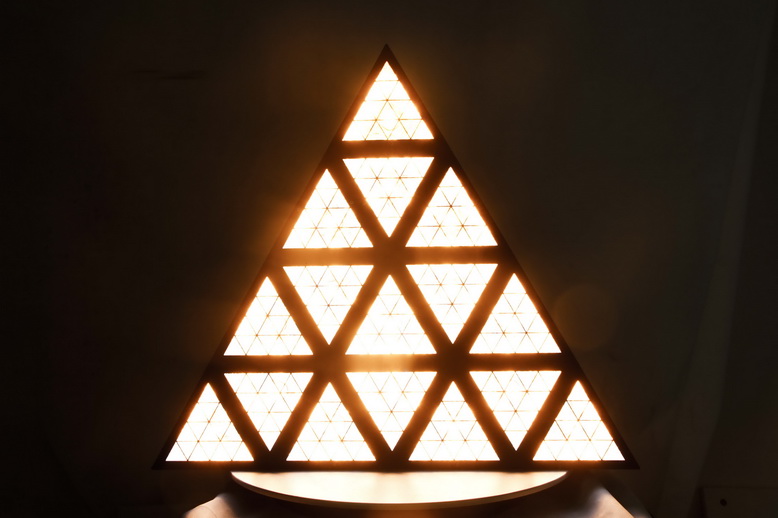

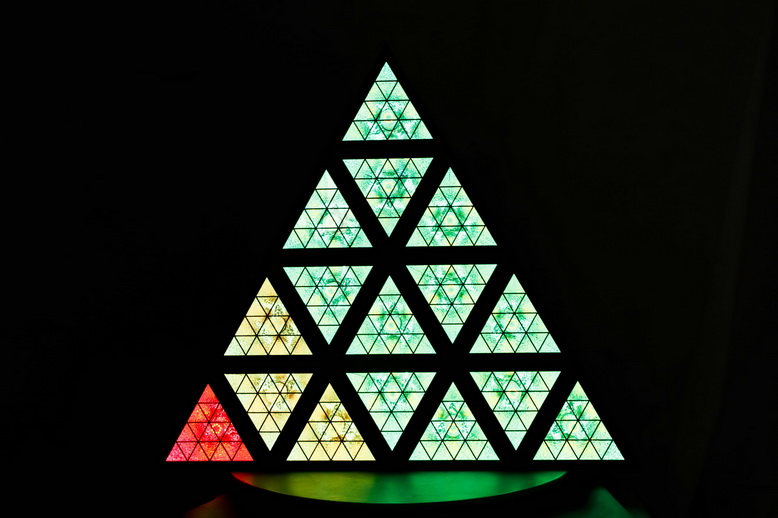

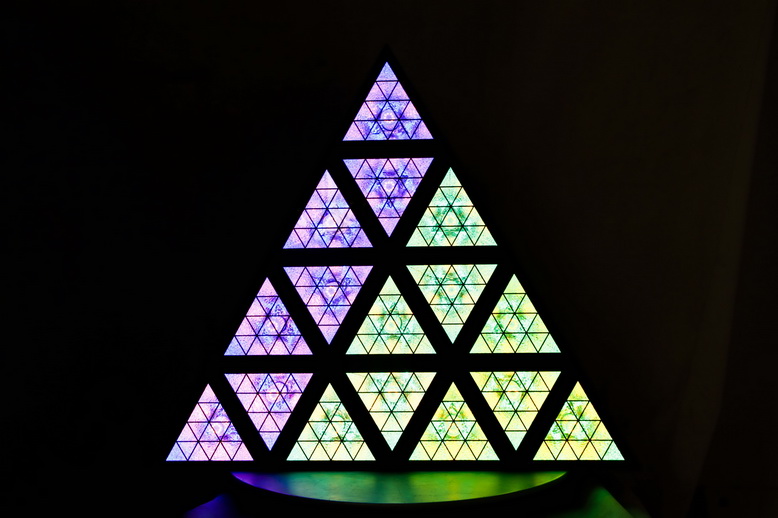

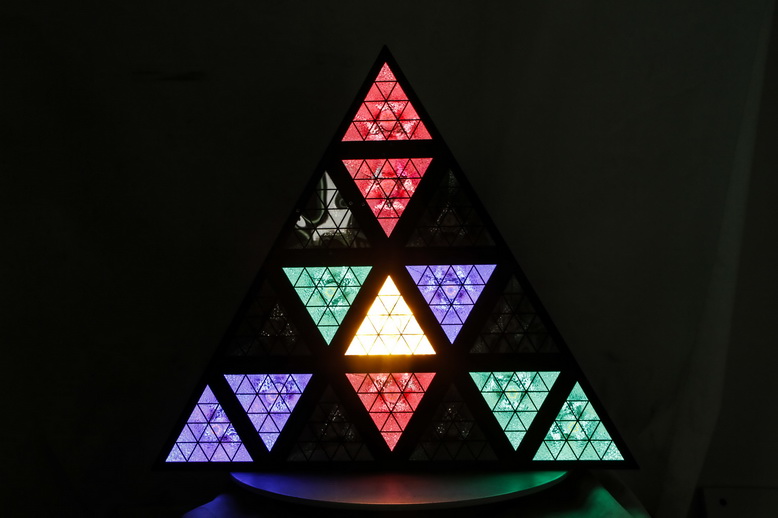

Effect Pictures
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 2PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
Single Floor-Stacking Ki
OPTIONAL
code:

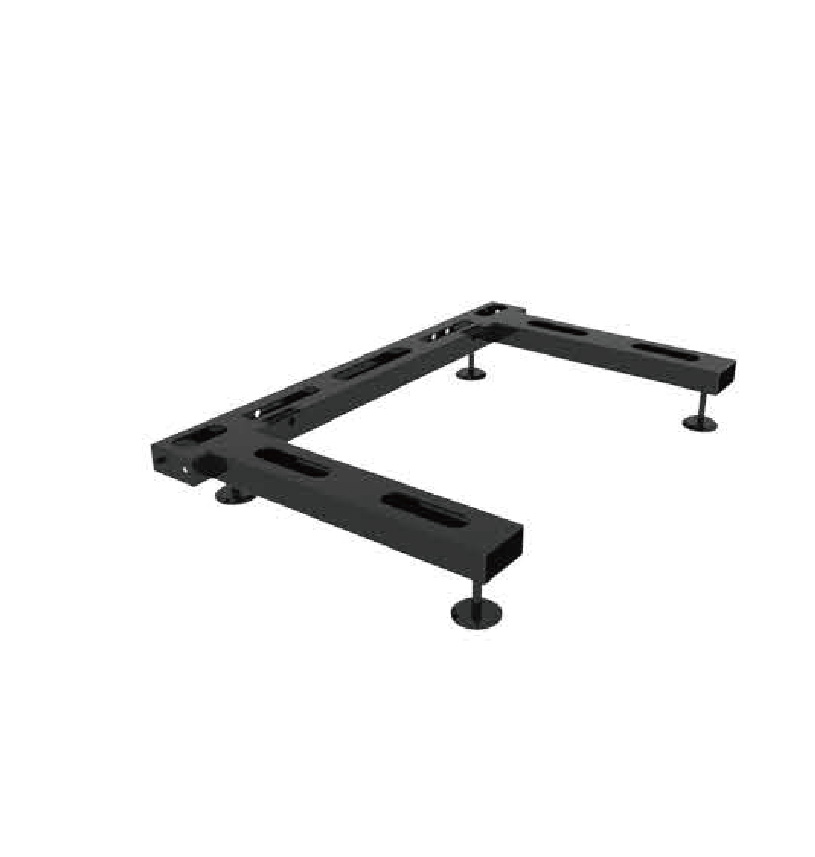

Dual Floor-Stacking Kit
OPTIONAL
code:
QTY:

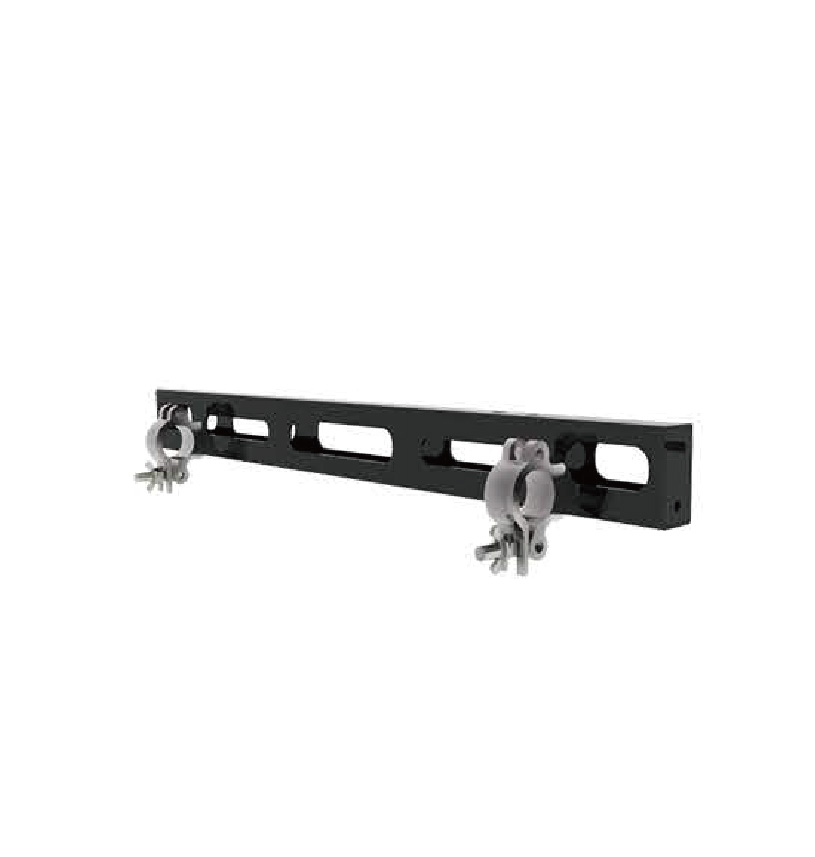

Single Truss-Hanging Kit
OPTIONAL
code:

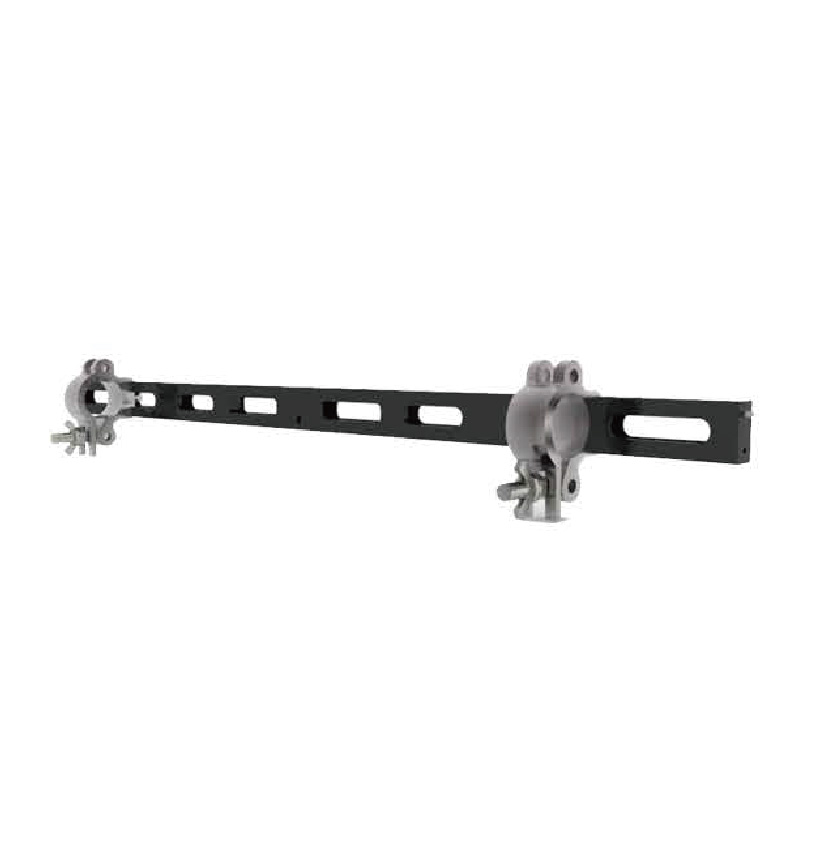

Dual Truss-Hanging Ki
OPTIONAL
code:
QTY:
