Model: SI-144 FRESNEL 300MZ/200MZ/120MZ

The FRESNELs are high definition studio spot lighting system with manual zoom  from 15°-50°, available for different optioins:
FRESNEL 300MZ-CW: 1*300W cool white 5600K COB LED
FRESNEL 300MZ-WW: 1*300W warm white 3200K COB LED
FRESNEL 200MZ-CW: 1*200W cool white 5600K COB LED
FRESNEL 200MZ-WW: 1*200W warm white 3200K COB LED
FRESNEL 120MZ-CW: 1*120W cool white 5600K COB LED
FRESNEL 120MZ-WW: 1*120W warm white 3200K COB LED
FRESNEL 200MZ-F: 1*200W 4-in-1 COB LED
FRESNEL 200MZ-T: 1*200W 3-in-1 COB LED
FRESNEL 200MZ-D: 1*200W 2-in-1 COB LED (Cool White+Warm White)
Color Imagination recently launched a totally new series of high definition and ultra quiet LED studio lights into our product range, basing on our driving force, light quality. The housing is made by rugged, die cast aluminum alloy, compact and light weight. The FRESENALs features brightest output and the boldest rendering of the colors you use most, flicker free even at high speed. It delivers projection like natural sunlight. The 2-in-1 version’s temperature and tints could be adjusted to illuminate individual skin tones perfectly, resulting in great look in person and on camera. The bicolors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. The RGBW/RGB version are with infinite color mixing system that brings any colors to lighting designers. The FRESENALs are ideal for theatres, houses of worship, conference rooms, special photography, TV sudios, exhibition centres, universities and schools, hospitality, retail, clubs, etc.


  • 1*300W/200W/120W COB LEDs (available for CW/WW/RGBW/RGB/CW+WW)
  • 50,000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥92
  • High efficiency fresenal lens
  • Flat and even spot image with soft edge
  • Manual zoom system from 15°-50°
  • Housing made by rugged, die cast aluminum alloy
  • Thermally insulated rear handle
  • Thermally insulated knobs and single aluminum handle for installing
  • Barn door included
  • Color frame as optional
  • 0-100% Smooth and precise linear dimmer
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1) DMX channels
  • USITT DMX-512
  • DMX512, master-slave, and sound control or auto operation
  • 4-Button LCD display
  • POWRECON connector IN/OUT
  • Power switch available with fuse
  • 3-Pin and 5-pin XLR connectors IN/OUT
  • Low noise fan integrated with copper liquid cooling system
  • -20°C ~ 45°C Max ambient temperature
  • IP20 protection rating

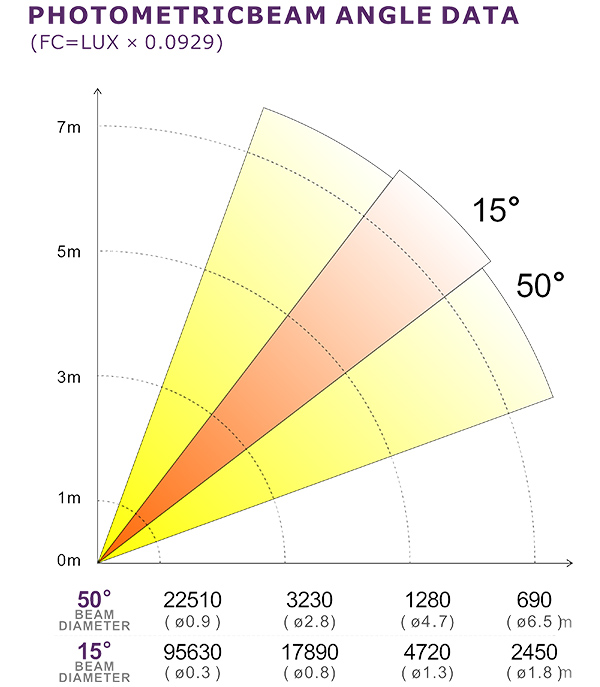

PHOTOMETRIC BEAM ANGLE DATA_36

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*300W/200W/120W COB LEDs
(available for CW/WW/RGBW/RGB/CW+WW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1)
DMX channels USITT DMX-512
Power Consumption: 160W/260W/390W
Dimensions:220(D)*397(W)*415(H)mm
Packing Dimensions: 325(D)*580(W)*320(H)mm
Net Weight: 8.68kg
Gross Weight: 10.52kg

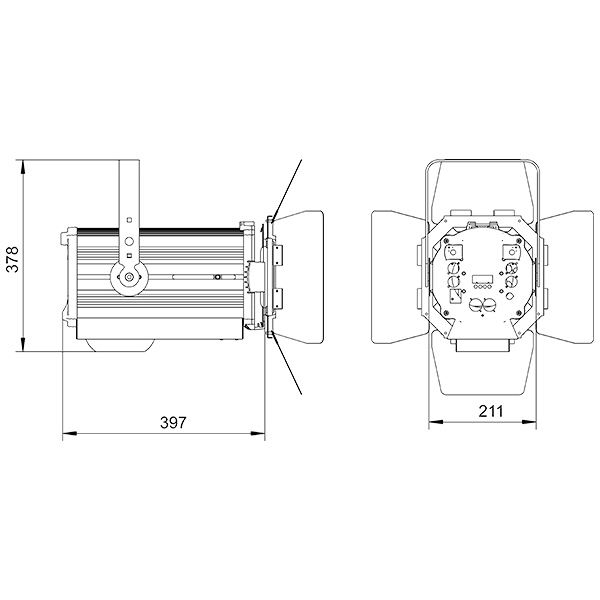

SIZE_33
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

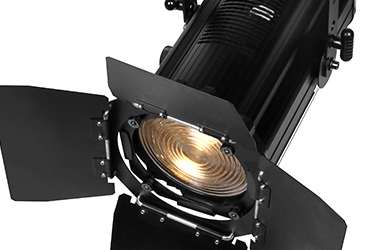

  • a.jpg
  • c_64

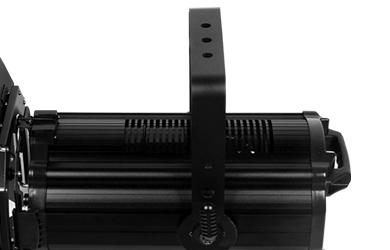

  • b_66

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Barn Door

STANDARD
code:
QTY: 1PCS



2_1

Color Frame

OPTIONAL
code:
QTY: 1PCS
