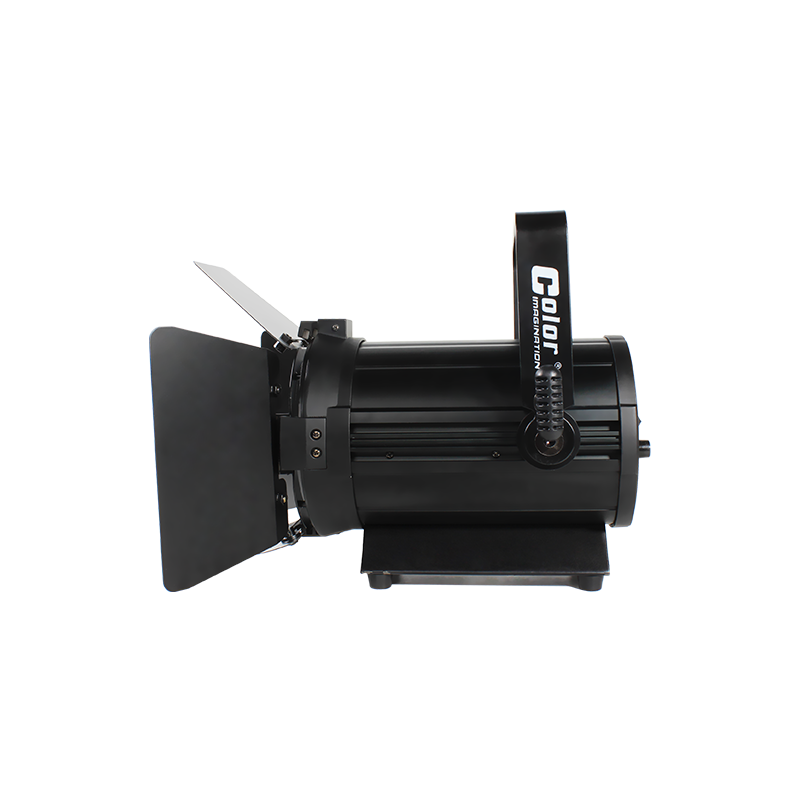

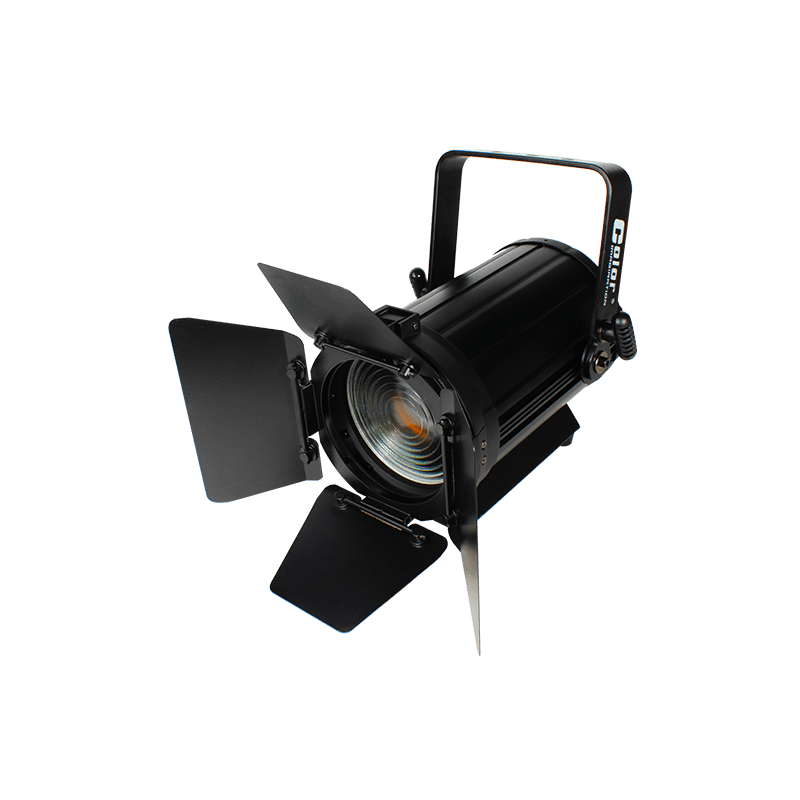

Model: SI-178 MINIFRESNEL 100MZ

The MINIFRESNEL 100MZ, featuring a stylish and compact light weight rugged, die cast aluminum housing, is a high definition studio spot lighting system with manual zoom from 15°-50° and two dimming modes, available for following options:

MINIFRESNEL 100MZ-CW: 1*100W cool white 5600K COB LED
MINIFRESNEL 100MZ-WW: 1*100W warm white 3200K COB LED
MINIFRESNEL 100MZ-F: 1*100W 4-in-1 COB LED
MINIFRESNEL 100MZ-D: 1*100W 2-in-1 COB LED (Cool White+Warm White)

The MINIFRESNEL features brightest output and the boldest rendering of the colors you use most, flicker free even at high speed. It delivers projection like natural sunlight. The 2-in-1 version’s temperature and tints could be adjusted to illuminate individual skin tones perfectly, resulting in great look in person and on camera. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. The RGBW version are with infinite color mixing system that brings any colors to lighting designers.

The MINIFRESNEL are ideal for theatres, houses of worship, conference rooms, special photography, TV sudios, exhibition centres, universities and schools, hospitality, retail, clubs, etc.


  • 1*100W COB LEDs (available for CW/WW/RGBW/CW+WW)
  • 50,000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥90
  • High efficiency fresenal lens
  • Flat and even spot image with soft edge
  • Manual zoom system from 15°-50°
  • Housing made by rugged, die cast aluminum alloy
  • Thermally insulated rear handle
  • Thermally insulated knobs and single aluminum handle for installing
  • Barn door included
  • Color frame as optional
  • 0-100% Smooth and precise linear dimmer
  • Two dimmer modes available
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 1/2(CW/WW), 2/5(2-IN-1), and 4/8(4-IN-1) DMX channels USITT DMX-512
  • DMX512, master-slave, and sound control or auto operation
  • 4-Button LCD display
  • POWRECON connector IN/OUT
  • Power switch available with fuse
  • 3-Pin XLR connectors IN/OUT
  • Low noise fan integrated with copper liquid cooling system
  • -20-45℃ Max ambient temperature
  • IP20 protection rating
  • 1*Safety attachment point

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*100W COB LEDs (available for CW/WW/RGBW/CW+WW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 1/2(CW/WW), 2/5(2-IN-1), and 4/8(4-IN-1) DMX channels USITT DMX-512
Power Consumption: 130W
Dimensions:280(D)*283(W)*300(H)mm
Packing List: 320(D)*365(W)*320(H)mm
Net Weight: 5kg
Gross Weight: 6.5kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

  • a.jpg
  • b_132
  • c_131

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Light Barrier

STANDARD
code:
QTY: 1PCS



2_1

Color Frame

OPTIONAL
code:
QTY: 1PCS
