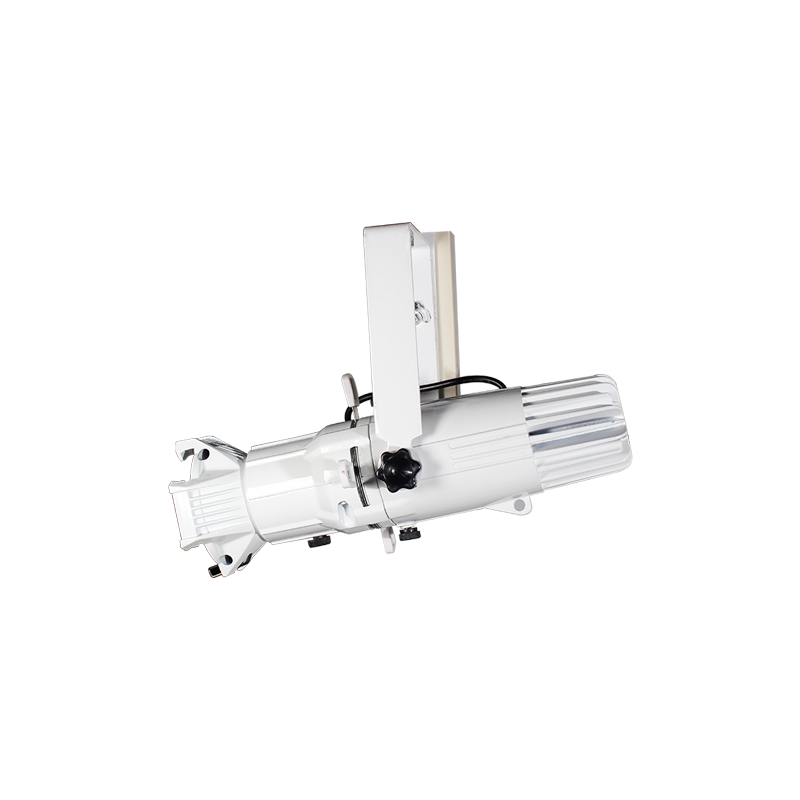

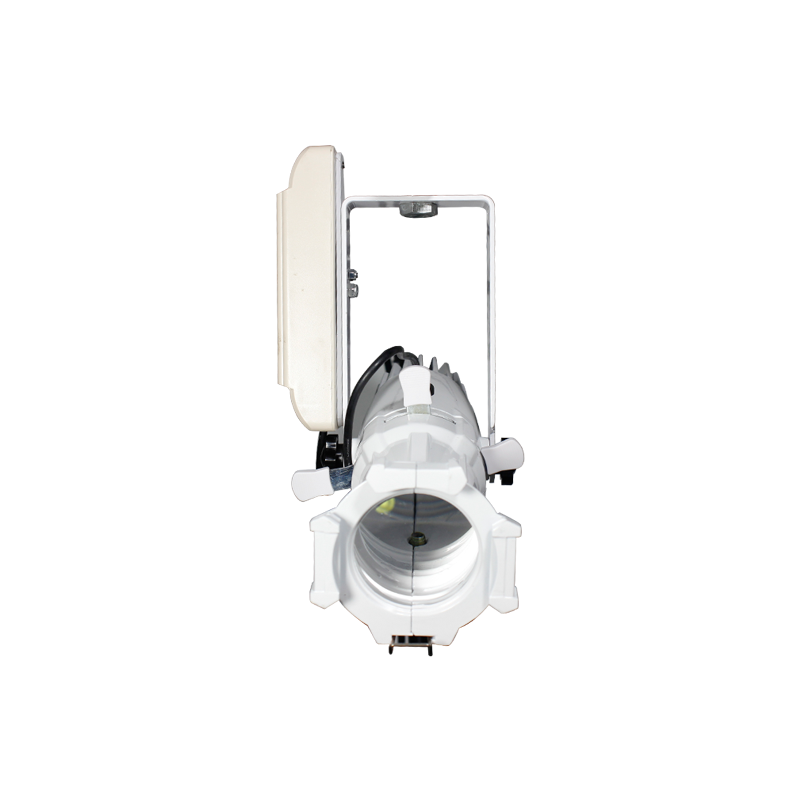

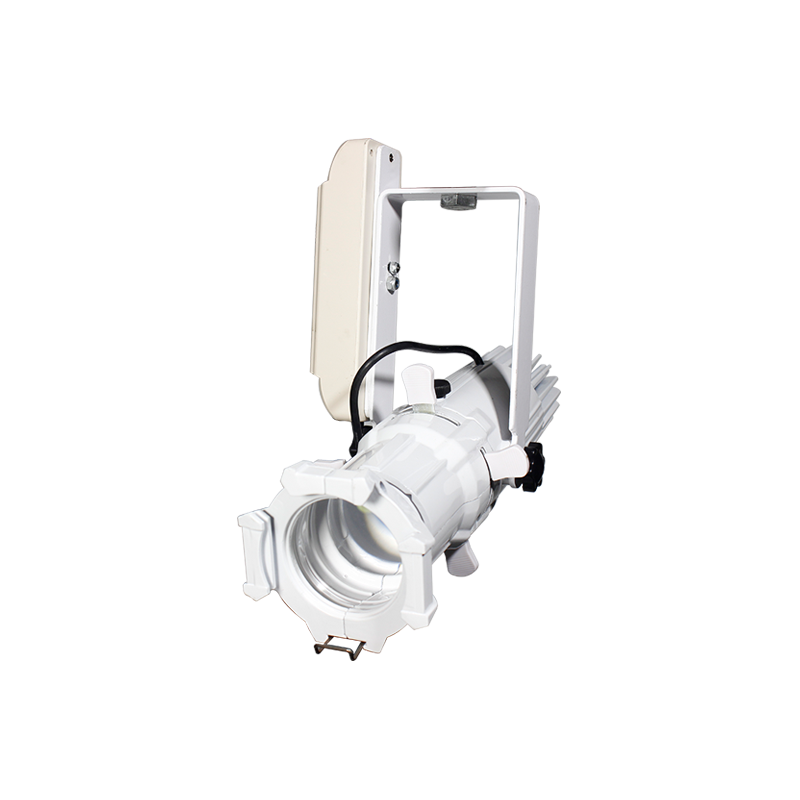

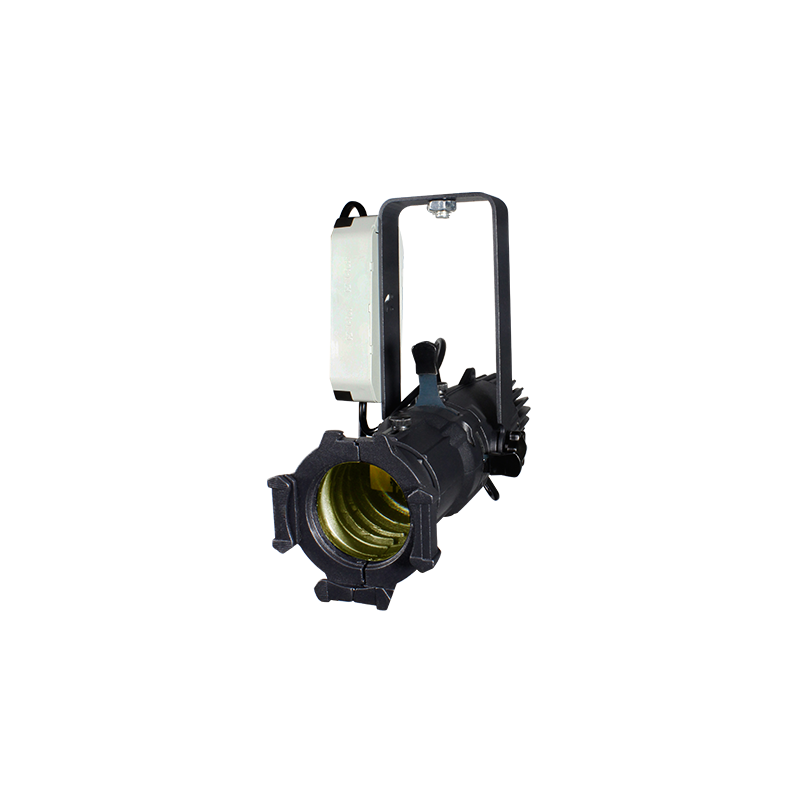

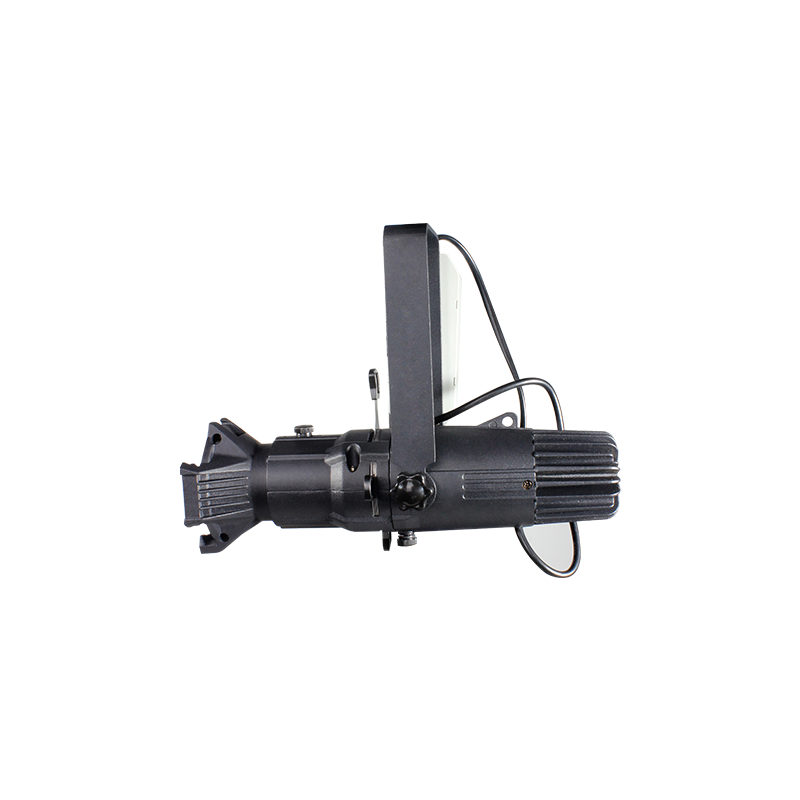

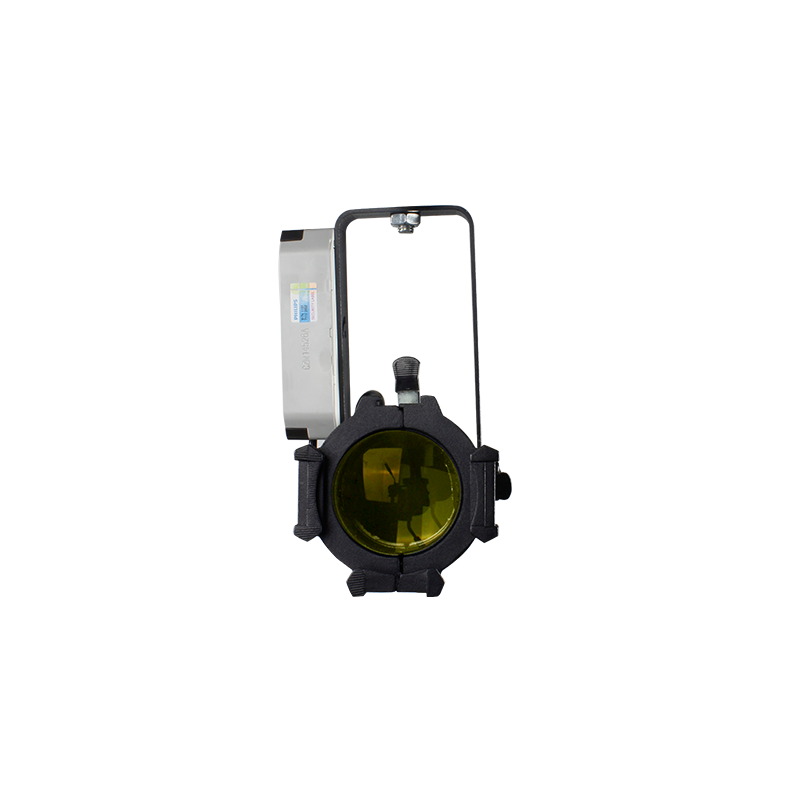

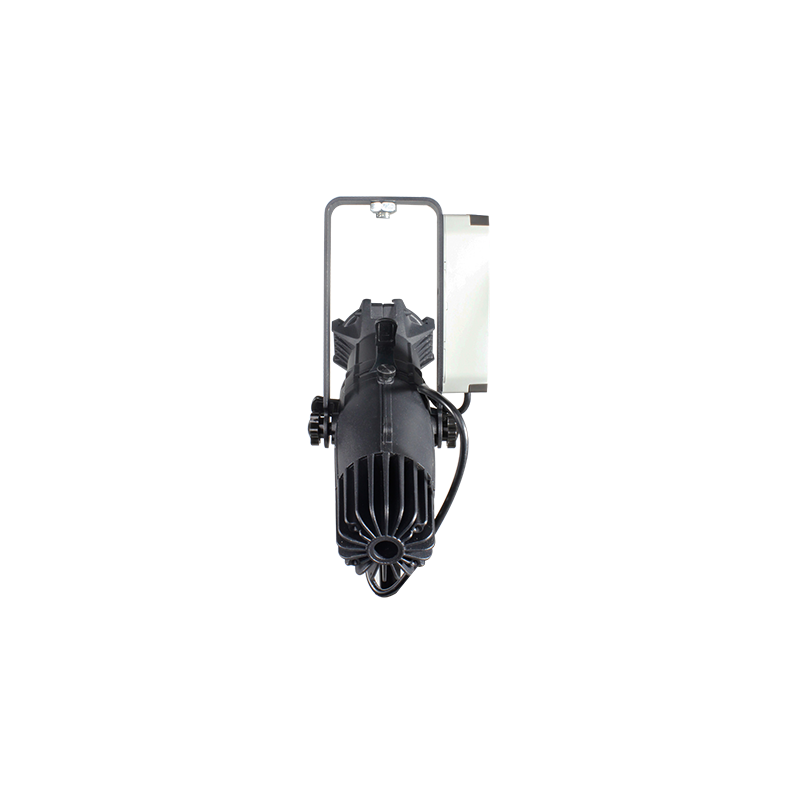

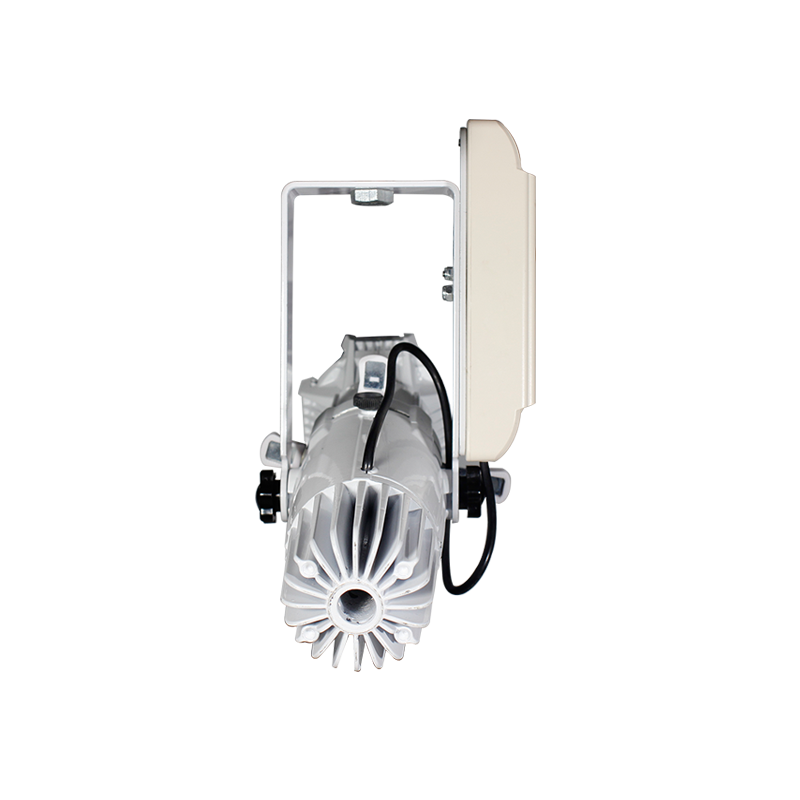

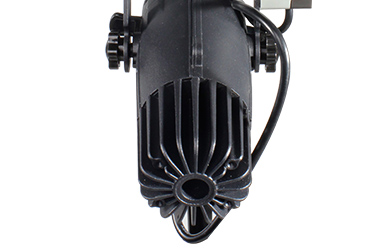

Model: SI-168 MINIPROFILE 20

MINIPROFILE 20 is a high definition SPOT lighting system in a very compact and lightweight die-case aluminum housing with the front lens tube interchangeable, 19°/26°/36°/50°field angles optional for on-site professional application need, available for three options:

MINIPROFILE 20CW: 1*20W cool white 5600K COB LED (Ra≥90)
MINIPROFILE 20WW: 1*20W warm white 3200K COB LED (Ra≥90)
MINIPROFILE 20D: 1*20W 2-in-1 COB LEDs (3200K-5600K, Ra≥90)

The MINIPROFILE features brightest output and the boldest rendering of the colors you use most, flicker free even at high speed. It delivers projection like natural sunlight. The 2-in-1 version’s temperature and tints could be adjusted to illuminate individual skin tones perfectly, resulting in great look in person and on camera. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. The fixture comes with 3 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame, gobo slot and manual iris system are optional. It comes with external full range power supply and control by a remote controller. There are 3 installation options:Canopy mount, portable mini C-clamp, track mount.

The MINIPROFILEs are ideal for museums, retail outlets, restaurants, light labs, children's theaters, and other small scale installations where size matters.


  • 1*20W CITIZEN COB LEDs (available for CW/WW/CW+WW)
  • 50,000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥90
  • Optimized high definition optical system for improved photometric performance and field uniformity
  • Projector-quality, high contrast aspheric lens
  • Glass reflector that removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
  • Lens tube interchangeable with filed angles optional for 19°/26°/36°/50°
  • Flat and even hard edge spot image
  • Smooth manual focus system
  • Beam edge continually adjustable hard-to-soft
  • Housing made by die-case aluminum
  • Thermally insulated knobs and dual aluminum handle for installing

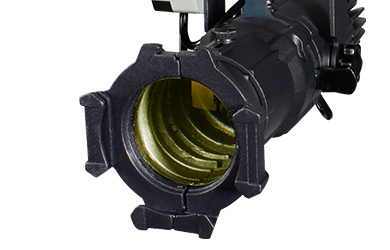

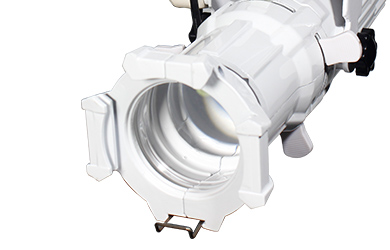

  • 3 Metal spot cutting slots
  • Glass/Metal gobo slot as optional
  • Color frame as optional
  • 0-100% Smooth and precise linear dimmer
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • Remote controller for different operation functions
  • External full range power supply
  • Noise free conventional cooling with housing
  • -20-45℃ Max ambient temperature
  • IP20 protection rating
  • Portable (mini C-clamp), canopy-mount and track-mount versions as optional

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*20W CITIZEN COB LEDs (available for CW/WW/CW+WW)
Control: Remote controller
Power Consumption: 26W
Dimensions:270(D)*122(W)*110(H)mm
Packing List: 180(D)*360(W)*160(H)mm(1PCS)
                      370(D)*540(W)*320(H)mm(6PCS)
Net Weight: 1.12kg
Gross Weight: 1.5kg



SI-168 SIZE_1
  • Promotional brochures



  • Manuals



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



Details

  • a_70
  • b_72
  • c_70
  • a_70
  • b_72
  • c_70

Effect Pictures

3_1

Safety Cable

STANDARD
code:
QTY: 1PCS



3_1

Clamps

STANDARD
code:
QTY: 1PCS



2_1

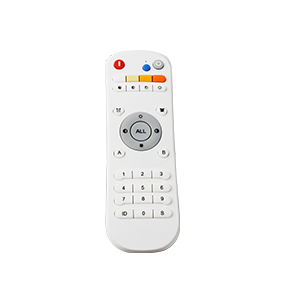

Remote Controller

STANDARD
code:
QTY: 1PCS



2_1

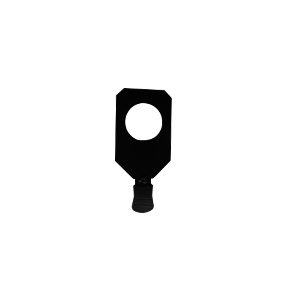

Gobo Slot

OPTIONAL
code:
QTY: 1PCS



2_1

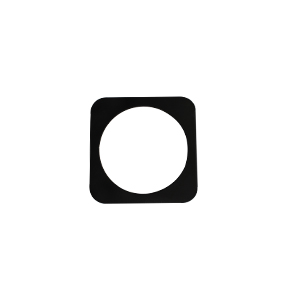

Color Frame

OPTIONAL
code:
QTY: 1PCS



2_1

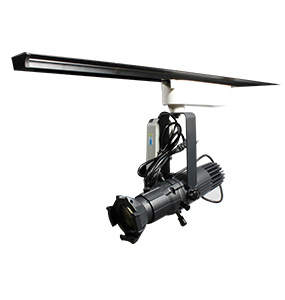

Track Mount

OPTIONAL
code:
QTY: 1PCS
