Model: SI-145 PANEL 8965B/8965

The flexible and modular concept PANEL 8965 is a new generation studio panel light for the industry featuring 896PCS premium quality, high CRI and surface mount stable 5mm LEDs with high efficiency optics, cool white and warm white integrated. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. These features provide the PANEL with superior color reproduction and a light output comparable to a 300W HMI/1kW Tungsten fixture, offering greater flexibility than tradition ones. The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight. It’s available for battery powered version which is more flexible for users and non battery version. The battery is chargeable when the power is connected and it could operate 3 hours with full power charged. The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.

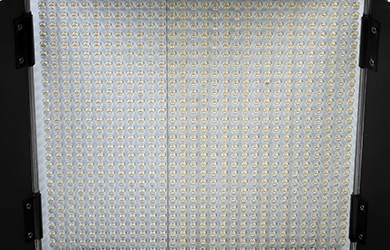

  • 896PCS premium quality and high CRI 5mm LEDs (CW+WW)
  • Accurate color temperatures tunable from 3200K to 5600K
  • 50,000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥80
  • High efficiency lens
  • Flat and even projection with soft edge
  • High intensity, long throw and 45° wide field angle
  • Housing made by rugged, die cast aluminum alloy
  • Thermally insulated knobs and single aluminum handle for installing

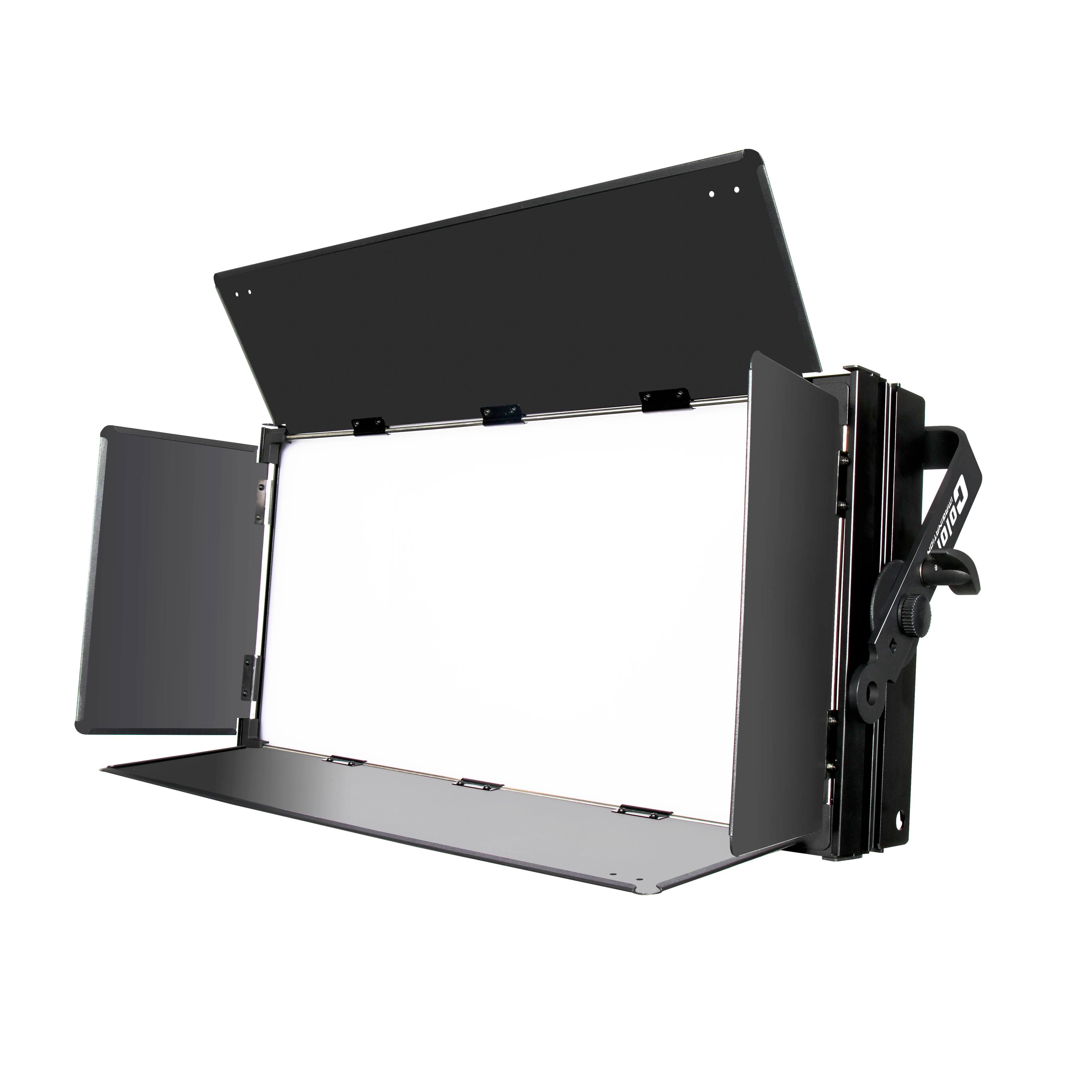

  • Barn door included
  • Tripod stand as optional
  • Tour bag as optional
  • Superior free noise thermal cooling system
  • 0-100% Smooth and precise linear dimmer
  • 2 Individual dimmer knows to adjust color temperatures
  • No noticeable color shift throughout the entire range
  • Flicker-free at any frame rate or shutter angle
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 2/5 DMX channels USITT DMX-512
  • DMX512, master-slave, and sound control or auto operation
  • 4-Button LCD display
  • Durable, industry standard 3-Pin XLR locking power connector
  • 12V DC power adapter included
  • Power switch available
  • 3-Pin connectors IN/OUT
  • -20°C ~ 45°C Max ambient temperature
  • IP20 protection rating
PHOTOMETRIC BEAM ANGLE DATA_37
Input Voltage:AC90-260V 50/60Hz
LED Quantities:896*5mm LEDs
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 2/5(2-IN-1) DMX channels USITT DMX-512
Power Consumption: 54W
Dimensions:70(D)*370(W)*347(H)mm
Packing List: 115(D)*440(W)*400(H)mm (1PC)
Packing List: 455(D)*780(W)*425(H)mm (6PCS)
Net Weight: 2.98kg
Gross Weight: 4.00kg

SIZE_34

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

  • a.jpg
  • c_65
  • b_67

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 8-in-1,10-in-1, 12-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Tripod Stand

OPTIONAL
code:
QTY: 1PCS



2_1

Tour Bag

OPTIONAL
code:
QTY: 1PCS
