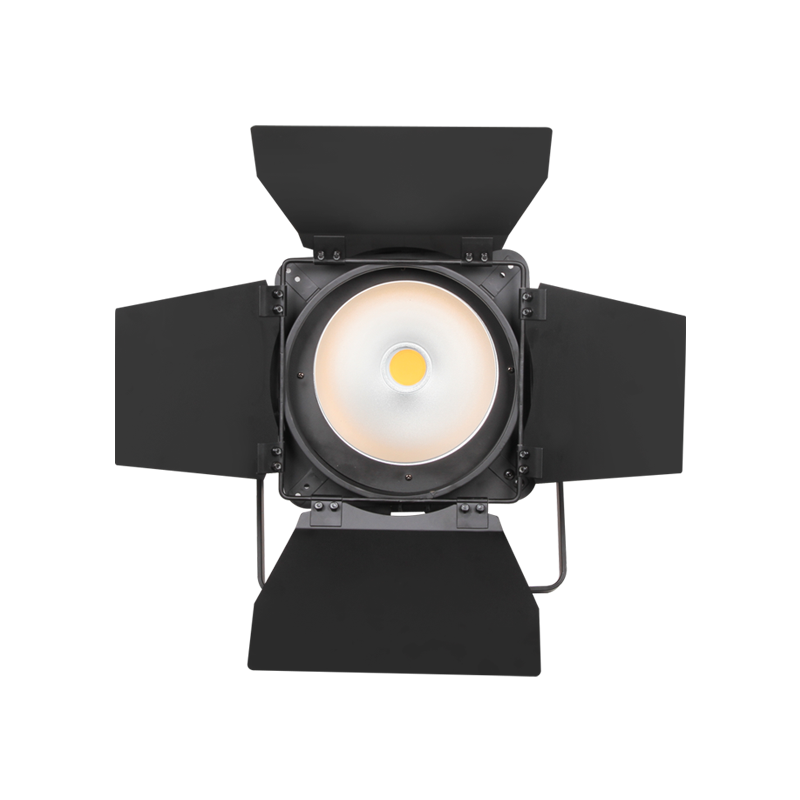

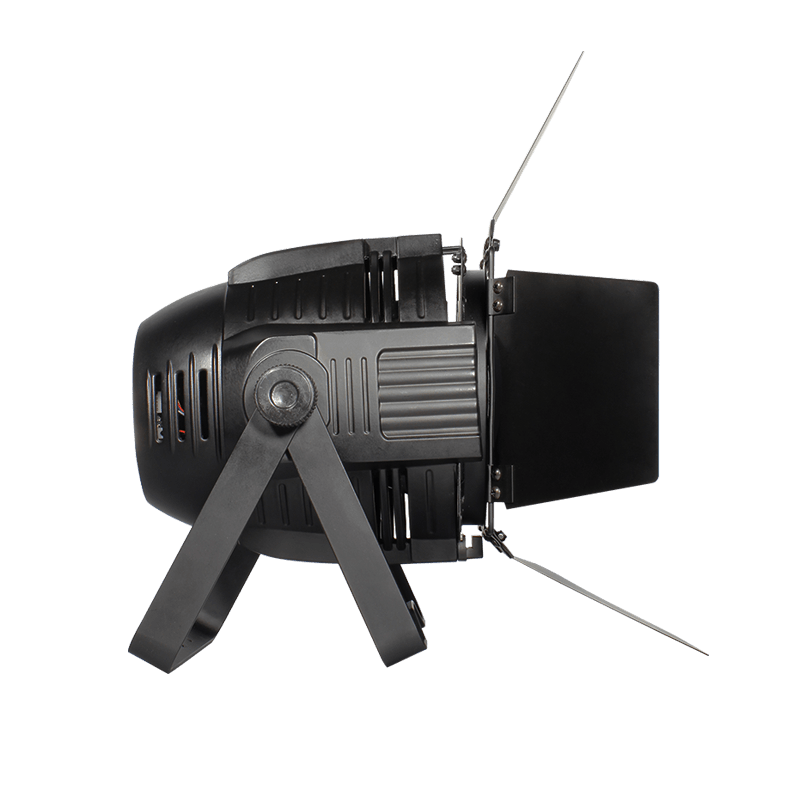

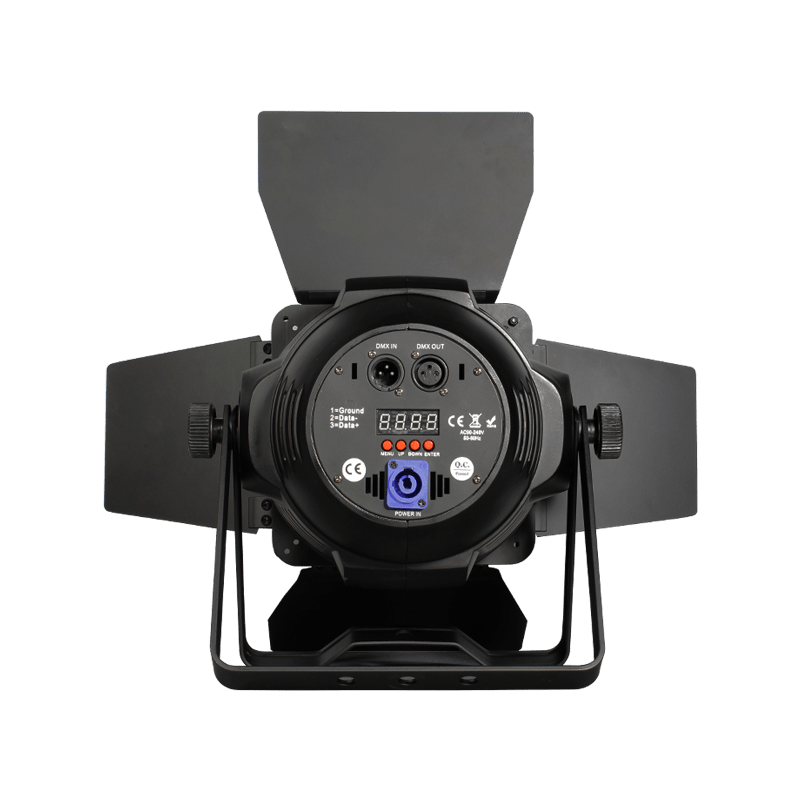

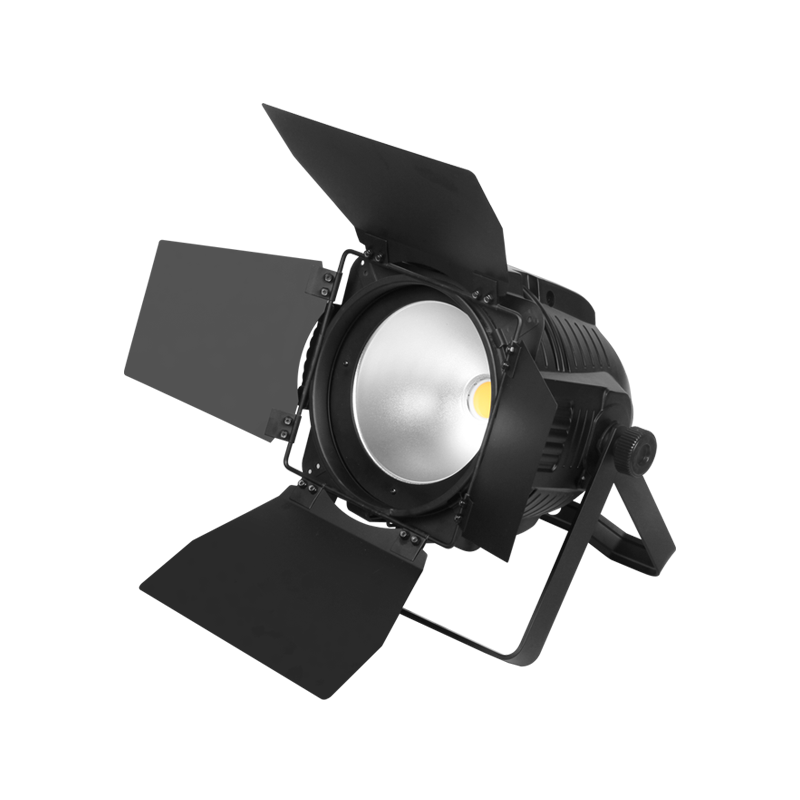

Model: SI-147 PAR 200

The fixtures are fitted in a high efficiency 60° beam angle optic system. The studio PARs feature brightest output and the boldest rendering of the colors you use most, flicker free even at high speed. It delivers projection like natural sunlight. The 2-in-1 version’s temperature and tints could be adjusted to illuminate individual skin tones perfectly, resulting in great look in person and on camera. The bicolors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. The RGBW/RGB version are with infinite color mixing system that brings any colors to lighting designers.They produces very high light output with ultra smooth dimmer control/dimmer curves and even field coverage. The fixture provides variable speed strobe effect, pulse/random strobe effect, built-in running programs and macro effects. The studio PARs are ideal for theatres, houses of worship, conference rooms, special photography, TV sudios, exhibition centres, universities and schools, hospitality, retail, clubs, etc.


  • 1*200W COB LEDs (available for CW/WW/RGBW/RGB/CW+WW)
  • 50000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥90
  • Specific high efficiency optic system with 60°beam angle
  • Flat and even spot image with soft edge
  • Very high light output
  • Housing made by rugged, die cast aluminum alloy
  • Thermally insulated knobs and double aluminum handle for installing
  • Barn door included
  • Color frame as optional
  • 0-100% Smooth and precise linear dimmer
  • Flicker free control even at high speed strobe
  • Different built-in programs and macro effects
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1) DMX
  • channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto operation
  • 4-Button red background LED display
  • POWERCON connector IN
  • 3-Pin XLR connectors IN/OUT
  • Low noise fan cooling system integrated with aluminum heat sink
  • -20°C ~ 45°C max ambient temperature
  • IP20 protection rating

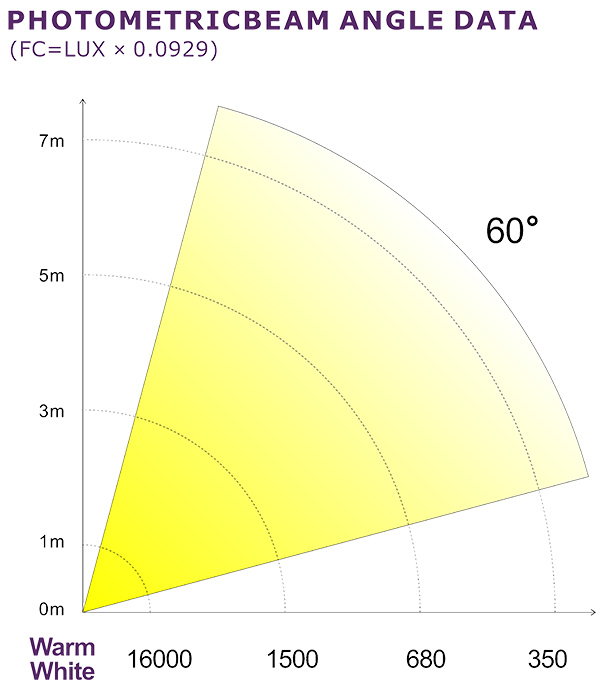

PHOTOMETRIC BEAM ANGLE DATA.jpg
Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*200W COB LEDs (available for CW/WW/RGBW/RGB/CW+WW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1)
MX channels USITT DMX-512
Power Consumption: 260W

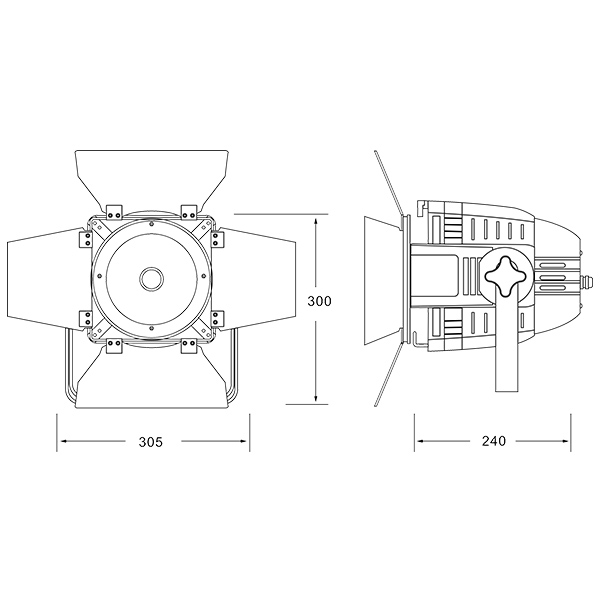

Dimensions:240(D)*305(W)*300(H)mm
Packing Dimensions:255(D)*255(W)*370(H)mm(1PCS)
                                  535(D)*540(W)*402(H)mm(4PCS)
Net Weight: 4.6kg

Gross Weight: 6kgSIZE_39

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

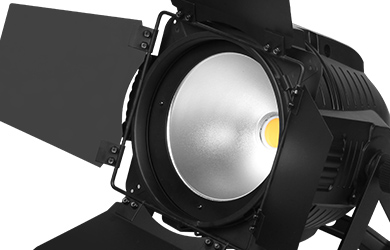

  • a.jpg

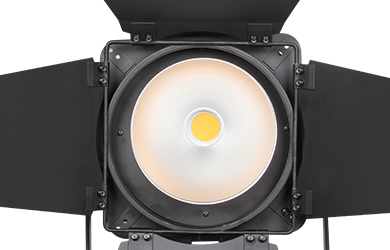

  • b_71

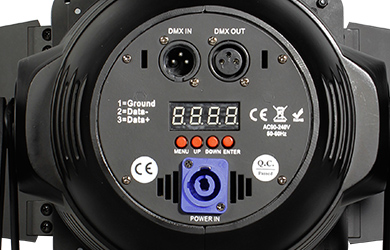

  • c_69

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1, 8-in-1, 10-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Barn Door

STANDARD
code:
QTY: 1PCS



2_1

Color Frame

OPTIONAL
code:
QTY: 1PCS
