LEDARC 2015

Model: W-004 LEDARC 2015

The LEDARC 2015 has an IP65 rated waterproof body with TILT angle adjustable manually to light up your large architectures at any angle with any colors by mixing. It’s with an extremely incredible light output through the 20PCS 15W 5-IN-1 LEDs comparable to a conventional 700W HID color washer. W-004 is available on 3 DMX channel modes for easy application or pro control. It offers a complete solution for specialized architectural projects with high standard requirements.

IP_16

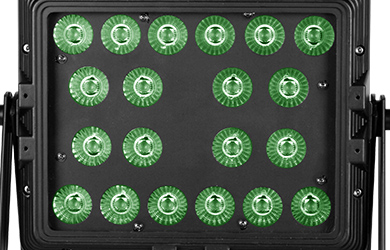

20*15W 5-in-1 LEDs
16.7 millions of colors by mixing

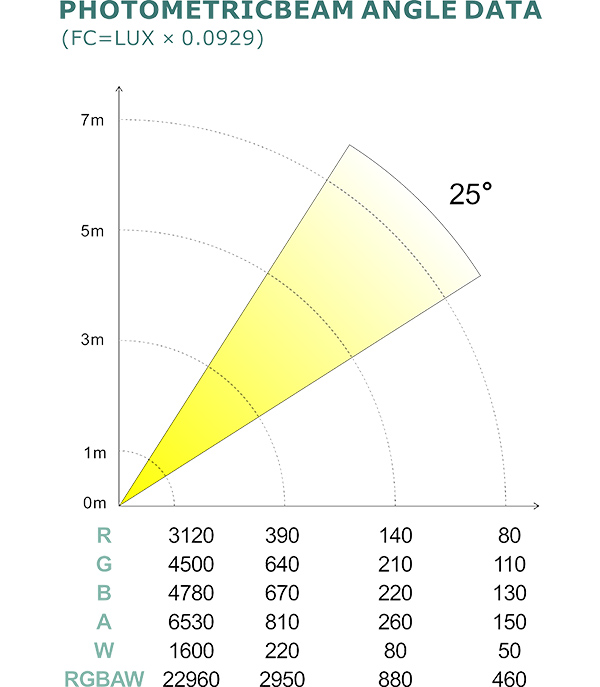

Specific high efficiency 25° optic lens
50,000 hours life span and lower power consumption
Controllable manually for TILT angle adjustment
0-100% Smooth linear LED dimmer
LED rainbow effect
Different operation modes available
Strobe effect with 25 flashes per second and pulse strobe effect
General dimming and blackout for all five colors
5/7/8 DMX channels USITT DMX-512
DMX512, master-slave and sound activated controllable or auto operation

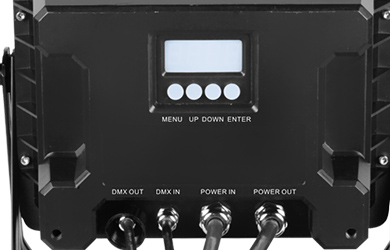

LED display
Waterproof power connectors IN/OUT
3-Pin DMX waterproof connectors IN/OUT
-20°C to 45°C operation temperature
Die-cast aluminum structure
IP65 protection rating

Input Voltage: AC90-260V 50-60Hz
LED Quantities: 20PCS 15W 5-in-1 LEDs
Control Signal:DMX512, master-slave and sound
activated or auto operation
Control Channel: 5/7/8 DMX Channels USITT DMX-512
Power Consumption: 300W

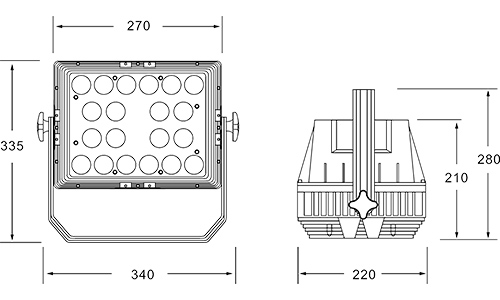

Dimensions: 220(D)*340(W)*280(H)mm
Packing Dimensions: 300(D)*420(W)*360(H)mm
Net Weight: 7.5kg
Gross Weight: 9kg
