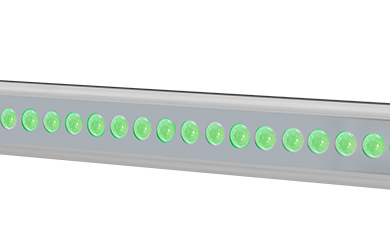

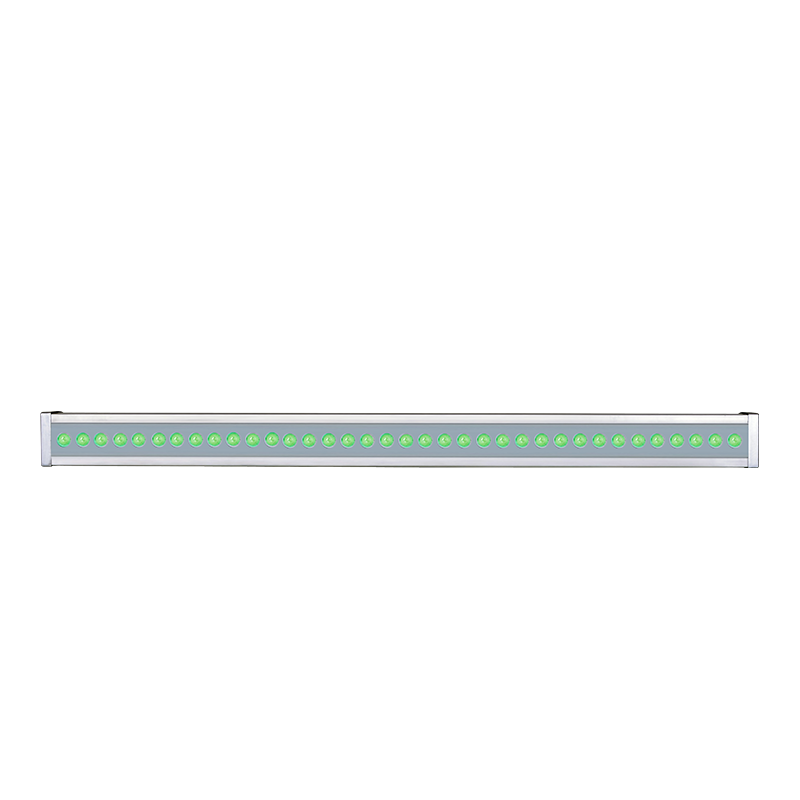

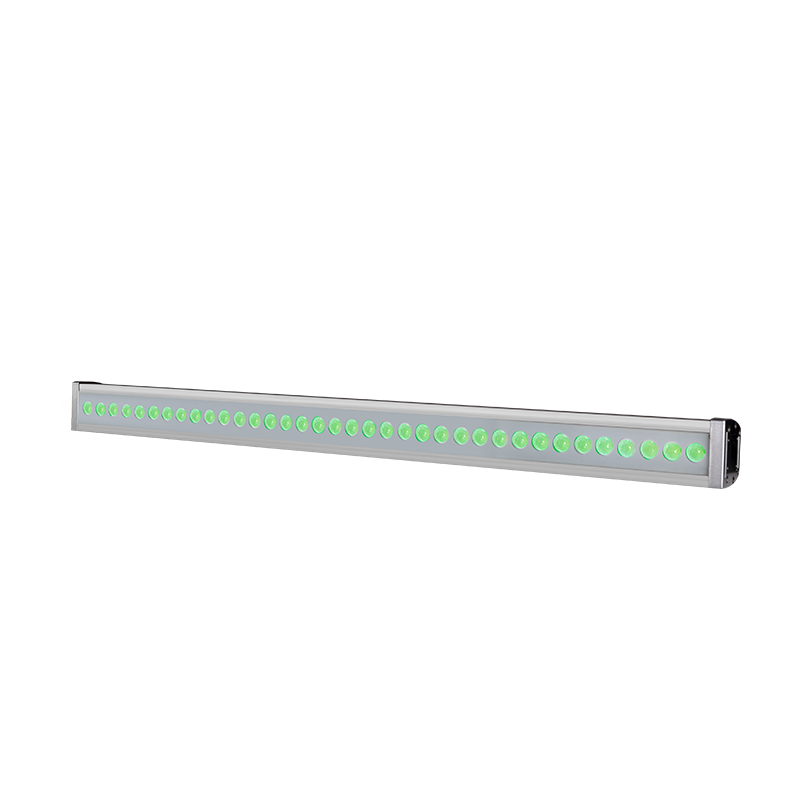

LEDARC 363T

Model: W-011A LEDARC 363T

The ledarc 363t has an IP65 rated waterproof line body with TILT angle adjustable manually to light up your small architectures at any angle with any colors by mixing. There are 2 versions available basing on onsite need . It offers a complete solution for specialized architectural projects with high standard requirements, like mansions, theaters, casinos, gardens, bridges, shopping centers, theme parks, and entertainment plazas

IP_16

16.7 millions of colors by mixing
Specific 25 degree high efficiency optic lens
50,000 hours life span and lower power consumption
Controllable manually for TILT angle adjustment
LED shutter effect
Smooth LED dimming
LED rainbow effect
Macro effect
Strobe effect with 25 flashes per second and pulse effect
General dimming and blackout for all four colors
3/7 DMX channel USITT DMX-512
DMX512, master-slave and sound activated controllable or auto operation
LED display

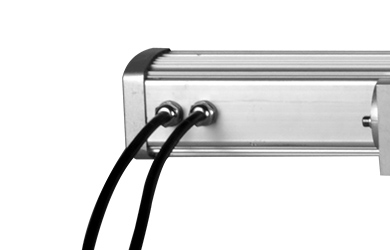

Waterproof power connectors IN/OUT
3-Pin DMX waterproof connectors IN/OUT
-20°C to 45°C operation temperature
Die-cast aluminum structure
IP65 protection rating

Input Voltage: AC90-260V 50-60Hz
LED Quantities: 36PCS 3W 3-IN-1 LEDs
                         36PCS 3W LEDs (R,G,B)
Control Signal:DMX512, master-slave and sound
                       activated or auto operation
Control Channel: 3/7 DMX Channels USITT DMX-512
Power Consumption: 120W

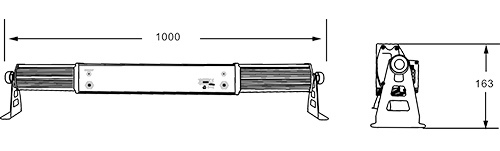

Dimensions: 76(D)*1000(W)*163(H)mm
Packing Dimensions: 150(D)*1110(W)*135(H)mm(1PCS)
                                   320(D)*1110(W)*300(H)mm(2PCS)
Net Weight: 3.00kg
Gross Weight: 4.00kg

Promotional brochures
Manuals

DMX Channels

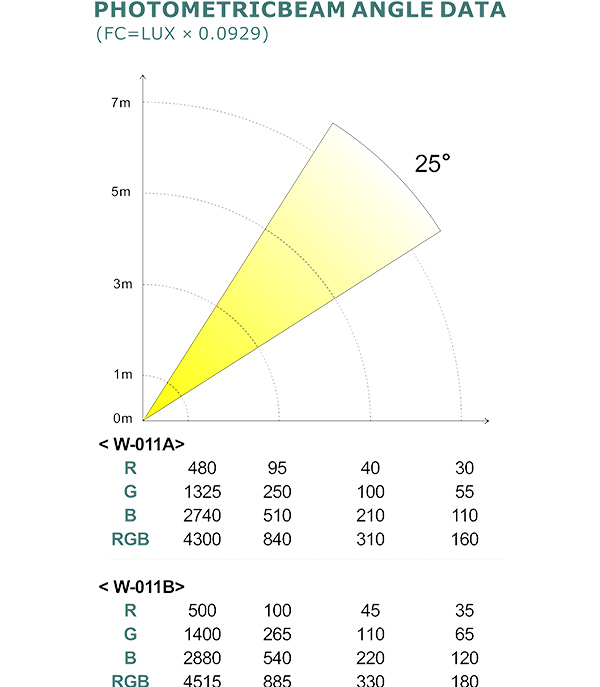

Photometrics
