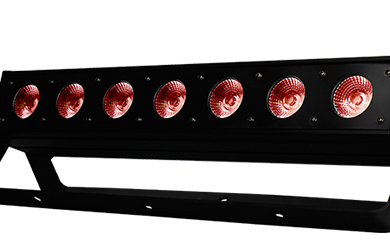

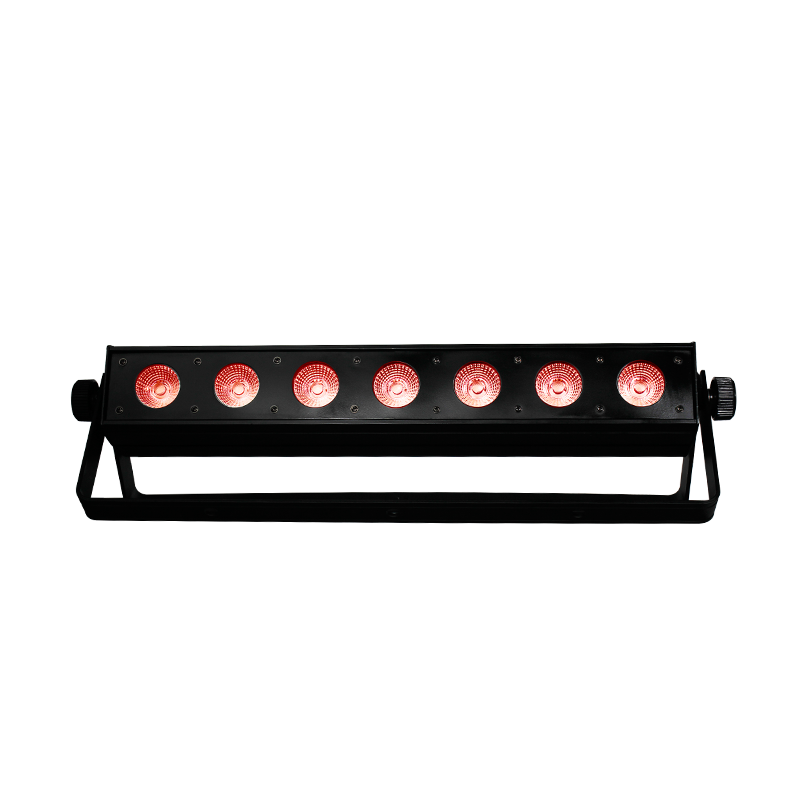

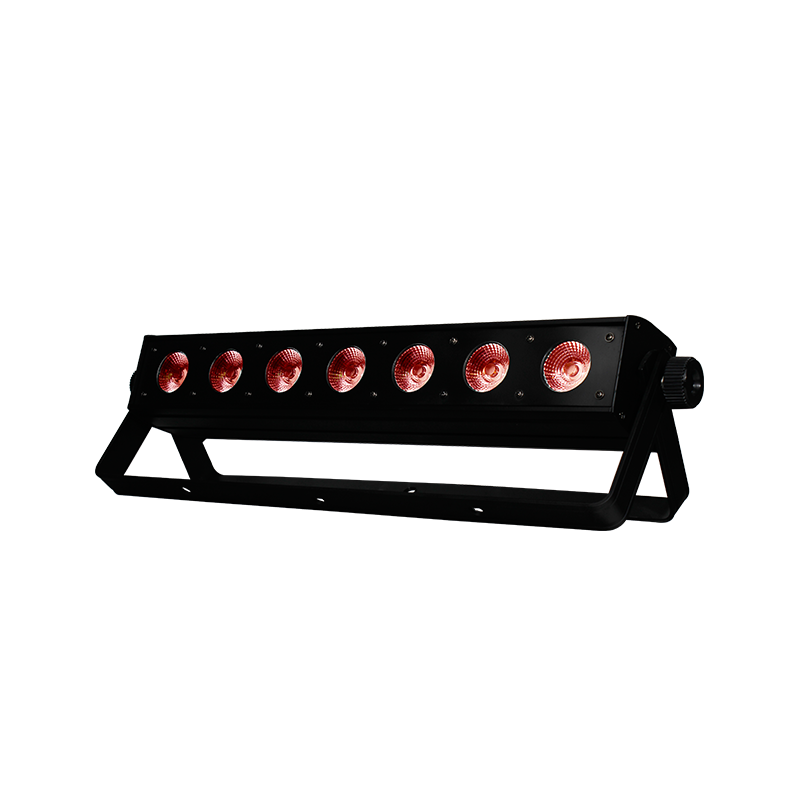

PIXARC 730T

Model: W-021 PIXARC 730T

The PIXARC 730T is a multi-purpose indoor static luminaire with ultimate linear evolution within our architectural range. It features following color high power 7*30W 3-in-1 LEDs (RGB)
as its light source, presenting a stunning smooth and sophisticated profile. It’s perfect for all kinds of indoor applications. The fixture is equipped with high performance and high efficiency 40mm PMMA optics that help to give an even optimum light projection for extremely high requirement wall washing.

The fixtures is capable of offering pixel mapping advantage. In this way, the lighting designer could program whatever effects they could imagine with color changing and color chasing. The brightness is controlled by the precise driving of the LEDs so that it delivers accurate light output management. The PIXARC 730Tis controllable via DMX, auto operation or sound control.

The PIXARC 730T is the ideal fixture for all indoor architectural illumination like mansions, theaters, casinos, gardens, shopping centers, and entertainment plazas, as well as show venues, TV studios or exhibition applications.

7*30W 3-in-1 LEDs (RGB)
16.7 Millions of colors mixable
50,000 hours life span and lower power consumption
Stunning light output with high intensity and high color rendering index

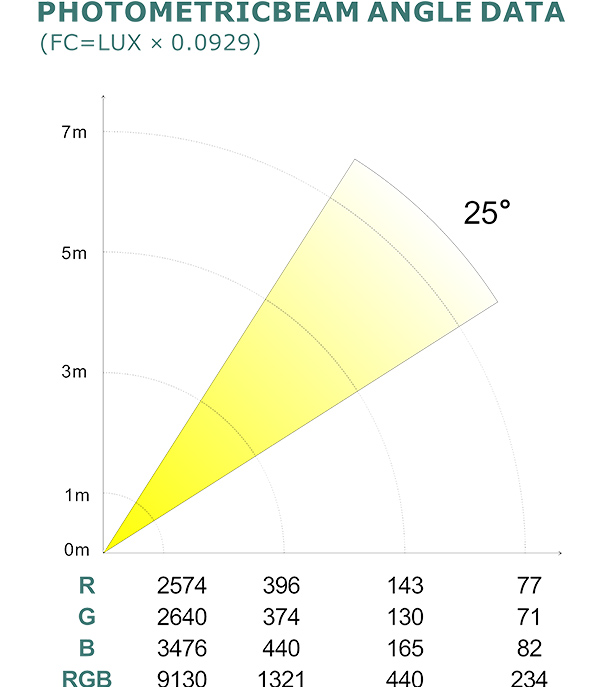

High efficiency 40mm PMMA 25° optic lens
0-100% Smooth linear electronic dimmer
Flicker free control capability
25T/s high speed LED shutter/strobe effect with variable speed
Dynamic macro effect with variable speed
12 Internal color running programs, available for strobe effect together
13 DIY internal color running programs with background.foreground colors changeable, available for strobe effect together
2CH/3CH/5CH/8CH/21CH/23CH DMX Channel modes
DMX512, master-slave and sound activated controllable or auto operation
Rugged, die cast aluminum alloy, compact and light weight
Noise free natural cooling system
Front window with tempered glass

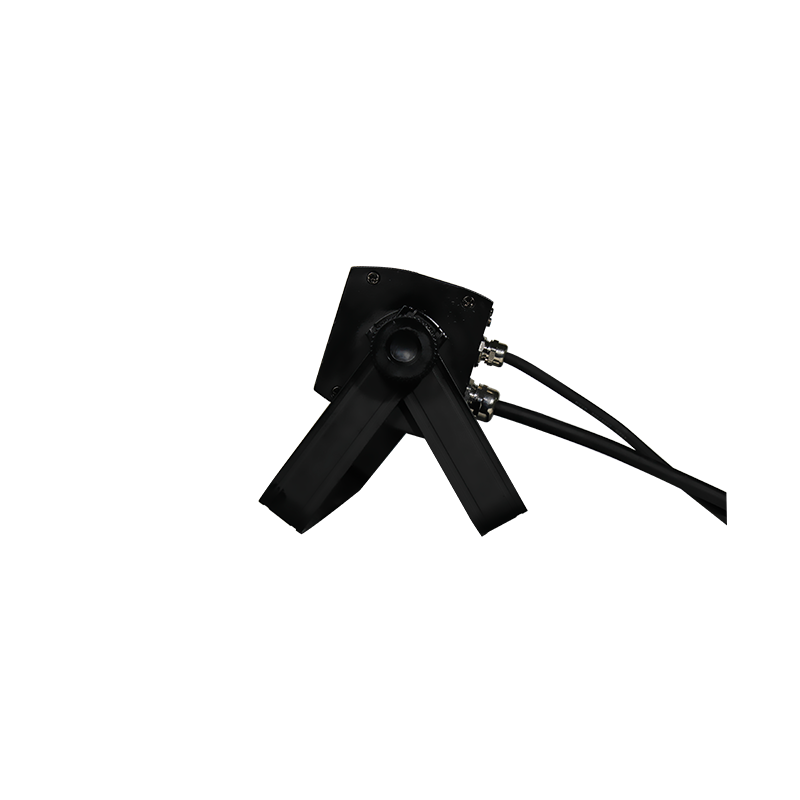

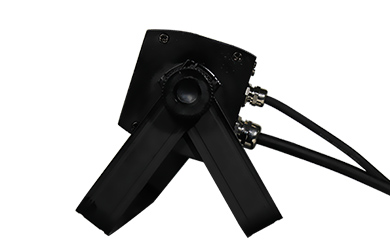

2 Multi-positioning brackets for floor projection or hanging projections
Manual TILT angle adjustment

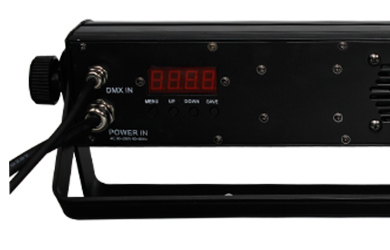

4-Button red LED display

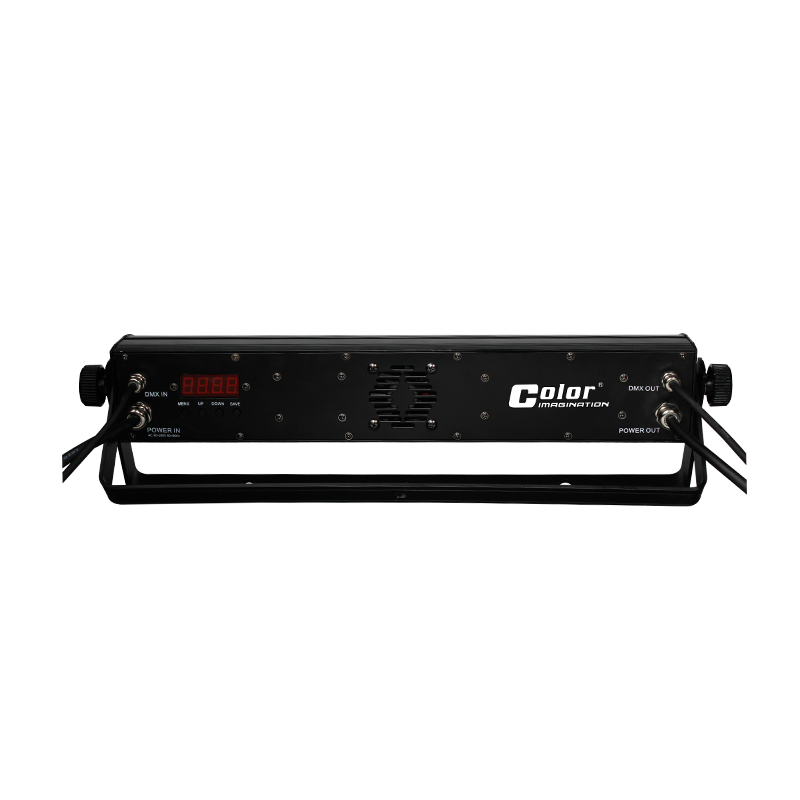

Powercon connectors IN/OUT
3-Xin XLR DMX connectors IN/OUT
-20℃ to 45℃ operation temperature
IP20 protection rating

Input Voltage: AC90-260V 50-60Hz
LED Quantities: 7*30W 3-in-1 LEDs (RGB)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 2CH/3CH/5CH/8CH/21CH/23CH DMX Channels
Power Consumption: 210W

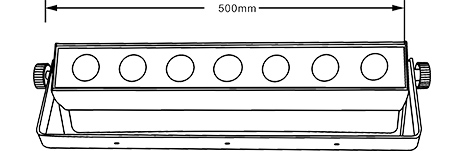

Dimensions: 76(D)*500(W)*163(H)mm
Packing Dimensions: 170(D)*700(W)*250(H)mm
Net Weight: 3.00kg
Gross Weight: 4.10kg
