PIXELBAR 1403WW

Model: SI-223 PIXELBAR 1403WW

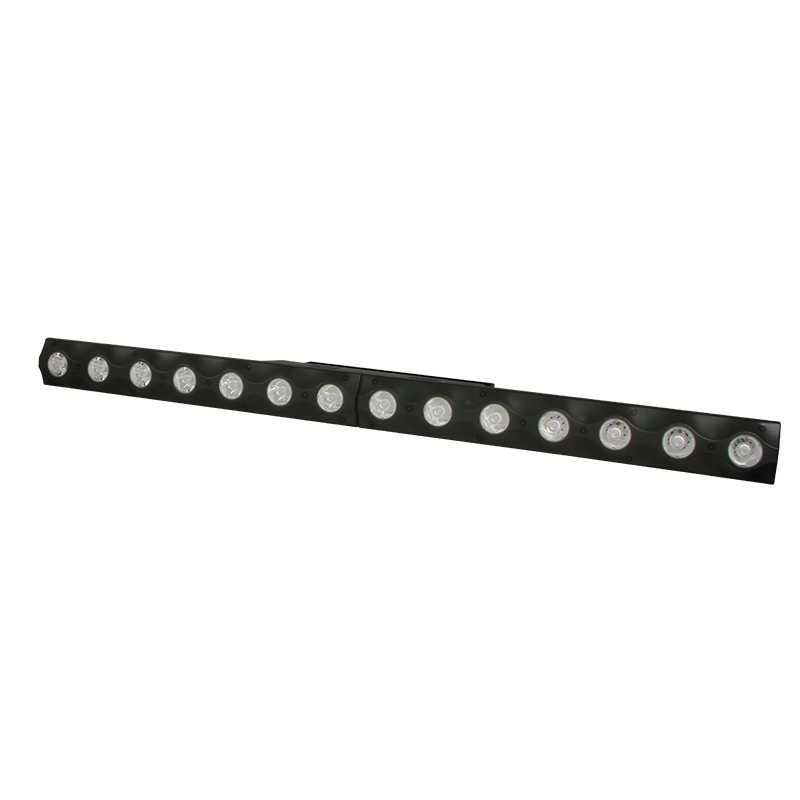

PIXELBAR 1403WW is a cool static bar fixture with pixel mapping capability by 14*3W warm white LEDs and 56*0.2W SMD5050 3-in-1 RGB high-efficiency LEDs controllable by 12 sections, creating stunning aerial effect with foreground beam effect and background color effect.

The fixture provides 4 DMX channel models for simple control or professional programming. It’s available for 59 preset programs with speed control.

The PIXELBAR is a friendly designed light weight fixture with multifunctional bracket to allow flexible mounting for truss hanging or floor stand.

The PIXELBAR is perfectly fit for back stage vivid effect, live concerts, TV studios, DJ shows, clubs, etc.

14*3W warm white LEDs
Each LED controllable individually (Pixel mapping)
56*0.2W SMD5050 3-in-1 RGB LEDs
12 Sections controllable individually
50000 hours life span and low power consumption
4°High efficiency optic lens
Identical foreground beam effect with stunning color rendering back ground effect
0-100% Smooth linear LED dimmer
59 Preset programs with speed adjustable
1-25T/s strobe effect
6/8/16/60 DMX channels USITT DMX-512
DMX512, master-slave, and sound activated controllable or auto operation
Sound control with sensitivity adjustment
LED display with 4 control buttons

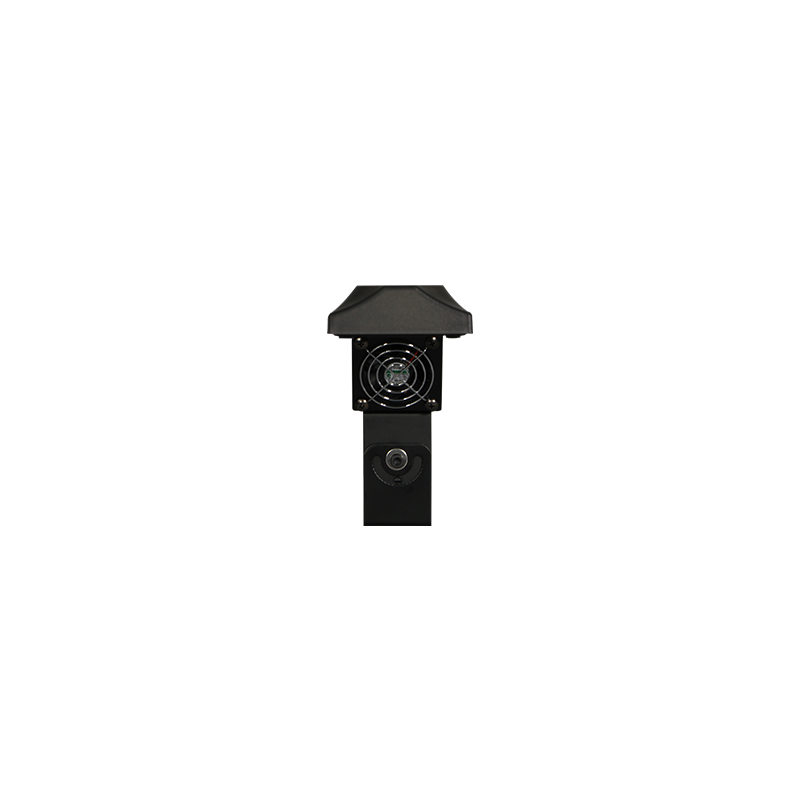

Ultra lower noise and efficient FAN cooling system
Powercon connectors IN/ OUT

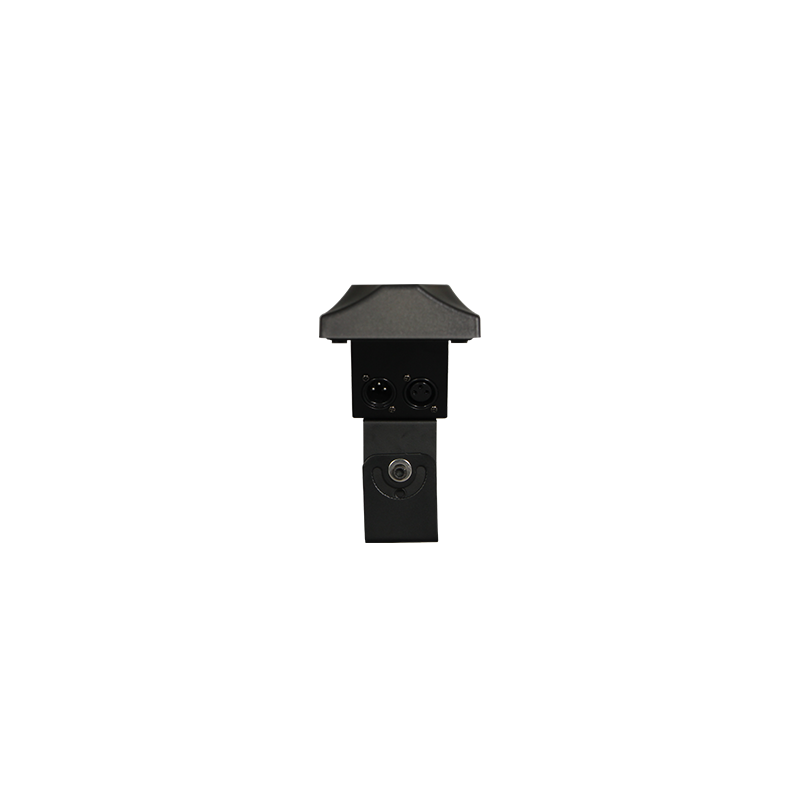

3-Pin DMX connectors IN/OUT
Multifunctional mounting bracket for easy connection setup
IP20 protection rating
-25℃ to 45℃ ambient temperature
1*Safety attachment point

Input Voltage:AC100-240V 50/60Hz
LED Quantities: 14*3W warm white LEDs
56*0.2W SMD5050 3-in-1 RGB LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 6/8/16/60 DMX channels
Power Consumption: 65W
Dimensions: 80(D)*1000(W)*130(H)mm
Packing Dimensions: 130(D)*1060(W)*150(H)mm
Net Weight: 3.2kg
Gross Weight: 4.2kg
