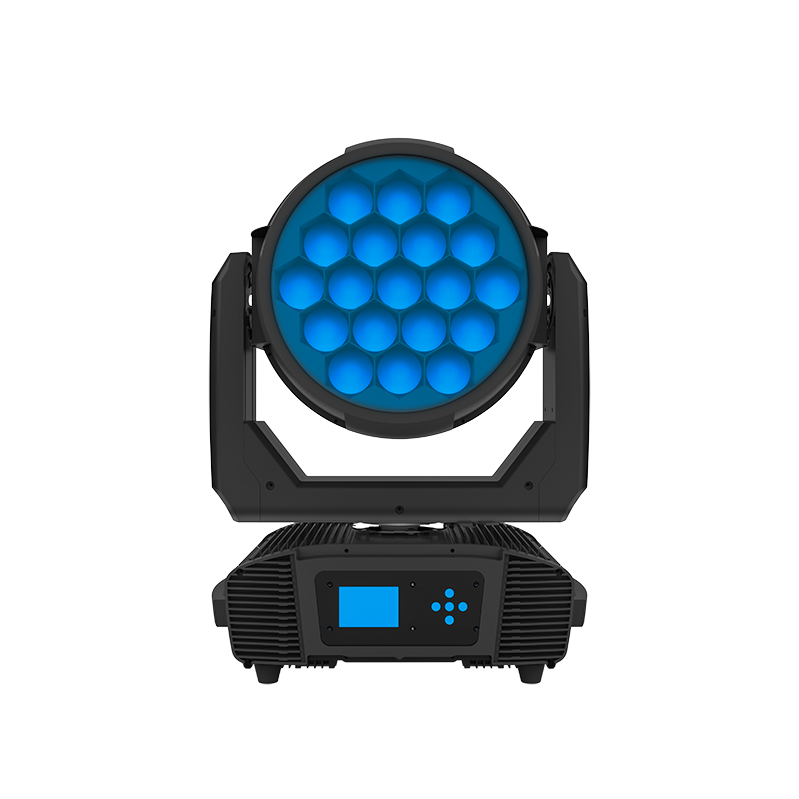

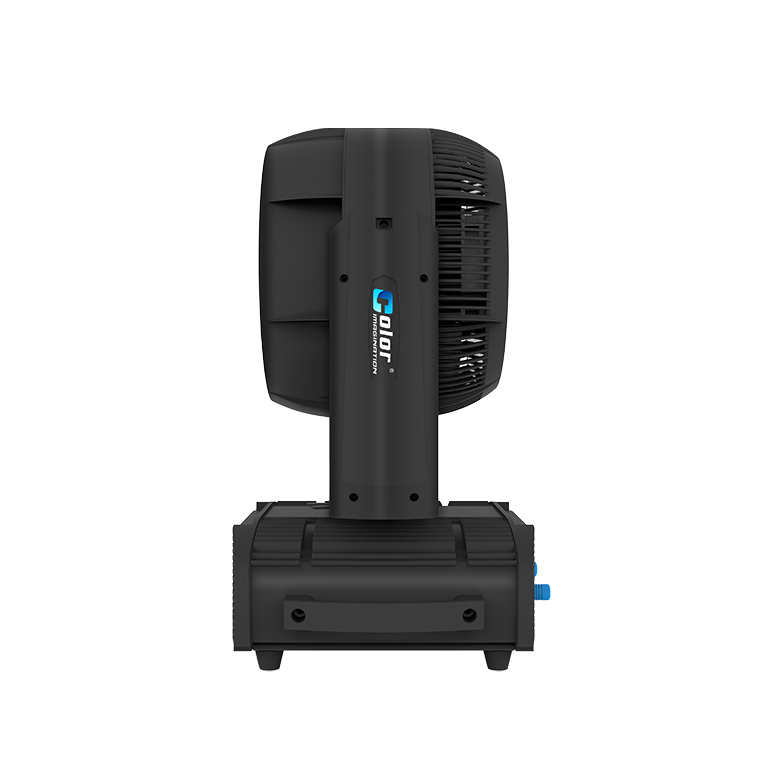

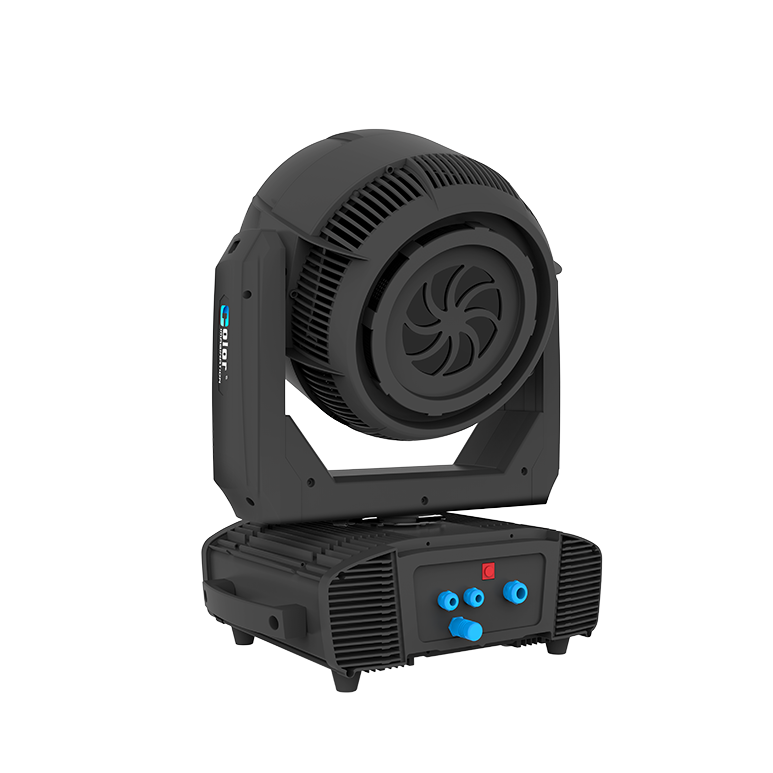

Model: SI-267 AQUAZOOM 1960

Today more and more moving heads are being exposed to wet, humid and extreme conditions. With numerous multi-environmental application requirements, Color Imagination recently launched an IP65 rated LED moving head wash.


The AQUAZOOM 1960 is an ultra high power LED based moving head wash with smart and compact stylish housing with a smooth, fast and quiet motorized zoom from 5°-62°range. It features 19*60W OSRAM 4-in-1 RGBW LED sources with 3 zones controllable individually which not only allows you to create an endless range of color variations, but also to use each zone of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The AUQAZOOM is flicker-free fixture with even, soft edge and pure color mixing coverage. It provides variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns, pre-programming linear color temperature adjustment options, and tungsten lamp simulation to it’s users for easy operation. It also comes with incredibly fast and smooth PAN/TILT movement, simple and complex DMX channel profiles. The 2*1/4 turn  fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It provides friendly PAN/TILT locks for safety during transportation.



The AQUAZOOM 1960 supports DMX, RDM (Remote Device Management), Art-Net protocol (Optional), Wireless Solution wireless system built-in (Optiona).



The AQUAZOOM 1960’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.


  • Light Source
  • Source: OSRAM LE RTDUW S2WP 60W LED
  • 18000lm output
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

  • Optics
  • 19PCS high efficiency acrylic lens
  • Optimized light pipe for higher LED efficiency
  • 5°-62°Smooth and quiet linear motorized zoom with fine control

  • Movement
  • PAN movement: 630°/540°/360°optional (8/16 bit)
  • PAN movement: 270°/180°/90°optional (8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible

  • Colors
  • 3 Zones controllable individually
  • Sophisticated 4 colors RGBW mixed
  • Even and soft light coverage with pure mixing
  • Preset color macros
  • 2800K-3200K virtual tungsten lamp simulation
  • 3200K-8000K linear color temperature adjustment
  • Preset dynamic patterns with variable speed and bi-directional rotation
  • Preset static patterns
  • Preset foreground color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer
  • Preset background color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer

  • Strobe Effect
  • 1-25T/sec high speed shutter/strobe effect with variable speed
  • Random strobe effect with variable speed
  • Preset pulse strobe effect

  • Dimming System
  • 0-100% Smooth linear LED dimming with fine control
  • 2 Dimming speed modes, fast/smooth
  • 4 Dimming curves, linear/square law/Inv. Square law/S curve



  • Control System
  • 14/20/30/37 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound control sensitivity adjustable
  • Multi preset internal programs
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET (Optional)
  • Wireless Solution’s wireless receiver system built-in (Optional)
  • Shielded input signal protection for stable signal without interference
  • IP rated RJ45 etherCON IN/OUT (Optional as Art-NET)
  • IP rated signal cables IN/OUT

  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain

  • Display System
  • 2.4"TFT LCD display
  • English/Chinese menu
  • 4 Control buttons
  • Battery back-up for menu preset
  • 180°Reversible for LCD display
  • Display auto OFF

  • Cooling System
  • Advanced noise free cooling system integrated aluminum and copper with liquid
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • PowerCON IN/OUT with swtich and fuse
  • 1370W Power consumption

  • Housing
  • Moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black
  • Friendly PAN/TILT locks for better fixture protection

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point

  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating
  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 24kg
  • G.W.: 27kg

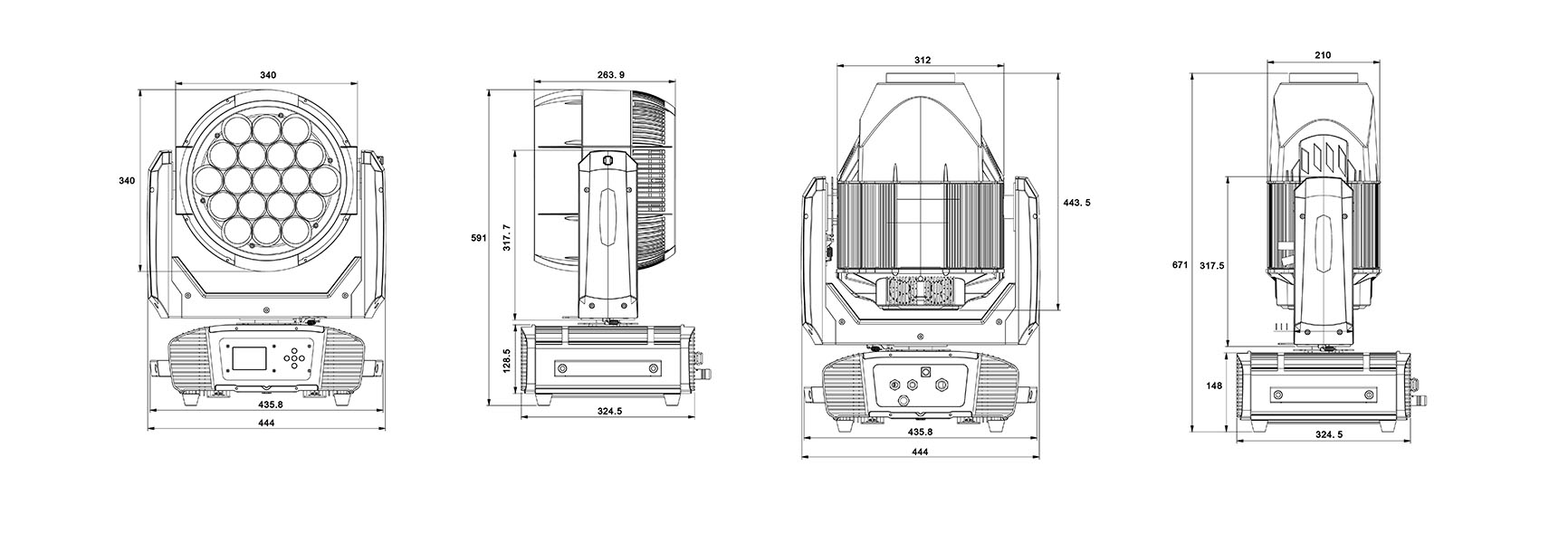

  • Dimensions
  • Product Dimensions:324.5(D)*444(W)*591(H)mm
  • Packing Dimensions: 530(D)*650(W)*700(H)mm
   SI-265 6 7尺寸图-01.jpg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 1PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
