BEAM 461

Model: SI-163B BEAM 461

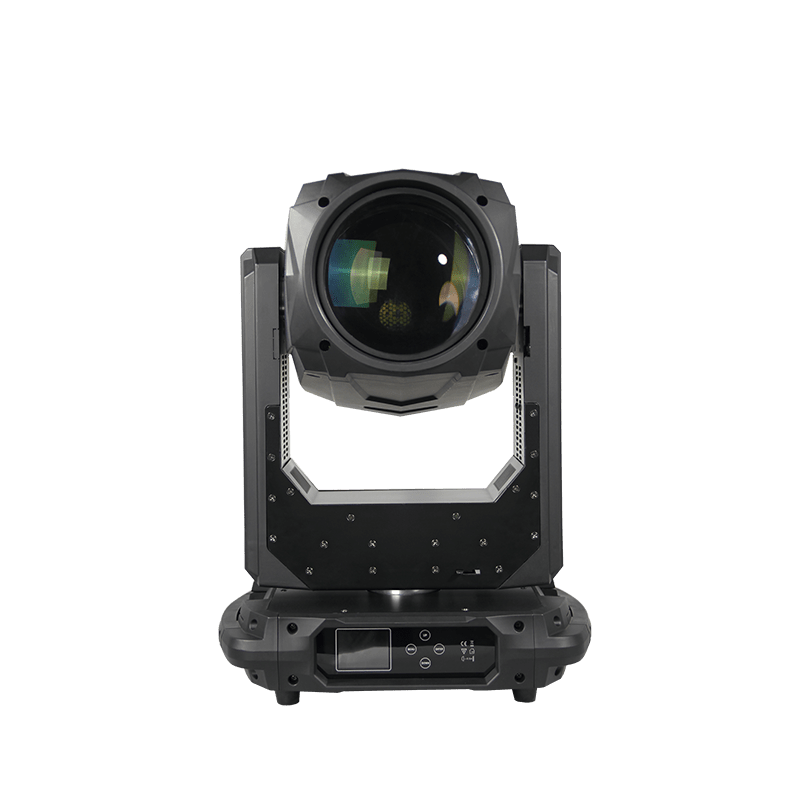

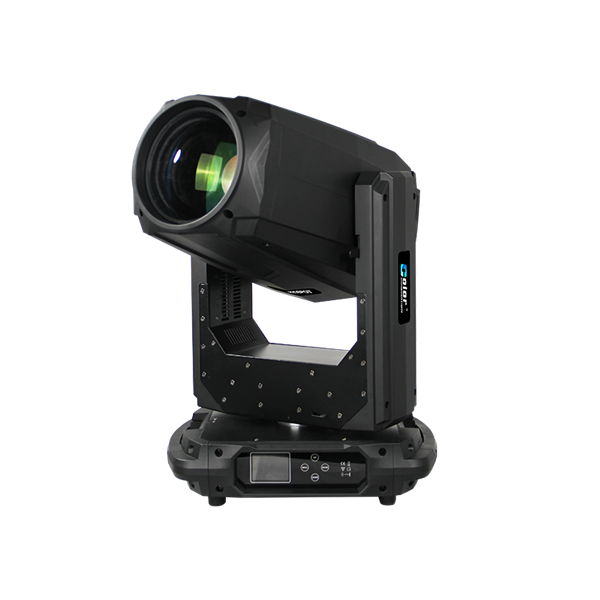

The Color Imagination Moving Head Beam 461 is a hybrid entertainment moving head that integrates BEAM+WASH in one fixture (BEAM 461). It features a new and reliable OSRAM SIRIUS HRI 461W lamp (25R) with revolutionary technology. The electronic zoom ranges from 2.5°-50°with smooth and fast advantage (SI-163B). The fixture offers a short arc and compact design with a bright, even field of light, equating to a highly saturated color palette. The lamp equips with the reflector built-in, providing perfect lamp alignment. It is a fast and quiet moving head with a sharp parallel beam (perfectly defined edges), even spot and wash. This head offers a full complement of professional characteristics, including CMY+CTO, a rotating gobo wheel (SI-163A), static gobo wheel, color wheel, 3 kinds of prism effect, variable frost filter, motorized linear focus, motorized ZOOM (SI-163B), variable speed shutter/strobe; and mechanical dimmer, full color 180° reversible TFT display with 4 control buttons and battery backup for display power,etc.

The fixture supports DMX, RDM (Remote Device Management), Art-Net protocol, Wireless Solution wireless system built-in.

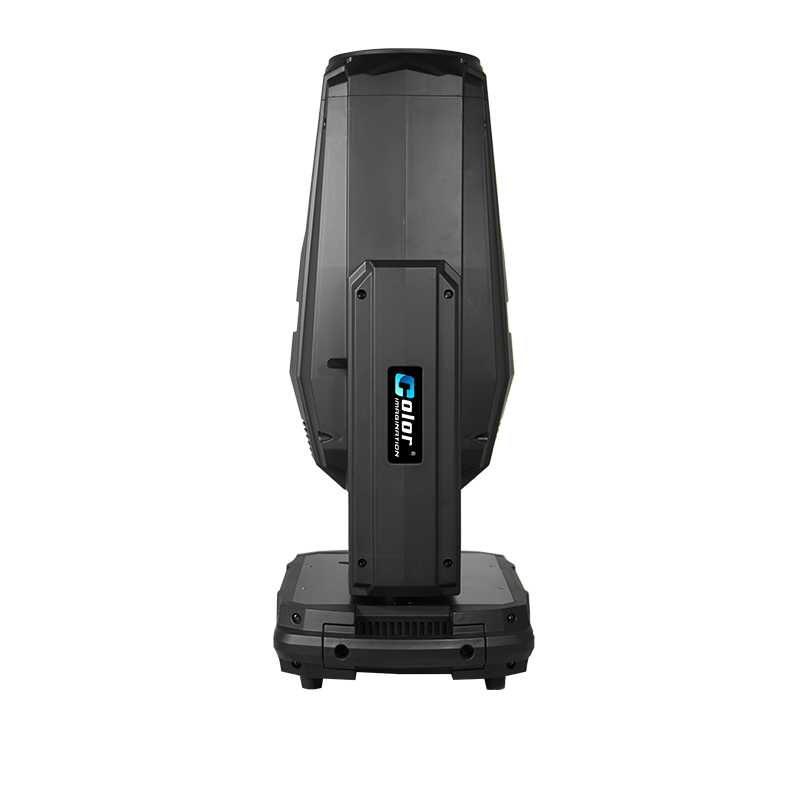

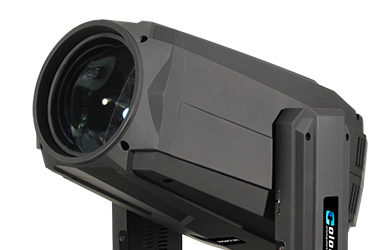

The fixture’s exterior housing is beautifully balanced basing on a jewel-like design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the BEAM 461 achieves more than just a striking look. It provides friendly PAN/TILT locks for safety during transportation.

It’s fast and quiet operation moving head. The fixture is tuned with proper refresh rate and gamma brightness for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.

A new and reliable OSRAM SIRIUS HRI 461W lamp (25R) included
Electronic ballast
1500 Hours lamp life span
No need for adjustment of reflector or lamp

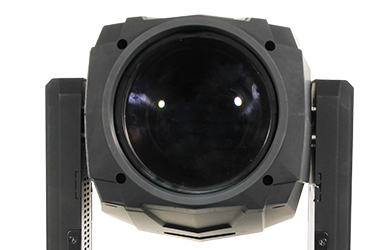

High resolution anti-reflection glass lenses
540°PAN and 270° TILT movement
Automatic Pan / Tilt position correction
16-Bit smooth and precise resolution for PAN/TILT movement
Fast, quiet and accurate Pan / Tilt positioning
Friendly PAN/TILT locks for better fixture protection
High precision dual flag mechanical 0-100% dimming system
1 Rotating gobo wheel with 9 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing available
15.4mm external diameter, 13mm image diameter (Gobo Size)
1 Static gobo wheel with 15 gobos plus open (including gobo reducers and an animation effect gobo)
Selectable Gobo-Shake function (for both gobo wheels)
Full CMY color mixing system with linear CTO color correction
Fine control available for CMY system
Color wheel with 7 dichroic colors plus open (available for half color mode)
Variable direction rainbow effect with speed adjustable
16-facet circular prism and 6-facet linear prism with speed adjustable and variable direction
Combined capability for both prisms
Variable Frost Filter (Hybrid effect for Wash)
Macro-function for gobos/prism combinations
Mechanical shutter and variable speed strobe effect
Preset variable/random strobe and dimming pulse effects
Motor driven focus from near to far
Linear motorized ZOOM (2.5°-50°)
ZOOM range: 2.5°-10° beam application; 8°–50° spot application
36/38/56 DMX channels USITT DMX-512
DMX512, master-slave, and sound activated controllable or auto operation
DMX recorder and edit function integrated
Sound control with sensitivity adjustment
RDM available (Remote Device Management)
Art-NET available
W-DMX wireless receiver built-in

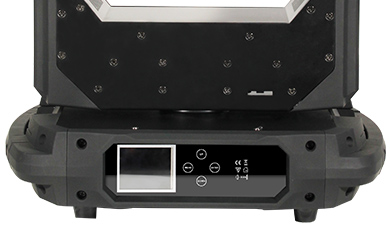

2.4" TFT LCD display (320*240pix) with 4 control buttons and battery back-up for menu preset
180°Reversible for LCD display
LCD display switch-off automatically after 60 seconds
DMX signal monitoring indicator available
Software up-datable through DMX connectors
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over heat protection management

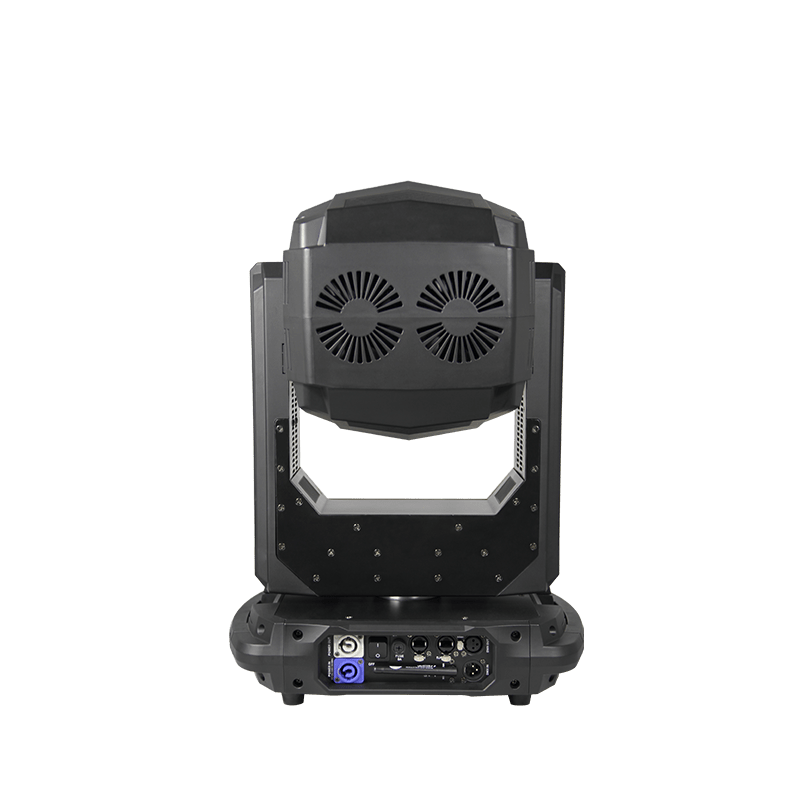

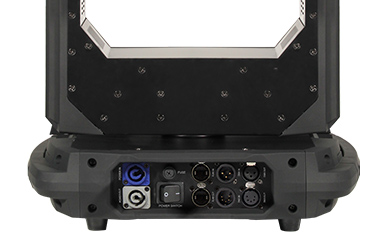

Powercon IN/ OUT with power switch and fuse
RJ45 etherCON IN/OUT (Art-NET)
3-Pin XLR DMX connectors IN/OUT
IP20 protection rating
-35℃ to 45℃ ambient temperature
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point
CE (EMC/LVD) and RoHS certified

Input Voltage: AC100-240V 50/60Hz
Light Source: 1* OSRAM SIRIUS HRI 461W lamp (25R)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 36/38/56 DMX channels
Power Consumption: 900W
Dimensions:280(D)*400(W)*686.1(H)mm
Packing Dimensions:480(D)*600(W)*787(H)mm
Net Weight: 28kg
Gross Weight: 33kg
