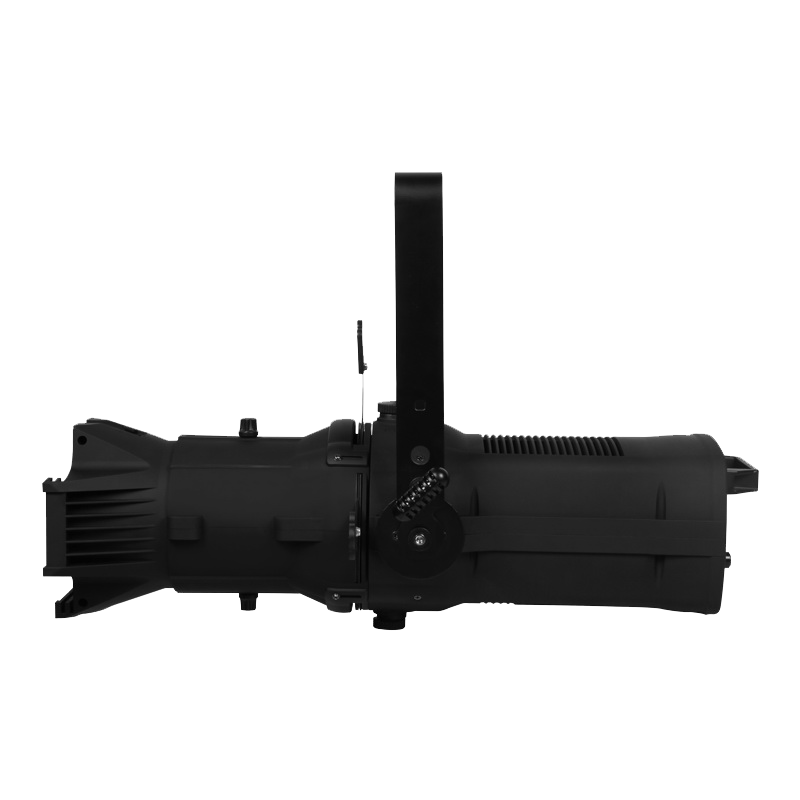

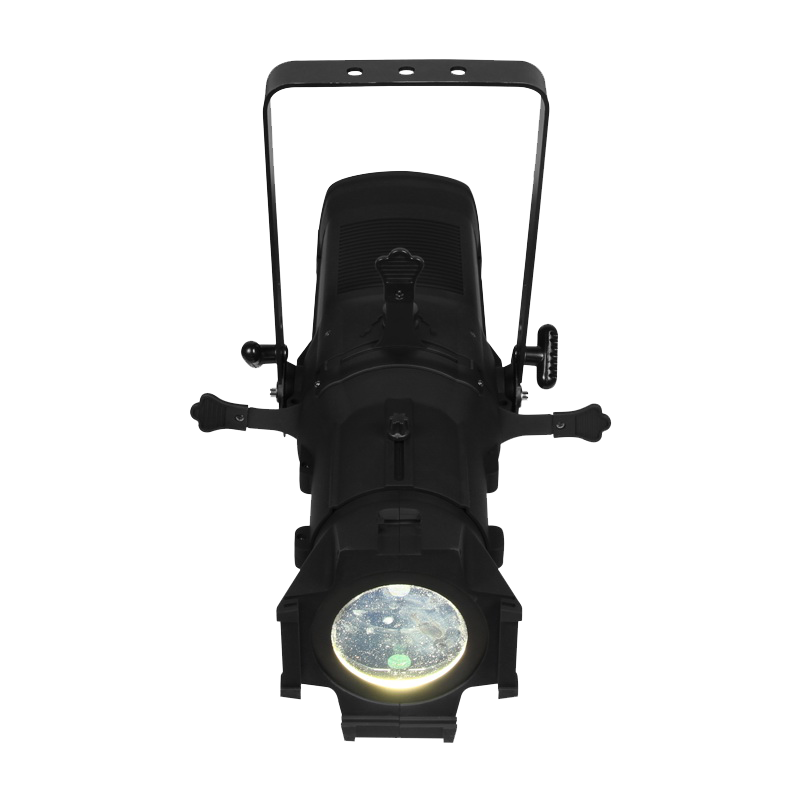

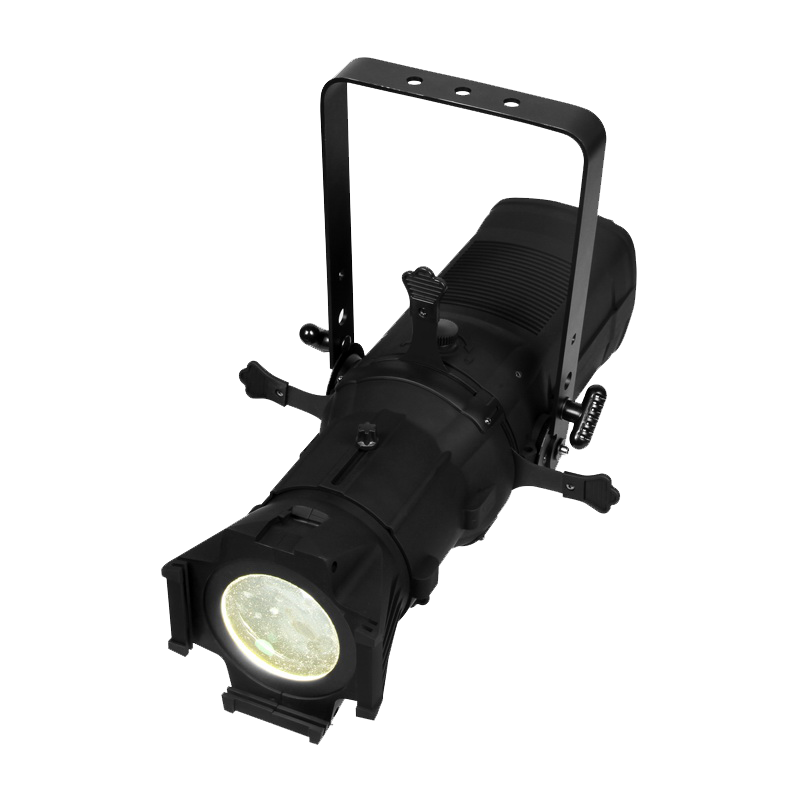

Model: SI-141 PROFILE 300/200/120

PROFILE 300/200 is a high definition SPOT lighting system with the lens tube interchangeable, 5°/10°/19°/26°/36° field angles optional for on-site professional application need, available for different options:

PROFILE 300CW: 1*300W cool white 5600K COB LED
PROFILE 300WW: 1*300W warm white 3200K COB LED
PROFILE 200CW: 1*200W cool white 5600K COB LED
PROFILE 200WW: 1*200W warm white 3200K COB LED
PROFILE 120CW: 1*120W cool white 5600K COB LED
PROFILE 120WW: 1*120W warm white 3200K COB LED
PROFILE 200F: 1*200W 4-in-1 COB LED
PROFILE 200T: 1*200W 3-in-1 COB LED
PROFILE 200D: 1*200W 2-in-1 COB LED(Cool White+Warm White)

Color Imagination recently launched a totally new series of high definition and ultra quiet LED studio lights into our product range, basing on our driving force, light quality. The housing is made by high intension fireproof black ABS, compact and light weight. The PROFILEs feature brightest output and the boldest rendering of the colors you use most, flicker free even at high speed. It delivers projection like natural sunlight. The 2-in-1 version’s temperature and tints could be adjusted to illuminate individual skin tones perfectly, resulting in great look in person and on camera. The bicolors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. The PROFILEs come with 3 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame, gobo slot and manual iris system are optional. The PROFILEs are ideal for theatres, houses of worship, conference rooms, special photography, TV sudios, exhibition centres, universities and schools, hospitality, retail, clubs, etc.


  • 1*300W/200W/120W COB LEDs(available for CW/WW/RGBW/RGB/CW+WW)
  • 50,000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥95
  • Optimized high definition optical system for improved photometric
  • performance and field uniformity
  • Projector-quality, high contrast aspheric lens
  • Glass reflector that removes greater than 90% infrared radiation (heat)
  • and reflects greater than 95% of visible light
  • Lens tube interchangeable with filed angles available for
  • 5°/10°/19°/26°/36°
  • 5°/10° Version with bigger lens tube(higher in cost)
  • Flat and even spot image
  • Smooth manual focus system
  • Beam edge continually adjustable hard-to-soft
  • Housing made by high intension fireproof black ABS
  • Thermally insulated rear handle
  • Thermally insulated knobs and single aluminum handle for installing
  • 3 Metal spot cutting slots
  • Barn door included
  • Glass/Metal gobo slot as optional
  • Color frame as optional
  • Manual IRIS system as optional
  • 0-100% Smooth and precise linear dimmer
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1) DMX channels
  • USITT DMX-512
  • DMX512, master-slave, and sound control or auto operation
  • 4-Button LCD display
  • POWRECON connector IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Low noise fan integrated with copper liquid cooling system
  • -20°C ~ 45°C Max ambient temperature
  • IP20 protection rating

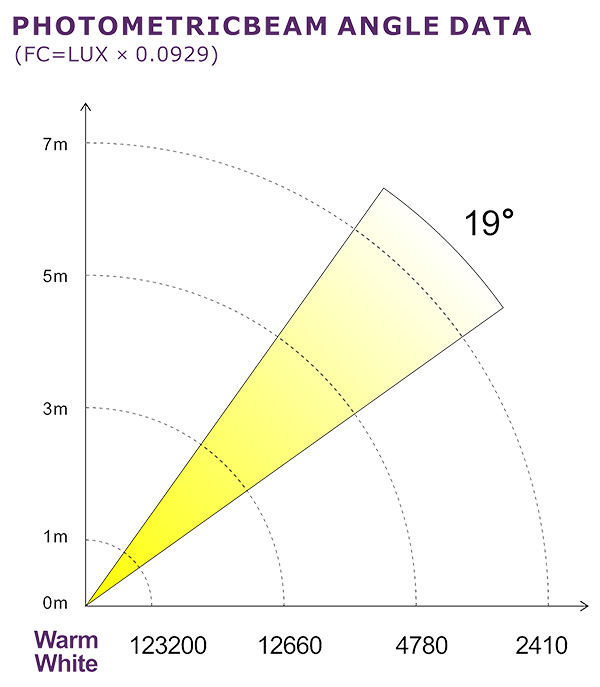

PHOTOMETRIC BEAM ANGLE DATA_34

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*300W/200W/120W COB LEDs
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1)
DMX channels USITT DMX-512
Power Consumption: 160W/260W/390W

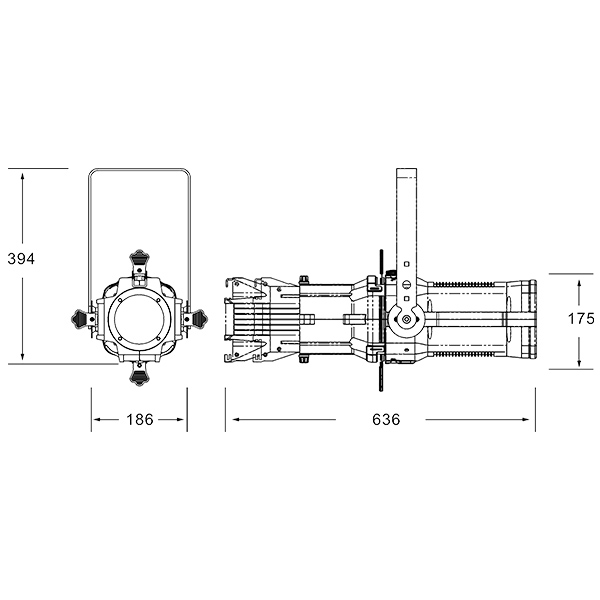

Dimensions:636(D)*186(W)*394(H)mm
Packing Dimensions: 700(D)*300(W)*310(H)mm
Net Weight: 7.16kg
Gross Weight: 8.88kg

SIZE_31
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries

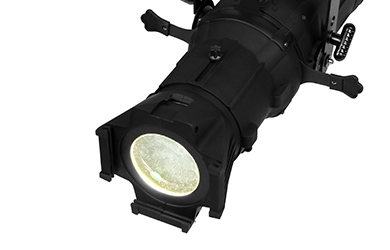

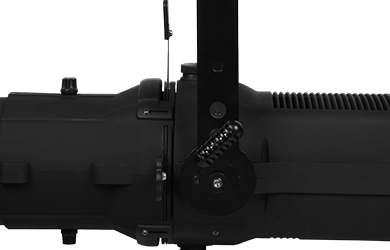

Details

  • a.jpg

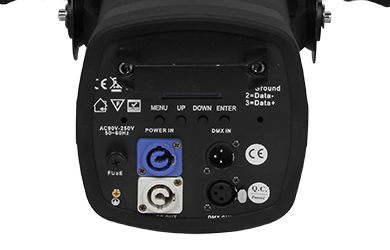

  • c_62
  • b_64

Effect Pictures

  • b_130
  • a_133
  • c_129
  • d_77
  • e_34
  • f_36
  • g
  • h.jpg
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Manual IRIS system

OPTIONAL
code:
QTY: 1PCS



2_1

Gobo Slot

OPTIONAL
code:
QTY: 1PCS



2_1

Color Frame

OPTIONAL
code:
QTY: 1PCS



2_1

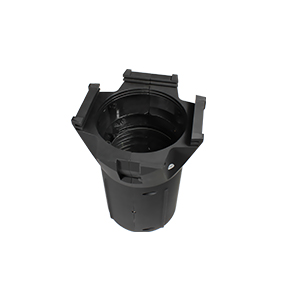

Lens Tube

OPTIONAL
Angle:19°/26°/36°
code:
QTY: 1PCS



2_1

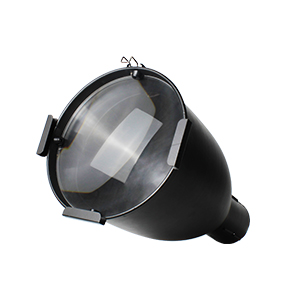

Lens Tube

OPTIONAL
Angle:5°/10°
code:
QTY: 1PCS
