Model: SI-191 PROFILE 300A/200A/150A

This series PROFILE lights is newly launched high definition and ultra quiet LED studio lights integrated into a die-cast aluminum alloy housing. The PROFILE 300A/200A/150A is a professional SPOT lighting system with the lens tube interchangeable, 19°/26°/36°/50°field angles optional for on-site application need, available for following options:

PROFILE 300ACW: 1*300W CW 5600K COB LED
PROFILE 300AWW: 1*300W WW 3200K COB LED
PROFILE 200ACW: 1*200W CW 5600K COB LED
PROFILE 200AWW: 1*200W WW 3200K COB LED
PROFILE 150ACW: 1*150W CW 5600K COB LED
PROFILE 150AWW: 1*150W WW 3200K COB LED
PROFILE 200AF: 1*200W 4-IN-1 COB LED
PROFILE 200AT: 1*200W 3-IN-1 COB LED
PROFILE 200AD: 1*200W 2-IN-1 COB LED (CW+WW)

The fixture features high CRI, different dimming modes, even light coverage with clear edge, manual focus, DMX control, auto control, master/slave control, strobe effect, etc. The PROFILEs feature brightest output and the boldest rendering of the colors you use most, flicker free even at high speed. It delivers projection like natural sunlight. The 2-in-1 version’s temperature and tints could be adjusted to illuminate individual skin tones perfectly, resulting in great look in person and on camera. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 5600K. The RGBW/RGB version are with infinite color mixing system that brings any colors to lighting designers. The PROFILE come with 3 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame, gobo slot and manual iris system are optional.

The PROFILEs are ideal for museums, retail outlets, restaurants, light labs, children's theaters, and other small scale installations where size matters.

  • 1*300W/200W/150W COB LEDs (available for CW/WW/RGBW/RGB/CW+WW)
  • 50,000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥90
  • Optimized high definition optical system for improved photometric performance and field uniformity
  • Projector-quality, high contrast aspheric lens
  • Glass reflector that removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
  • Lens tube interchangeable with filed angles available for 19°/26°/36°/50°
  • Flat and even spot image
  • Smooth manual focus system
  • Beam edge continually adjustable hard-to-soft
  • Housing made by high tension die-cast aluminum alloy
  • Thermally insulated rear handle
  • Thermally insulated knobs and single aluminum handle for installing
  • 3 Metal spot cutting slots
  • Glass/Metal gobo slot as optional
  • Color frame as optional
  • Manual IRIS system as optional
  • 0-100% Smooth and precise linear dimmer
  • Different dimming modes
  • Dimmer frequency adjustable from 2.7K to 6.5K
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1) DMX channels USITT DMX-512
  • DMX512, master-slave, and sound control or auto operation

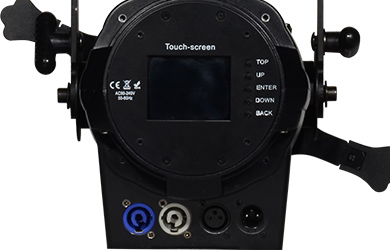

  • High resolution touch TFT display with 4 control buttons
  • Backlight dimming available
  • Dispaly OFF delay time adjustable
  • POWRECON connector IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Low noise fan integrated with copper liquid cooling system
  • Overheat protection temperature adjustable
  • -25-45℃ Max ambient temperature
  • IP20 protection rating
  • 1*Safety attachment point

Input Voltage: AC100-240V 50/60Hz
LED Quantities: 1*300W/200W/150W COB LEDs
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 1/3(CW/WW), 2/5(2-IN-1), 3/7(3-IN-1) and 4/8(4-IN-1) DMX channels
Power Consumption: 390W/260W/200W
Dimensions:560(D)*564(W)*528(H)mm
Packing List: 325(D)*680(W)*330(H)mm
Net Weight: 10.5kg
Gross Weight: 12kg


  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

  • f.jpg
  • a_72
  • d_52

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
