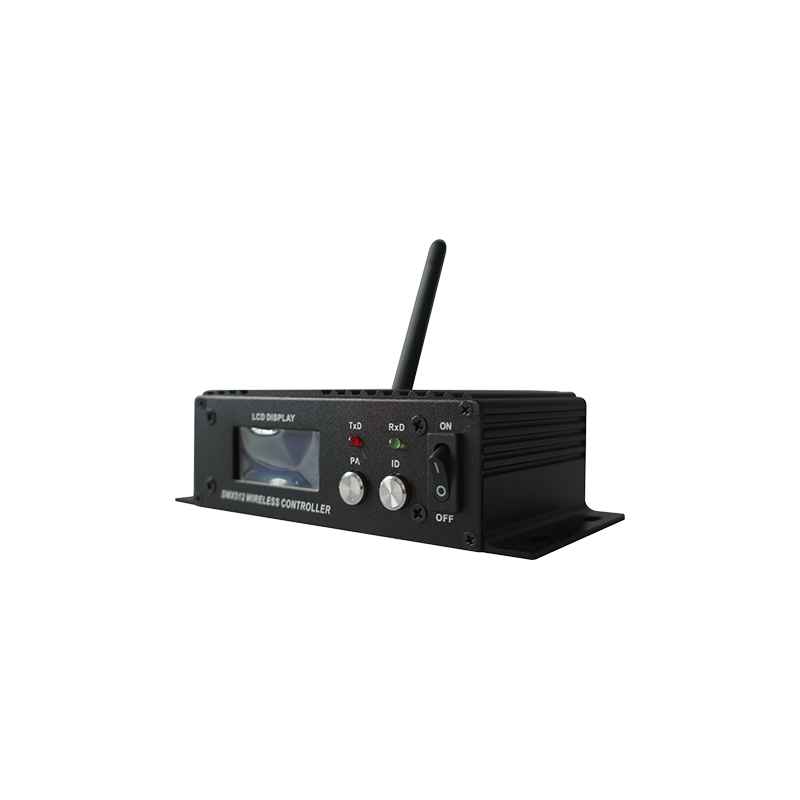

WI-LCD

Model: WI-LCD

DMX512 wireless receiver/transmitter transmit standard DMX512 protocol data by wireless way, which solve lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
WI-LCD adopt global opening 2.4G ISM frequency section without permission limited High effective GFSK modulate,communication design is 126 channels jumping frenquecy,high anti-jamming ability.

2.4G DMX512 wireless receiver/transmitter
2*8 bit LCD to display working condition and parameter
4 level power rate output for option.
126 channels jumping frequency self-moving,self-moving to option non- interfere frequency section, ensuring communication is reliable.
16 groups ID coding for setting,User can use 16 groups individual wireless net with out any interfere each other in the same place.
3PIN male-female connectors

Input Voltage: 9-12VDC 300MA MIN
Communication distances: 400M (visible distance)
Working frequency: 2.4G ISM,126 channels
Max transmitting power rate: 20dBm
Receive sensitive: -94dBm
Dimensions: 75(D)*147(W)*43(H)mm
Packing Dimensions: 155(D)*160(W)*70(H)mm
Net weight: 0.28kg
Gross Weight: 0.38kg
