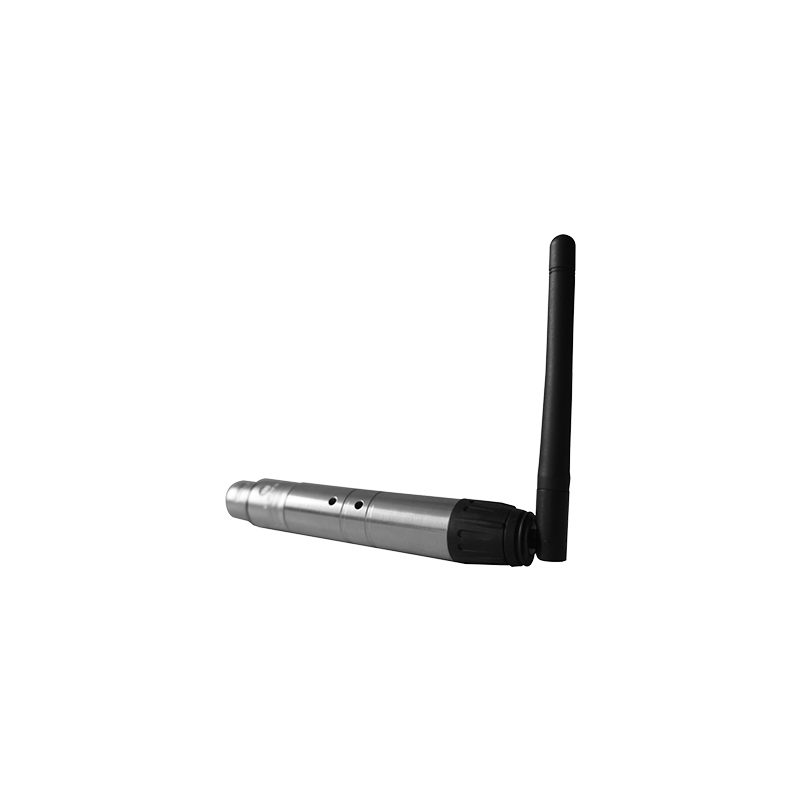

Model: WI-XLR
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And it also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
WI-XLR adopt 2.4G ISM frequency section( global opening section) without permission limited High effective GFSK modulate, communication design ; 126 channels jumping frenquecy automaticly,high anti-jamming ability.
- 2.4G wireless DMX512 R/T
- Tricolor LED display
- 126 channels jumping frenquecy automaticly,high anti-jamming ability. to ensure works reliability
- 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place...
- 3-Pin female connector
Input Voltage: 9-12VDC 300MA MIN
Communication distances: 400M (visible distance)
Working frequency: 2.4G ISM,126 channels
Max transmitting power rate: 20dBm
Receive sensitive: -94dBm
Dimensions: 16(D)*135(W)*96(H)mm
Packing Dimensions: 107(D)*150(W)*55(H)mm
Net weight: 0.26kg
Gross Weight: 0.36kg
-
