• WI-RAD WI-RAD

Model: WI-RAD

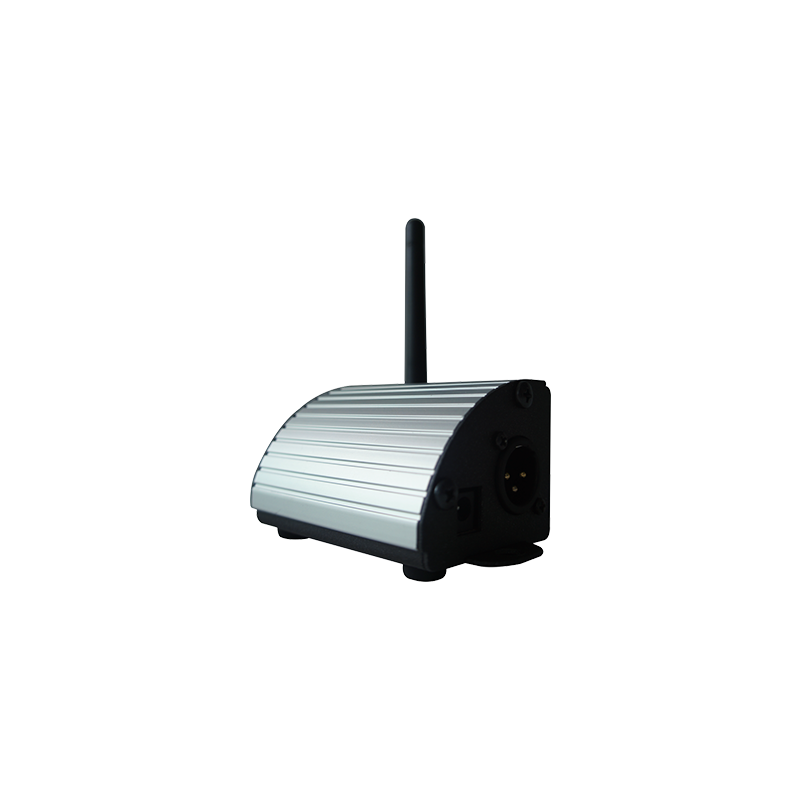

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on,  It get rid of connecting cable limited completely.And it also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
WI-RAD adopt 2.4G ISM frequency section( global opening section) without permission limited. High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly,high anti-jamming ability.


  • 2.4G wireless DMX512 R/T
  • Tricolor LED display
  • 126 channels jumping frenquecy automaticly, high anti-jamming ability. to ensure works reliability
  • 7 groups ID code settable, User can use 7 groups individual wireless net without any interfere each other in the same place...
  • 3pin male connector




Input Voltage:  5VDC 500mA  MIN
Communication distances: 400M (visible distance)
Working frequency:  2.4G  ISM,126  channels
Max transmitting power rate:  20dBm
Receive sensitive:  -94dBm
Dimensions: 75(D)*120(W)*60(H)mm
Packing Dimensions: 100(D)*155(W)*75(H)mm
Net weight: 0.24kg
Gross Weight:  0.30kg
