PIXARC 189T

Model: W-020 PIXARC 189T

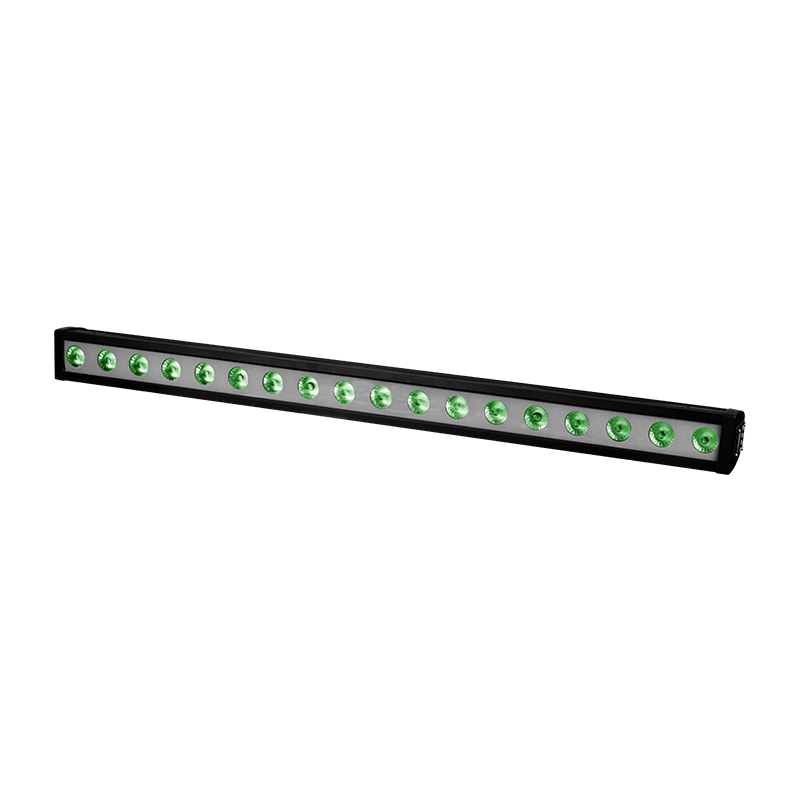

The PIXARC 189T is a multi-purpose IP 65 rated static luminaire with ultimate linear evolution within our architectural range. It features 18*9W tri color high power LEDs as its light source, presenting a stunning smooth and sophisticated profile. It’s perfect for all kinds of indoor and outdoor applications. The fixture is equipped with high performance and high efficiency 25mm PMMA optics that help to give an even optimum light projection for extremely high requirement wall washing. The optics are optional for 15°, 25° and 55° beam angles.

The fixtures is capable of offering pixel mapping advantage. In this way, the lighting designer could program whatever effects they could imagine with color changing and color chasing. The brightness is controlled by the precise driving of the LEDs so that it delivers accurate light output management. The PIXARC 183T is controllable via DMX, auto operation or sound control.

The PIXARC 189T is the ideal fixture for all architectural illumination like mansions, theaters, casinos, gardens, bridges, shopping centers, theme parks, and entertainment plazas, as well as show venues, TV studios or exhibition applications.

IP_16

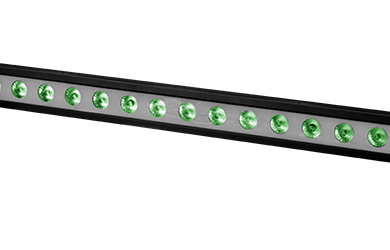

18*9W tri color LEDs (RGB in one)
16.7 Millions of colors mixable
50,000 hours life span and lower power consumption
Stunning light output with high intensity and high color rendering index
0-100% Smooth linear electronic dimmer
Flicker free control capability
25T/s high speed LED shutter/strobe effect with variable speed
Dynamic macro effect with variable speed
12 Internal color running programs, available for strobe effect together
13 DIY internal color running programs with background.foreground colors changeable, available for strobe effect together
2/3/5/6/8/9/18/54/56 DMX channel modes
DMX512, master-slave and sound activated controllable or auto operation
Rugged, die cast aluminum alloy, compact and light weight
Noise free natural cooling system
Front window with tempered glass

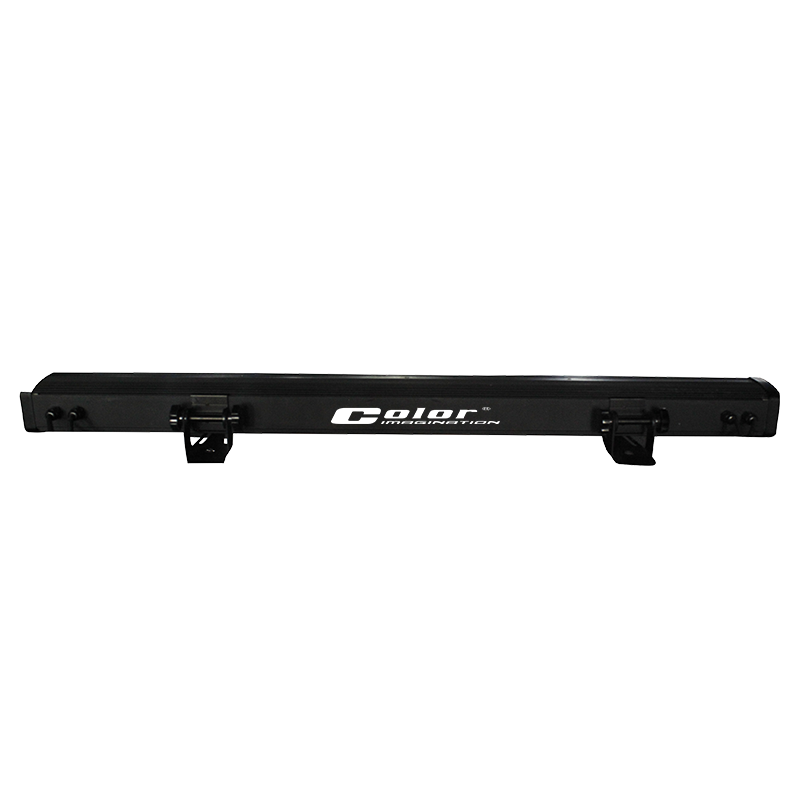

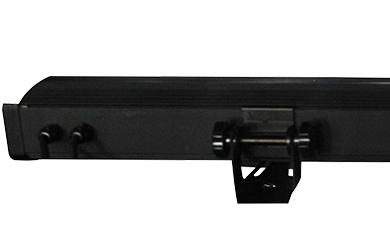

2 Multi-positioning brackets for floor projection or hanging projection
Manual TILT angle adjustment

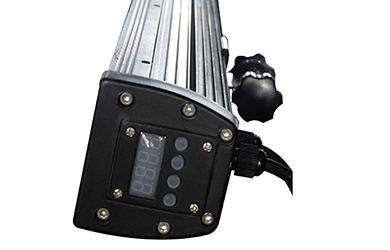

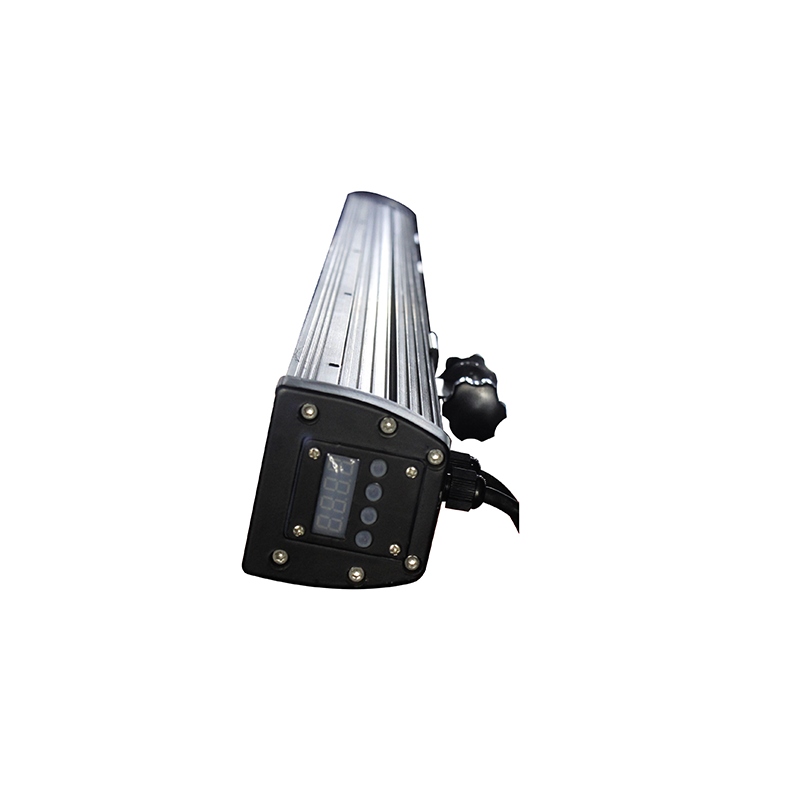

4-Button red LED display
IP56 rated lockable power connectors IN/OUT
IP65 rated lockable 3-pin XLR DMX connectors IN/OUT
-20℃ to 45℃ operation temperature
IP65 protection rating

Input Voltage: AC90-260V 50-60Hz
LED Quantities: 18*9W 3-in-1 LEDs (RGB)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 2/3/5/6/8/9/18/54/56
Power Consumption: 180W

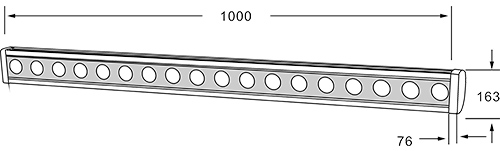

Dimensions: 76(D)*1000(W)*163(H)mm
Packing Dimensions: 150(D)*1110(W)*135(H)mm
Net Weight: 3.76kg
Gross Weight: 4kg

Promotional brochures
Manuals

DMX Channels

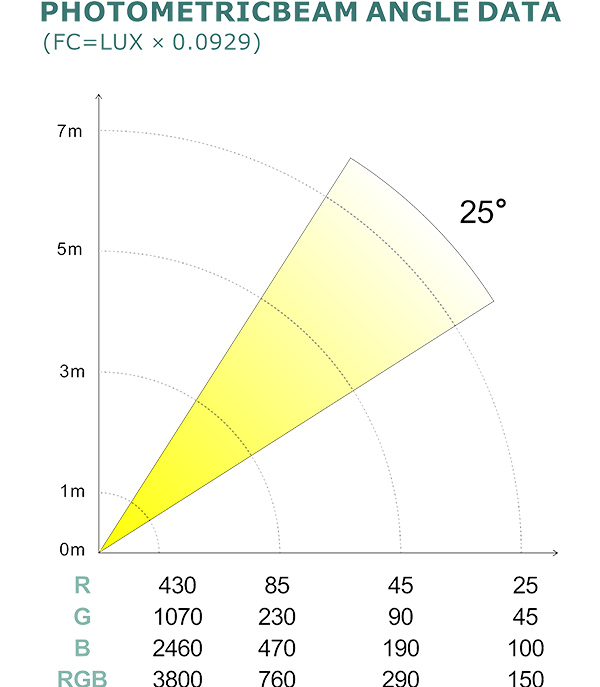

Photometrics
