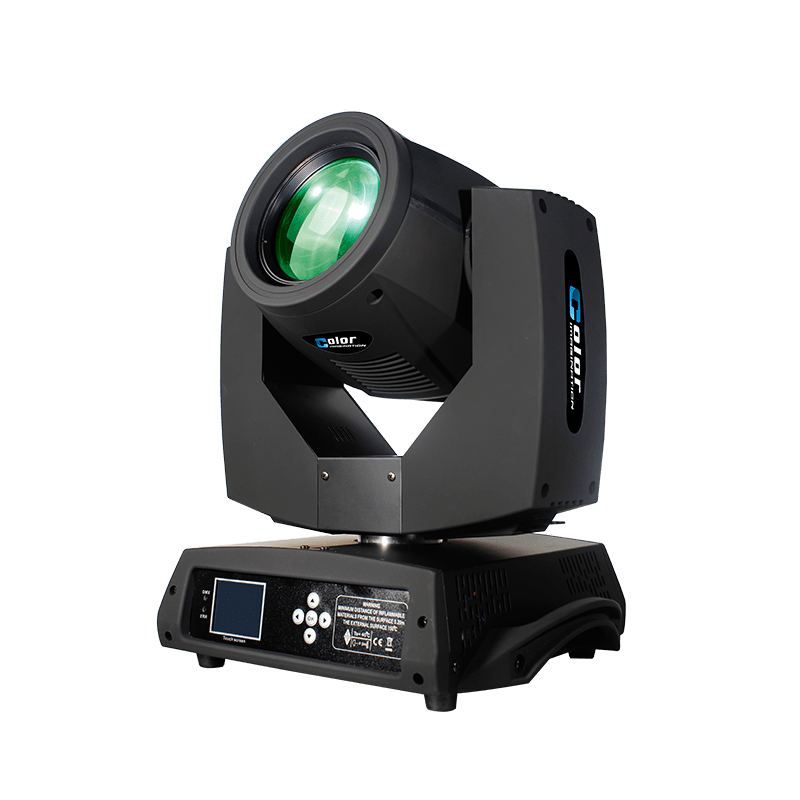

BEAM 230

Model: SI-069A BEAM 230

The BEAM 230 is a BEAM+WASH moving head with very high light output and even coverage field. The fixture is integrated with a full complement of professional characteristics including static gobo wheel, color wheel, prism, frost filter, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer, etc.

The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving heads feature ultra sharp beam effect with low consumption realized by the powerful 230W lamp.

It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.

Light Source
Source: 230W lamp
Flicker free operation for broadcast TV and FILM
Life Span: 2000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.
Optics
A set of high resolution and precise optics
Anti-reflection front lens
3.8°Smooth and quiet linear motorized zoom
2.5M-15M electric focus
Movement
PAN movement: 540° (8/16 bit)
PAN movement: 270° (8/16 bit)
Fast, quiet, smooth and precise 2-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible
Color System
1 Color wheel with 14 dichroic colors plus open (half-way color mode available)
Variable direction rainbow effect with speed adjustable
Gobo System
1 Static gobo wheel with 17 gobos plus open and gobo shaking
Prism System
8-Facet prism with variable speed and direction
Strobe Effect
20T/sec high speed shutter/strobe effect with variable speed
