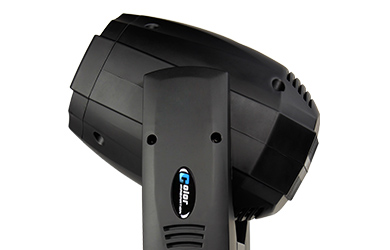

MINISPOT 150

Model: SI-109 MINISPOT 150

Smaller---very compact in size and weight
Better---very high in output

The MINISPOT 150 features a 7500K 150W LED with high intensity and efficiency. It produces very high light output, through a specific 13.2° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.

IP_19

Light Source
Source: 150W White LED engine
Color Temperature: 7500K
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
Optics
A set of high resolution and precise optics
13.2°Projection angle
2.5M-15M Linear electric focus
Movement
PAN movement: 540°630°/360°(8/16 bit)
PAN movement: 270°/180°/90°(8/16 bit)
Fast, quiet, smooth and precise 2-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
Color System
1 Color wheel with 7 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable
Gobo System
1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing
Gobo size 23.9mm (external)/15mm (inner)
1 Static gobo wheel with 7 gobos plus open with dithering effect
Gobo overlay (gobo morphing)
Prism System
3-Facet prism with variable speed and direction

Strobe Effect
25T/sec high speed LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
Dimming System
0-100% Smooth linear LED dimming
Control System
12/14/16 DMX channels USITT DMX-512
DMX512, master-slave, Sound activated or auto operation
DMX recorder and edit function integrated
Shielded input signal protection for stable signal without interference
3-Pin XLR DMX connectors IN/OUT
Preset Program
Auto programs
Display System
High resolution LCD display
4 Control buttons
Display OFF in 60 seconds
DMX signal monitoring indicator
Cooling System
Advanced cooling system integrated with aluminum
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management (output decreased when over heat)
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with power switch and fuse
225W Power consumption

Housing
High intension moulded fire proof ABS PC
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black (white optional)
Installation
1*1/4 turn fastening Omega Clamps
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 10.38kg
G.W.: 12.56kg
Dimensions
Product Dimensions:183(D)*298(W)*410(H)mm
Packing Dimensions: 280(D)*380(W)*505(H)mm

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*150W white LED
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 14/12/16 DMX channels USITT DMX-512
Power Consumption: 215W
Dimensions:183(D)*298(W)*410(H)mm
Packing Dimensions:380(D)*280(W)*505(H)mm
Net Weight: 10.38kg
Gross Weight: 12.56kg
