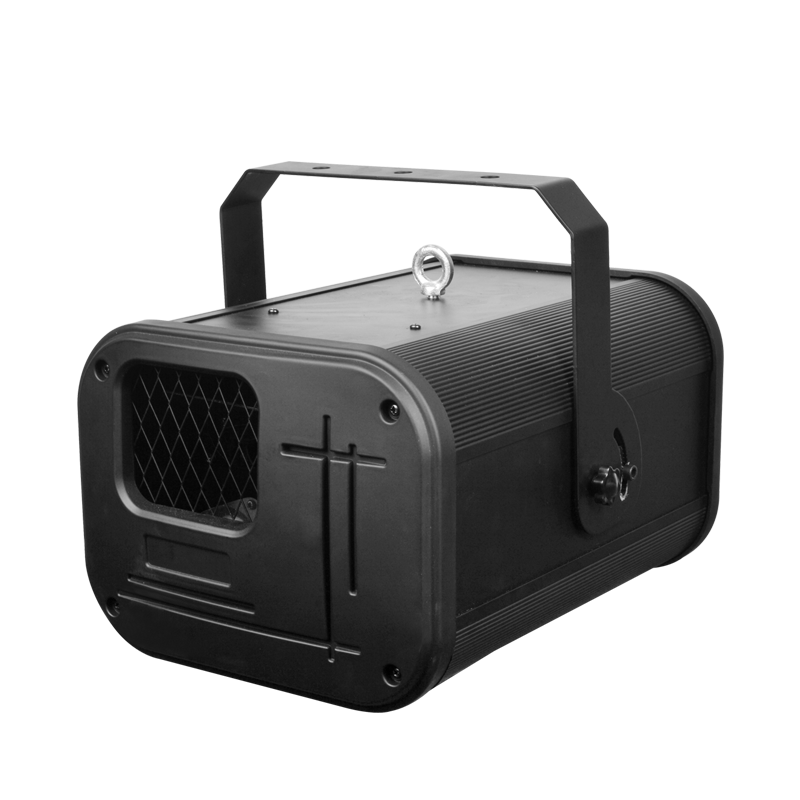

RACER 200

Model: SI-105 RACER 200

The RACER 200 is a new technology hybrid effects projector, providing powerful and precise BEAM, SCANNER and LASER simulator effects with motorized FOCUS. It features a PHILIP 5R lamp with 2000 hours life span. The functions include a X / Y scan and Z rotation mirror system, static gobo wheel, color wheel, 3-Facet prism, shutter, strobe, smooth linear dimmer, etc. The RACER 200 are applicable for large scale live concerts, TV productions, nightclubs, etc.

A PHILIPS 189W Lamp
2000 Hours lamp life span
No need for adjustment of reflector or lamp
Anti-reflection lenses
Electronic ballast

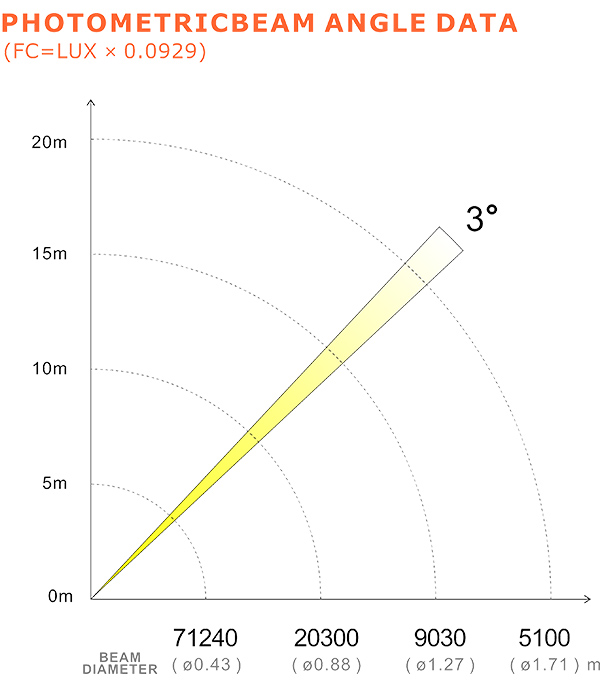

3°projection beam angle
X / Y scan and Z rotation mirror system
Beam, scanner and laser simulator effects
Liquid sky, laser wave and cone effects at variable speed

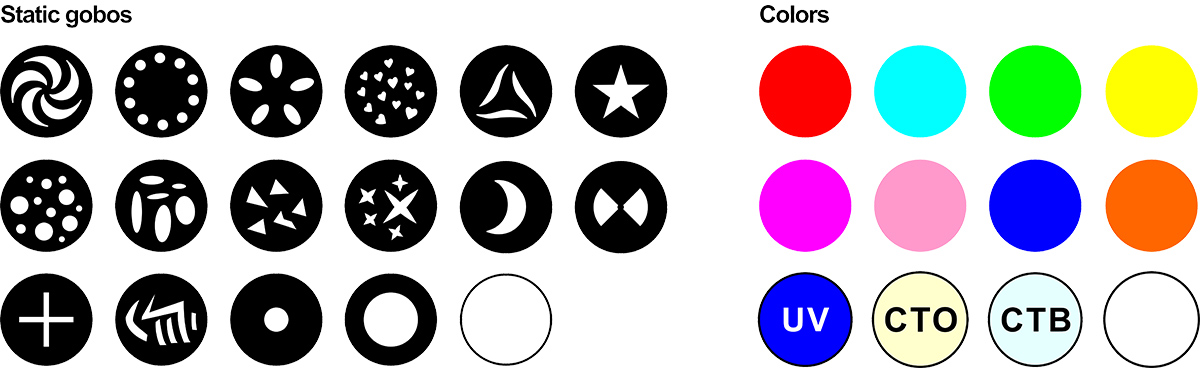

Static gobo wheel with 16 gobos plus open, including beam reduction gobos
Color wheel with total 11dichroic colors plus open
Variable direction rainbow effect with speed adjustable
3-Facet rotating prism with speed adjustable and variable direction
Macro-function for gobos/prism combinations
4 Built-in macro effects
8 Internal running programs
Motor driven focus from near to far(2.5m-30m)
Smooth and precise electronic dimming system
Variable speed shutter/strobe effect
Preset variable/random strobe and dimming pulse effects
20/22 DMX channels USITT DMX-512
DMX, stand-alone, master/slave, sound activated mode
DMX recorder and edit function integrated

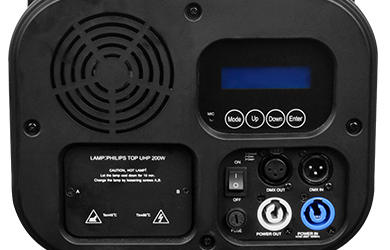

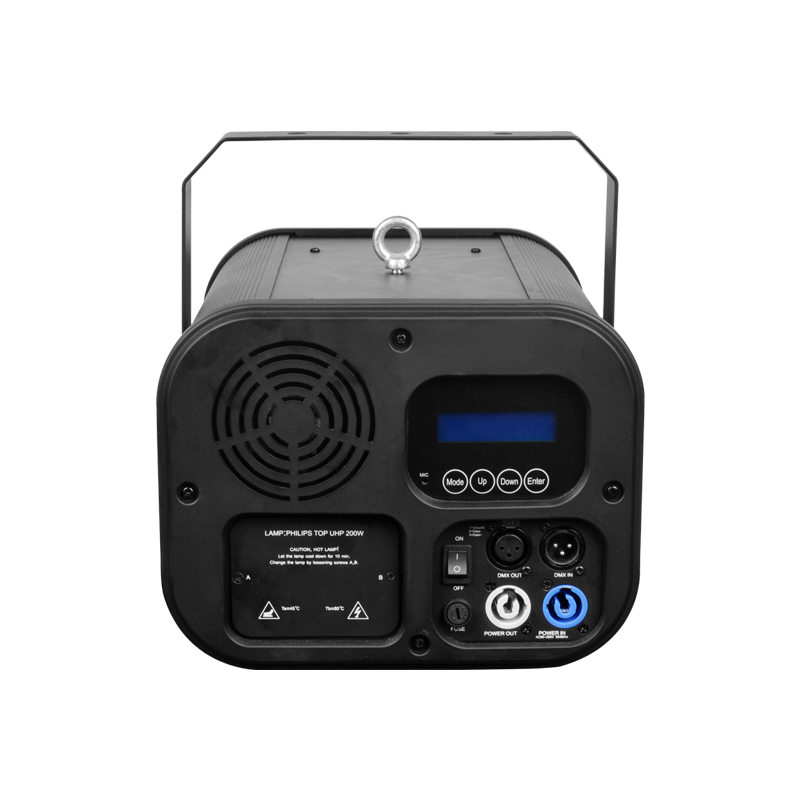

Blue LCD display
POWRECON connector IN/OUT
3-Pin or 5-pin XLR connectors IN/OUT
High efficiency fan cooling system
Constant temperature readout / management function
DB rating @ 1M = 54,18db

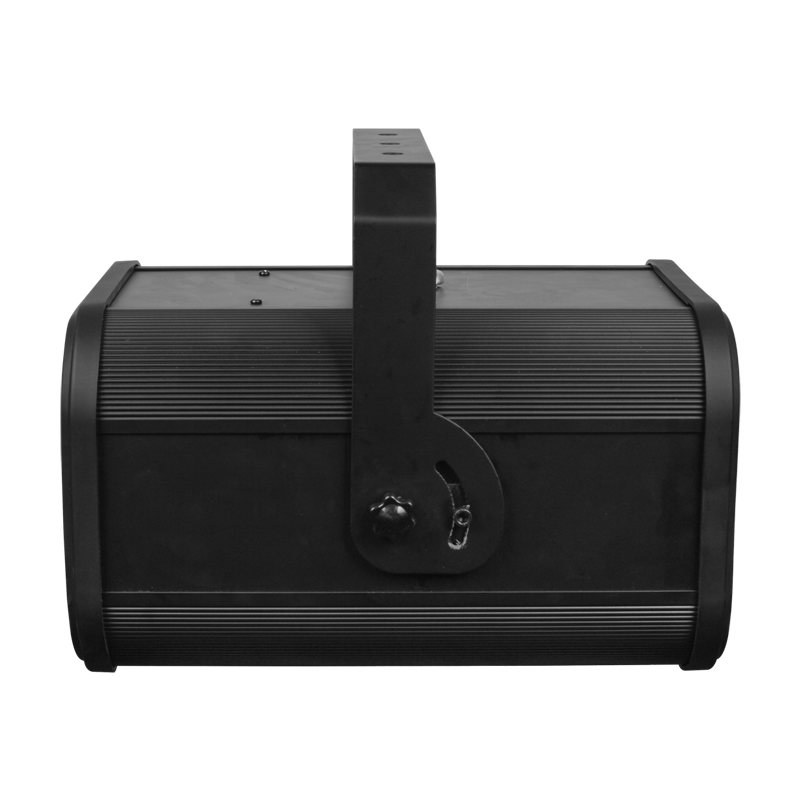

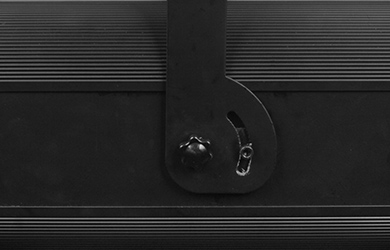

Adjustable mounting bracket for installation
-20°C ~ 45°C max ambient temperature
1 *Safety attachment point

Input Voltage: AC90-260V 50/60Hz
Light Source: 1* PHILIPS 189W lamp
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 20/22 DMX channels USITT DMX-512
Power Consumption: 270W

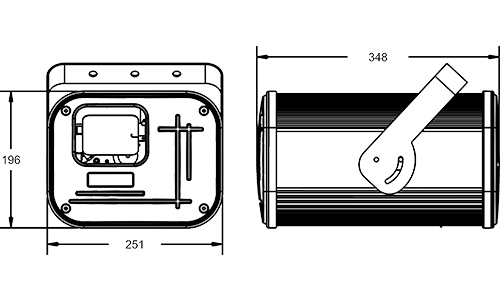

Dimensions: 348(D)*251(W)*196(H)mm
Packing Dimensions: 310(D)*360(W)*320(H)mm
Net Weight: 8.5kg
Gross Weight: 10kg
