PIXELPANEL 363AH

Model: SI-167 PIXELPANEL 363AH

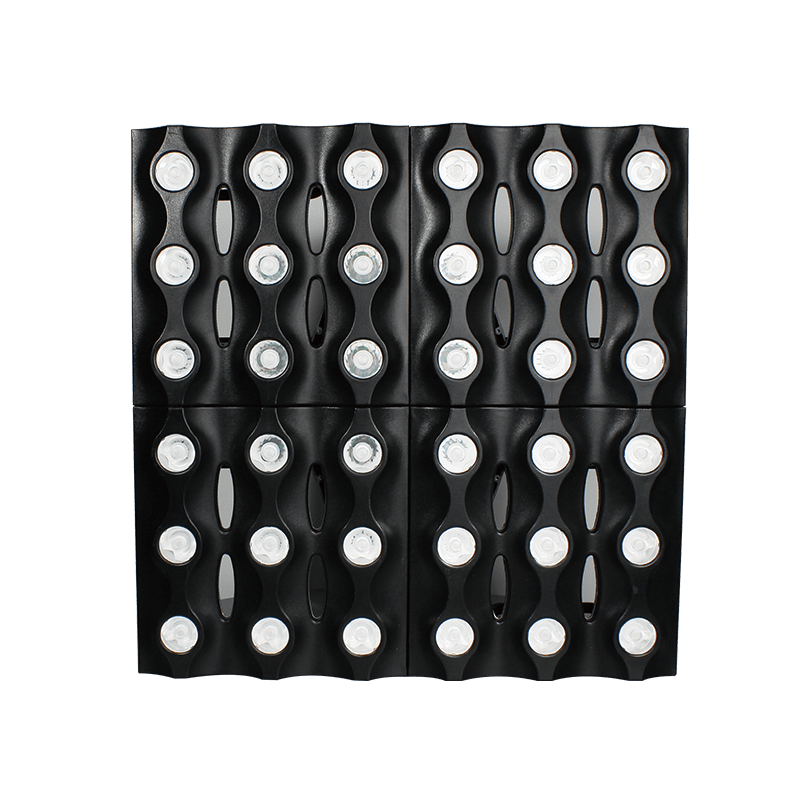

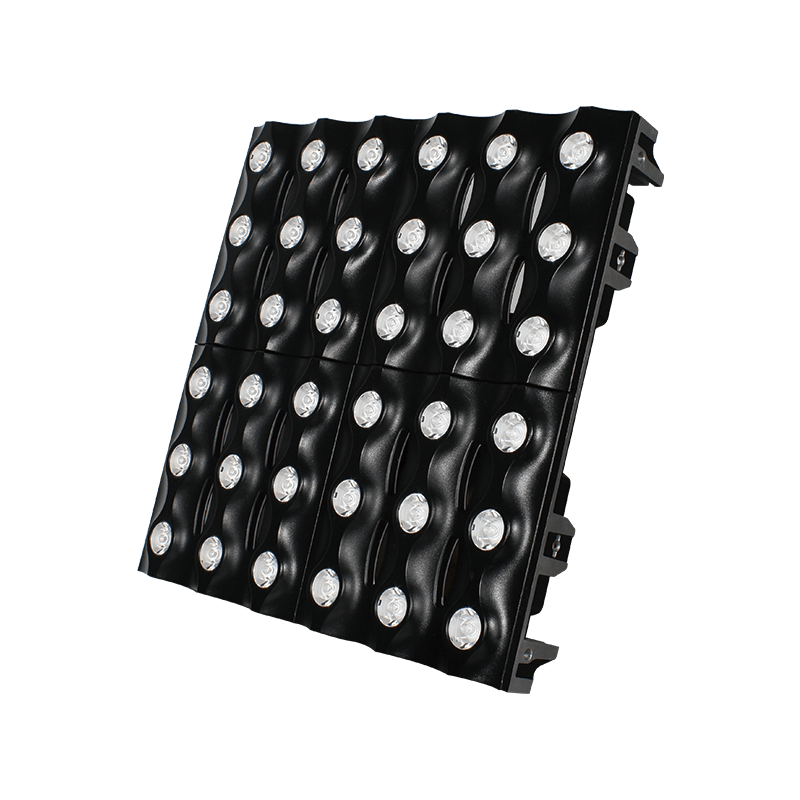

What could you imagine in color? Color Imagination will give you a definition through a brand new light fixture, the flicker-free PIXELPANEL 363AH, state-of-the-art matrix panel producing attractive narrow AMBER golden beam effect (similar to halogen). The fixture features high brightness 36*3W CREE XP-E 2800K amber LEDs (6*6) integrated in high efficiency 7°optic lens nicely assembled in the die-cast aluminum housing. The PIXELPANEL 363AH is available for 2 DMX channel modes(5CH/36CH). Each LED are controllable individually in 36CH mode that is capable to create different patterns. It’s available for stand alone mode with internal signs and patterns with running effects with speed and step control (2 auto modes), DMX control or Sound control (2 sound modes). It’s with LCD display with 4 control buttons. The PIXELPANEL is designed with professional and safe locking system to combine numbers of panels together for professional programming.

The PIXELPANEL 363AH is ideal for large scale live concerts, TV productions, studio, theatre, DJ shows, clubs, etc.

36*3W CREE XP-E 2800K amber LEDs
50,000H life span with high brightness and lower power consumption
Each LED controllable individually in pro mode
Flicker-free control

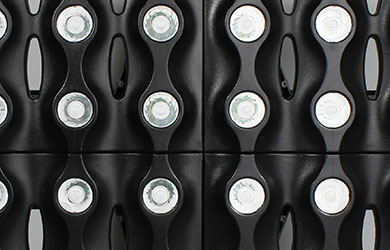

Optimized high efficiency 6° optic lens
12° Field angle
Remarkable golden amber beam effect with even light coverage
20 Different internal patterns with speed and step controllable
26 Letters, 10 digits and special signs by auto mode or DMX mode
Different internal running programs
0-100% Linear LED dimmer
30T/S high speed LED strobe effect, pulse strobe effect and random strobe effect from slow to fast
DMX512，master-slave，sound activated(2 sound modes) or auto operation (2 auto modes)
5/36 DMX channels USITT DMX-512

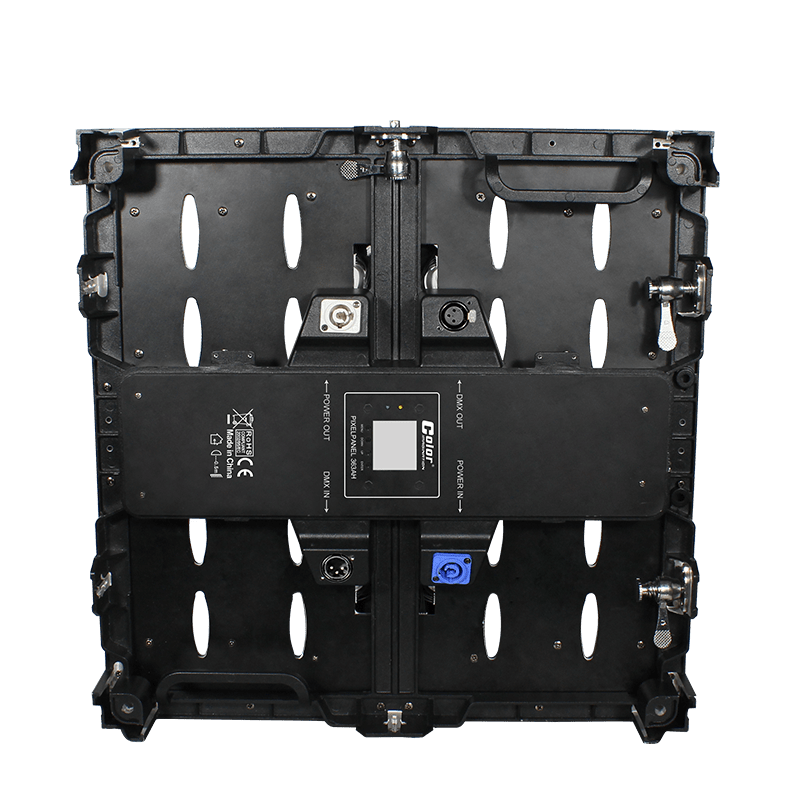

High definition reversible LCD display with 4 control buttons

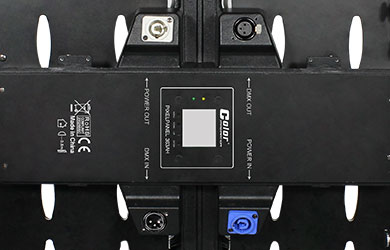

POWERCON connectors IN/OUT
3-Pin XLR connectors IN/OUT
High efficiency low noise heat sink system

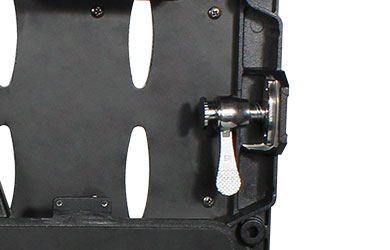

Professional and safe locking system for reliable assembly of large displays
Stand alone mounting bracket available
-45°-+45° ambient application temperature
IP20 protection rating

Input Voltage：AC90-260V 50/60Hz
LED Quantities：36*3W CREE XP-E 2800K LEDs
Control Signal：DMX512，master-slave，sound activated，auto operation or computer control
Control Channel：5/36 DMX channels USITT DMX-512
Power Consumption：130W

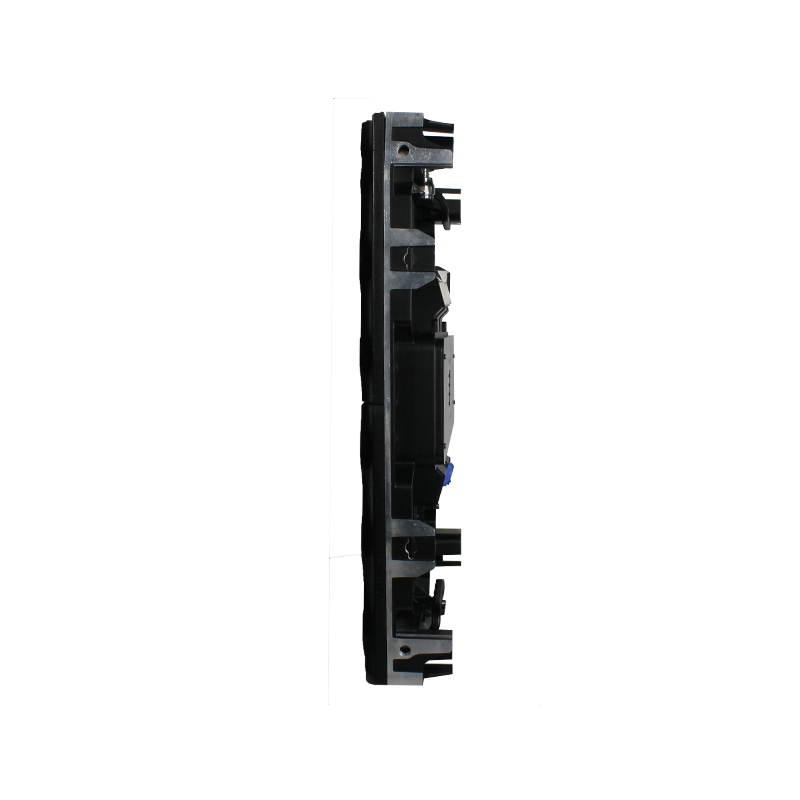

Product Dimensions：90(D)*500(W)*500(H)mm
Packing Dimensions：190(D)*650(W)*650(H)mm
Net Weight：7.5KG
Gross Weight：9KG
