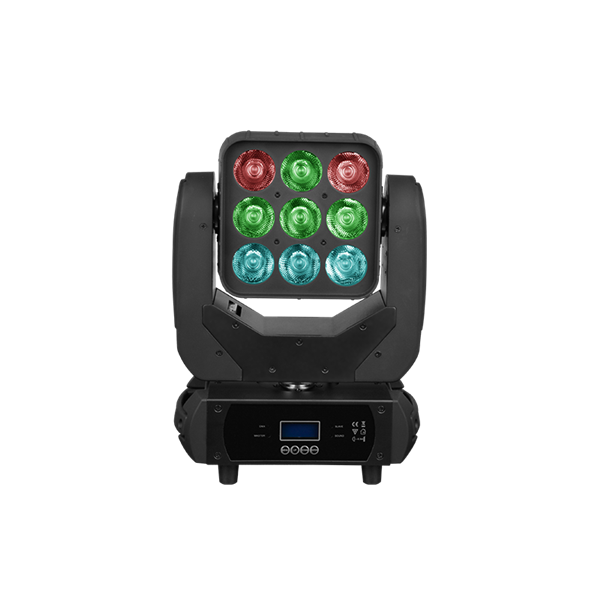

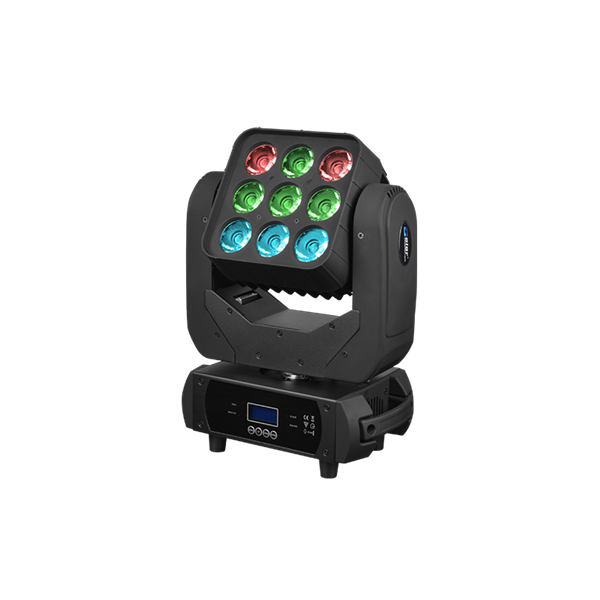

MADPANEL 910F

Model: SI-101 MADPANEL 910F

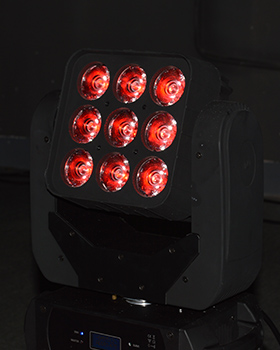

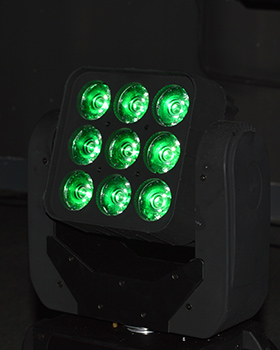

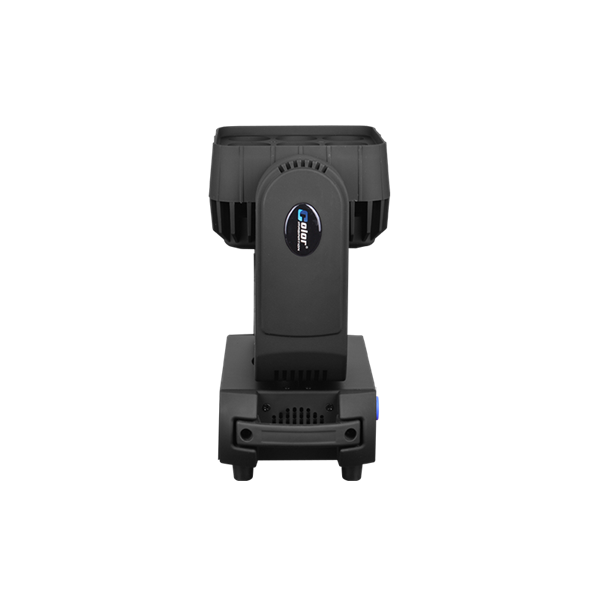

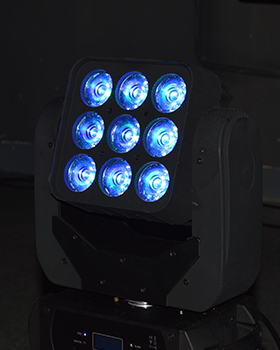

The MADPANEL 910F is a very compact and light weight matrix LED moving head panel with infinite (continuous) PAN/TILT movement and 9*10W CREE XLamp XML 4-in-1 LEDs fitted with 5° high efficiency optics, available for individual LED (color) control. It allows for a wide range of diverse visual effects with remarkable color mixing advantage. The fixture features really high lumens for 110W power consumption. It could be controllable through DMX 512 protocol (or optional specific computer control software through the ART-NET interface, RJ45). The moving is capable of creating amazing novel effects by professional programming The MADPANEL 910F could be used in large scale live concerts, TV studios, video productions, road shows, mobile DJ, clubs, disco, etc.

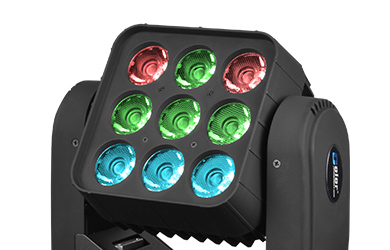

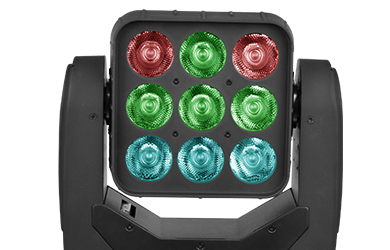

9PCS CREE XLamp XML 4-IN-1 10W LEDs
50,000 hours lifespan and low power consumption
9 Pixels (each LED is a pixel), controllable individually
Outstanding sharp BEAM effect and remarkable wash effect with pure color mixing
Specific high efficiency 5° optic system

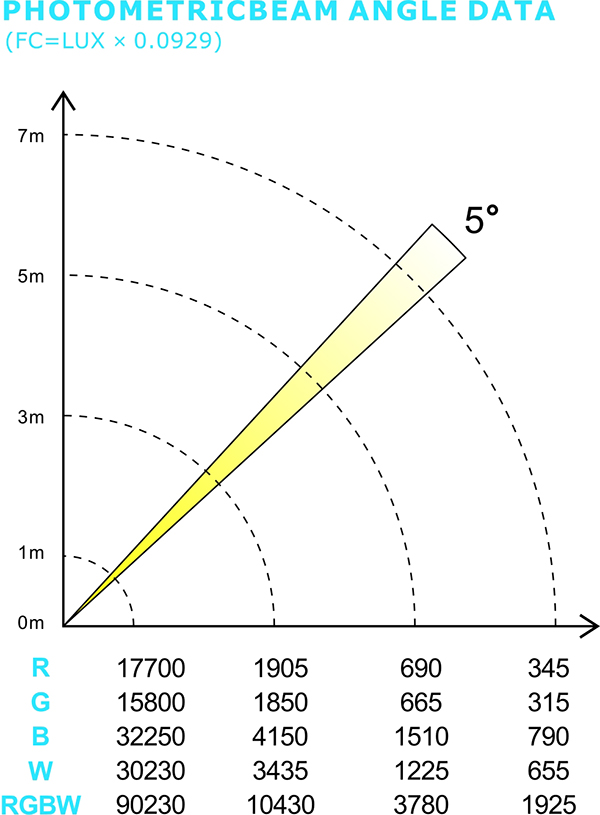

High light output, 3780LUX@5M at full RGBW
Flicker free control
Smooth, fast and precise infinite (continuous) PAN/TILT movement
Scan position memory, auto reposition after unexpected movement
High speed strobe effect with 1-25 flashes per second
0-100% smooth linear LED dimmer
Amazing visual effect by pro control
Internal program available
Default pixel macros effect for easy performance
15/21/49 DMX Channels USITT DMX-512
DMX512, master-slave and sound activated controllable or auto operation
Specific computer control software as optional with ART-NET interface, RJ45

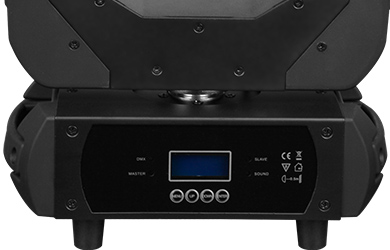

High definition blue LCD display

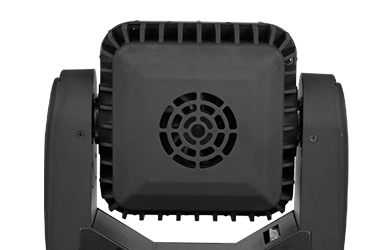

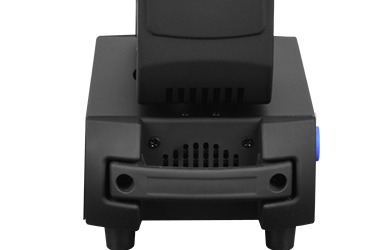

Efficient low noise fan cooling system

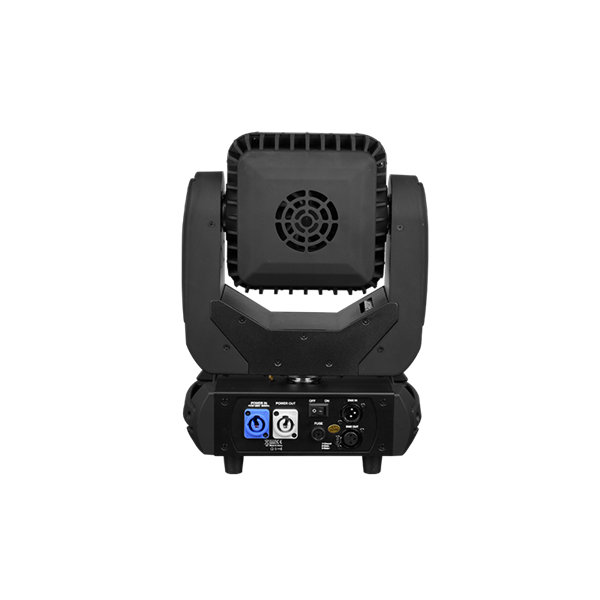

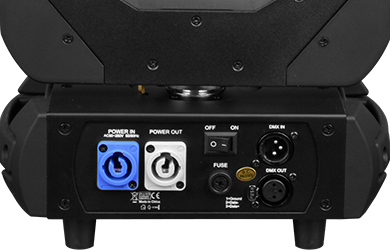

POWERCON IN/OUT
3-Pin XLR connectors IN/OUT
Constant temperature readout and management function
IP20 protection rating
-20°C ~ 45°C ambient temperature
1 Specific hanging system
1* Safety attachment point

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 9PCS CREE XLamp XML 4-IN-1 10W LEDs
Control Signal: DMX512,master-slave and sound activated or auto operation
Control Channel: 15/21/49 DMX Channels USITT DMX-512
Power Consumption: 110W

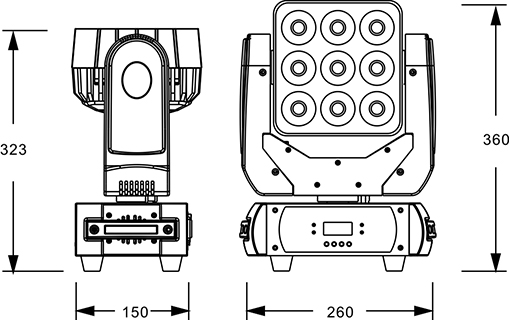

Dimensions: 150(D)*260(W)*360(H)mm
Packing Dimensions: 285(D)*400(W)*315(H)mm
Net Weight: 6.1kg
Gross Weight: 7.7kg
