Model: SI-297 SMARTBEAM 150
The SMARTBEAM 150 is a new stylish 150W LED beam moving head basing on “smaller and better” design philosophy. It’s our brightest, most economic 150W spot into a new housing. The fixture features a 7500K 150W LED with high intensity and efficiency through a set of high resolution 2° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including static gobo wheel, color wheel, a 8-facet prism, linear electronic focus, frost, 0-100% linear LED dimmer, variable speed shutter/strobe.
The SMARTBEAM 150 supports DMX, RDM (Remote Device Management), Art-Net protocol (optional), wireless system built-in (optional).
The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the SMARTBEAM 150 achieves more than just a striking look.
The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.
- Light Source
- Source: 150W White LED engine
- Color Temperature: 7500K
- Flicker free operation for broadcast TV and FILM
- Life Span: 50000H
- The life span may vary depending on several following factors but not limited to:
-
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
- Optics
- A set of high resolution and precise optics
- 2°Projection angle
-
Linear electric focus
- Movement
- PAN movement: 540°(8/16 bit))
- PAN movement: 270°(8/16 bit)
- Fast, quiet, smooth and precise 2-Phase motors
- Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
- Scan position memory, auto reposition after unexpected movement
- Color System
- 1 Color wheel with 12 dichroic colors plus open (half color mode available)
-
Variable direction rainbow effect with speed adjustable
- Gobo System
- 1 Static gobo wheel with 10 gobos plus open with dithering effect
- Prism System
- 8-Facet prism with variable speed and direction
- Prism indexing
- Strobe Effect
- 25T/sec high speed LED shutter/strobe effect with variable speed
-
Preset variable/random strobe and dimming pulse effect
- Dimming System
-
0-100% Smooth linear LED dimming
- Control System
- 10/11/13 DMX channels USITT DMX-512
- DMX512, master-slave, or auto operation
- DMX recorder and edit function integrated
- RDM available (Remote Device Management)
- Art-NET (optional)
- Wireless receiver system built-in (optional)
- Shielded input signal protection for stable signal without interference
- RJ45 etherCON IN/OUT (optional as Art-NET)
-
3-Pin XLR DMX connectors IN/OUT
- Preset Program
-
Auto programs
- Display System
- 1.8" TFT LCD display
- 5 Control buttons
- 180°Reversible for LCD display
- Display OFF
-
DMX signal monitoring indicator
- Cooling System
- Advanced cooling system integrated with aluminum
- Efficient low noise self adjusting fan cooling system
- Constant temperature readout and management function
-
Over temperature protection management
- Power Supply
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- PowerCON IN/ OUT with power switch and fuse
- 215W Power consumption
- Housing
- High intension moulded fire proof ABS PC
- Skeleton made of aluminum and steel metal plates
- Two side handles on base
- Exterior finish: Black (white optional)
- Installation
- 1*1/4 turn fastening Omega Clamps
- 1*Safety attachment point
- Operating Condition
- Operating positions: all (device on floor or fixed to a support)
- -25℃ to 45℃ ambient temperature
- IP20 protection rating
- Compliance
- CE
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- Weight
- N.W.: 7.9kg
- G.W.: 9.6kg

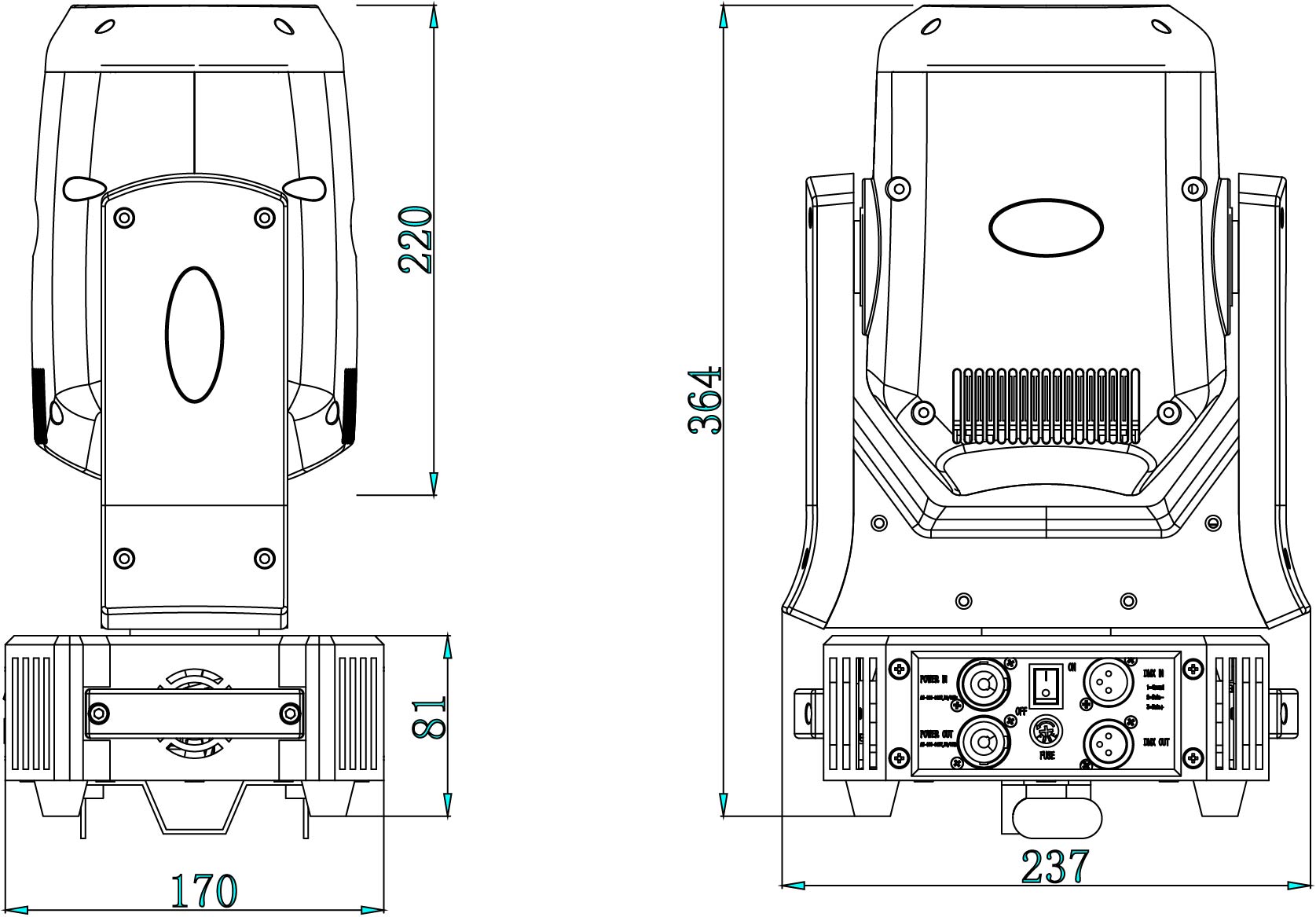

- Dimensions
- Product Dimensions: 170(D)*226(W)*364(H)mm
- Packing Dimensions: 280(D)*295(W)*385(H)mm
