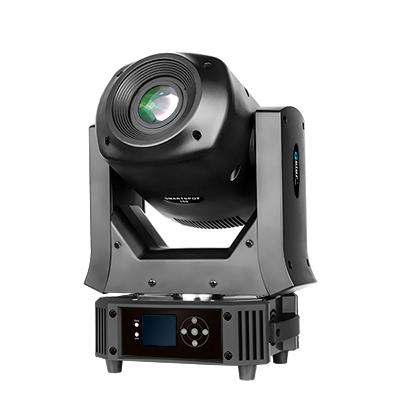

SMARTSPOT 150

Model: SI-293 SMARTSPOT 150

Compact, Lightweight, Stylish, High Output

The SMARTSPOT 150 is a new stylish 150W LED spot moving head basing on “smaller and better” design philosophy. It’s our brightest, most economic 150W spot into a new housing. The fixture features a 7500K 150W LED with high intensity and efficiency through a set of high resolution 15° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

The SMARTSPOT 150 supports DMX, RDM (Remote Device Management), Art-Net protocol (optional), wireless system built-in (optional).

The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the SMARTSPOT 150 achieves more than just a striking look.

The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.

Light Source
Source: 150W White LED engine
Color Temperature: 7500K
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
Flicker free operation for broadcast TV and FILM
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
Optics
A set of high resolution and precise optics
15°Projection angle
Linear electric focus
Movement
PAN movement: 540°(8/16 bit))
PAN movement: 270°(8/16 bit)
Fast, quiet, smooth and precise 2-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Color System
1 Color wheel with 7 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable
Gobo System
1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing
Gobo size 22mm (external)/16mm (inner)
1 Static gobo wheel with 7 gobos plus open with dithering effect
Gobo overlay (gobo morphing)
